  • LaVoce MAF082.00 8" Professional Midrange Driver 8 Ohm

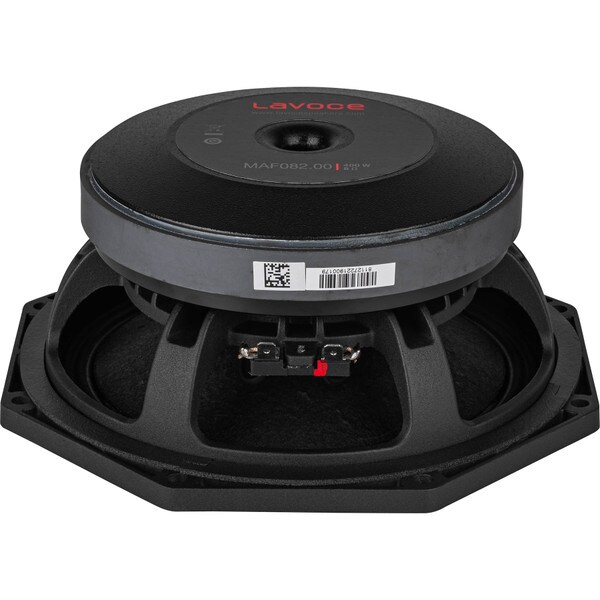

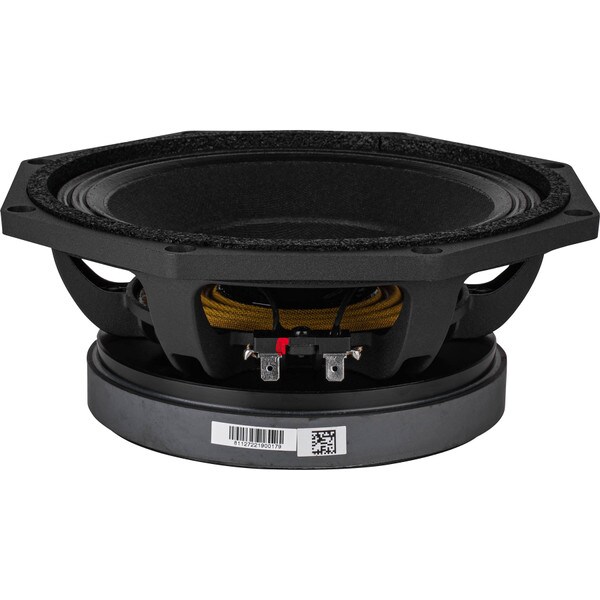

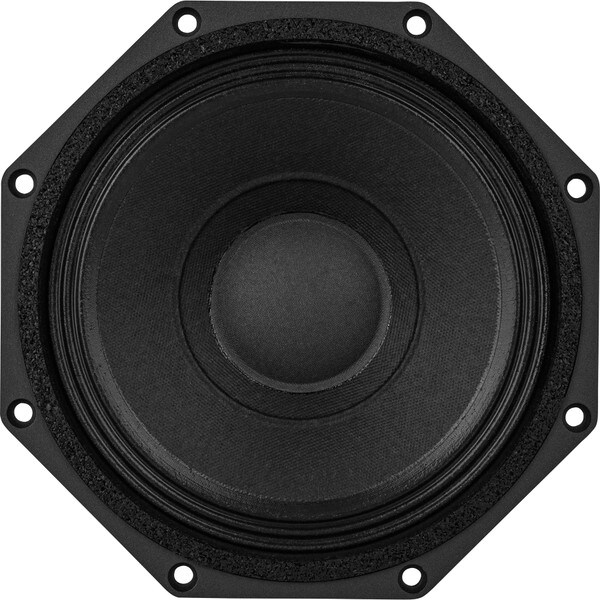

LaVoce MAF082.00 8" Professional Midrange Driver 8 Ohm

LavocePart # 293-748
Model: MAF082.00
Read 1 Review or
LaVoce's MAF082.00 8" professional midrange driver will provide smooth response and low distortion making it perfect for use in high efficiency 3-way speakers and even stackable line array designs. With a copper cap lowering inductance, this driver has smooth response up to 5,000 Hz even at 45 degrees off axis.

Key Features

  • 98.5 dB sensitivity with 200 watt RMS power handling for excellent output capability
  • Low distortion thanks to the optimized suspension and copper cap
  • Heavy duty cast aluminum basket provides ample cooling
  • Waterproof treated paper cone for natural response
Your Price: $109.00
+ FREE SHIPPING
MSRP: $162.69
Save $53.69 (33%)
Bulk Pricing
6 In Stock
Get Notified When Available

We'll send you an email when LaVoce MAF082.00 8" Professional Midrange Driver 8 Ohm is back in stock or available for preorder.

Order in the next 8 hr 30 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce MAF082.00 8" Professional Midrange Driver 8 Ohm

At 98.5 dB efficient, the MAF082.00 8" midrange driver from LaVoce has the ability to keep up with any high output speaker systems. This rugged driver will deliver natural frequency response on and off-axis through the extent of the vocal range. The powerful ferrite motor assembly is not susceptible to heat, so distortion and power compression is kept to a minimum even when driven to it's limit for extended periods. For even lower distortion, the vented pole piece includes a copper cap which also helps to extend the high frequency response. In addition, the naturally damped paper cone includes a waterproof coating allowing the MAF082.00 to be used in situations where it may be exposed to moisture.

Product Details

BrandLavoce
ModelMAF082.00
Part Number293-748
UPC848864061481
Unit of MeasureEach
Weight10.4

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.2
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8Ω
Frequency Response90 to 5,000Hz
Sensitivity98.5dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)77Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)0.52mH
Mechanical Q (Qms)5.8
Electromagnetic Q (Qes)0.19
Total Q (Qts)0.18
Compliance Equivalent Volume (Vas)0.45ft³
Mechanical Compliance of Suspension (Cms)0.2mm/N
BL Product (BL)17.36T·m
Diaphragm Mass Inc. Airload (Mms)20.4g
Maximum Linear Excursion (Xmax)2.6mm
Surface Area of Cone (Sd)214cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.25"
Baffle Cutout Diameter7.31"
Depth6.1"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume0.5ft³
Vented F375.1Hz
