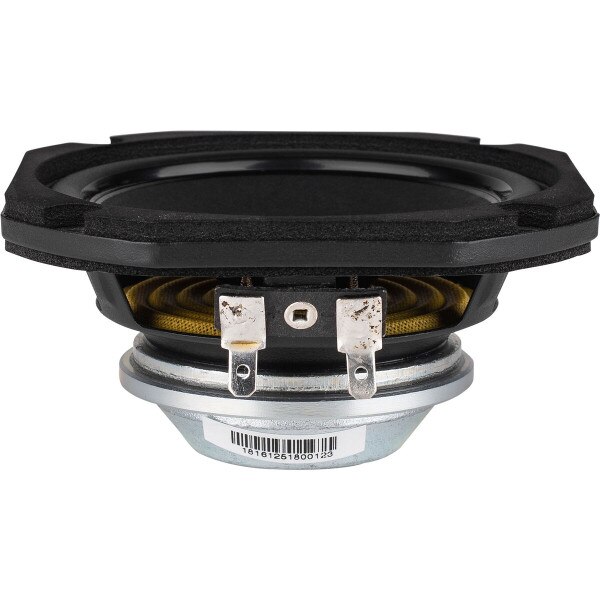

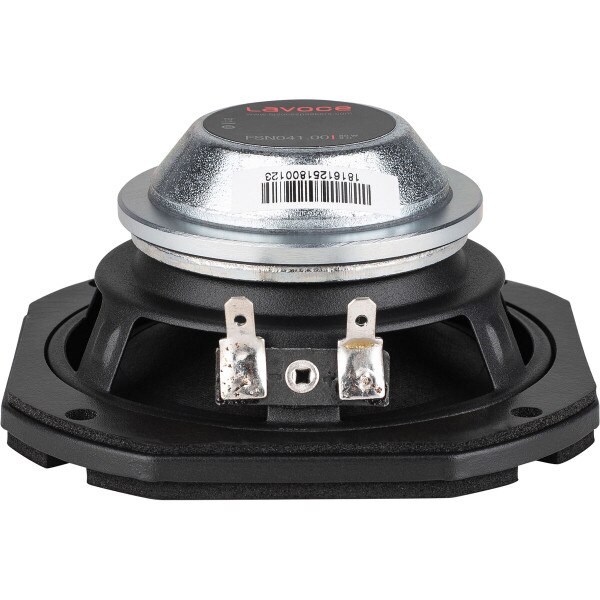

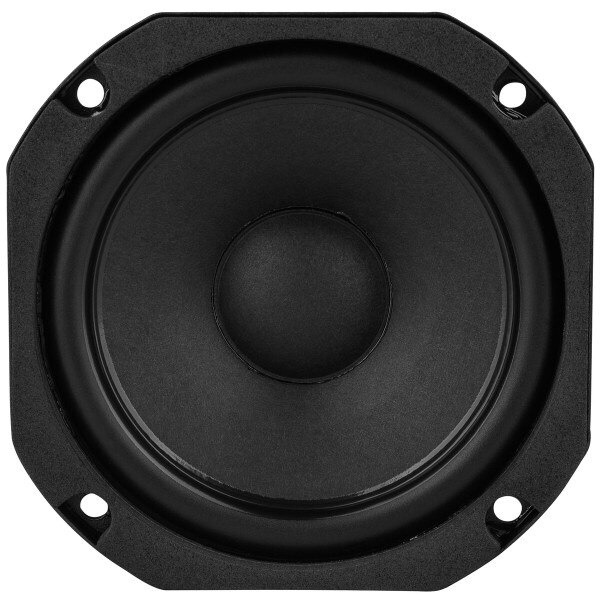

LaVoce FSN041.00 4" Neodymium Full-Range Woofer 8 Ohm

LaVoce
Part #293-711

LaVoce FSN041.00 4" Neodymium Full-Range Woofer 8 Ohm

LaVoce
Part #293-711
The LaVoce FSN041.00 is a superb 4" full-range driver that features a rising response, which is ideal for line arrays. The low resonant frequency of 110 Hz, gives this driver the ability to crossover very low, and mate to a subwoofer easily.
Key Features
  • FEM optimized Neodymium motor
  • Copper shorting sleeve for extended frequency response
  • Resonance-free, heavy-duty steel basket demonstrates excellent build quality
  • Low resonant frequency for easy mating to a subwoofer
Your Price: $45.00
MSRP: $67.16
Save $22.16 (33%)
Bulk Pricing
Ships next business day. Details

Only 1 In Stock

More due on 5/22/2024
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce FSN041.00 4" Neodymium Full-Range Woofer 8 Ohm

The LaVoce FSN041.00 is a superb 4" full-range driver that features a rising response, which is ideal for line arrays. The low resonant frequency of 110 Hz, gives this driver the ability to crossover very low, and mate to a subwoofer easily. The gasket on this driver allows it to be rear mounted easily, providing additional installation flexibility. To add to the versatility of this driver, the cone has been treated to be waterproof, making it ideal for outdoor cabinets.

Product Details

BrandLavoce
ModelFSN041.00
Part Number293-711
UPC848864057330
Unit of MeasureEach
Weight1.05

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.09
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance8Ω
Frequency Response110 to 18,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz
DC Resistance (Re)6.1Ω
Voice Coil Inductance (Le)0.04mH
Mechanical Q (Qms)3.8
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)0.06ft³
Mechanical Compliance of Suspension (Cms)0.45mm/N
BL Product (BL)7T·m
Diaphragm Mass Inc. Airload (Mms)4.5g
Maximum Linear Excursion (Xmax)2.2mm
Surface Area of Cone (Sd)54cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter4.17"
Baffle Cutout Diameter3.68"
Depth2.01"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.02ft³
Sealed F3242Hz
Vented Volume0.08ft³
Vented F3102.1Hz
