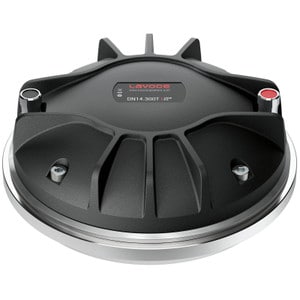

LaVoce DN14.300T Neodymium 1.4" Titanium Compression Driver 4-Bolt

LavocePart # 293-778
Model: DN14.300T
1 Question, 1 Answer or
Lavoce's DN14.300T 1.4" titanium compression driver will deliver high output with smooth response and low distortion. A 3" diameter edgewound voice coil, titanium diaphragm, patented Integral Input Surface Phase Plug, and incredibly powerful neodymium magnet, this driver is capable of high fidelity sound and incredible reliability even at ear splitting output levels. Thanks to is incredible performance capability, the DN14.300T is a great choice for anything from dynamic home theater systems to high SPL professional designs.

Key Features

  • 109 dB sensitivity with 110 watt RMS power handling for extreme output capability
  • Extremely powerful neodymium magnet for minimal size and weight without sacrificing output capability
  • Useful response up to 20,000 makes this driver a great choice for use in 2-way systems
  • Patented Integral Input Surface Phase Plug improves consistency and reliability
  • Standard 1.4" exit and 4-bolt mount for installation onto many popular horns
Your Price: $329.00
+ FREE SHIPPING
MSRP: $491.04
Save $162.04 (33%)
Bulk Pricing
Only 1 In Stock
Get Notified When Available

We'll send you an email when LaVoce DN14.300T Neodymium 1.4" Titanium Compression Driver 4-Bolt is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce DN14.300T Neodymium 1.4" Titanium Compression Driver 4-Bolt

The DN14.300T 1.4” high frequency neodymium compression driver from Lavoce’s Next Generation line offers lower distortion, smoother response, and lower power compression than their previous designs. Using advanced FEM optimization, Lavoce designed a new motor, phase plug, and diaphragm to ensure that the DN14.300T is capable of premium performance, even when pushed to remarkable output levels. With a one piece titanium diaphragm and surround, this driver is capable of accurate response with minimal unwanted resonances for smooth and natural response. The voice coil uses edgewound CCA wire on a Kapton former to minimize mass while dissipating enough heat to handle up to 110 watts RMS (220 watts max). Driving the coil is a robust neodymium magnet which cuts the overall size and weight without sacrificing efficiency or output capability. Thanks to its pinpoint accuracy, low distortion, and minimal power compression, the DN14.300T is the perfect choice for anything from dynamic studio monitors to high output segmented line arrays.

Specifications: • Power handling: 110 watts RMS (220 watts program power) • VCdia: 3" • Impedance: 8 ohms • Recommended crossover: 1,200 Hz @ 12dB/octave high pass • Frequency response: 500-20,000 Hz • SPL: 109 dB 2.83V/1m • Dimensions: 5.1" diameter x 2" depth • Net weight: 4.4 lbs.

Product Details

BrandLavoce
ModelDN14.300T
Part Number293-778
UPC848864068220
Unit of MeasureEach
Weight4.65

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1.4"
Mounting Type4-Bolt
Power Handling (RMS)110 Watts
Impedance8Ω
