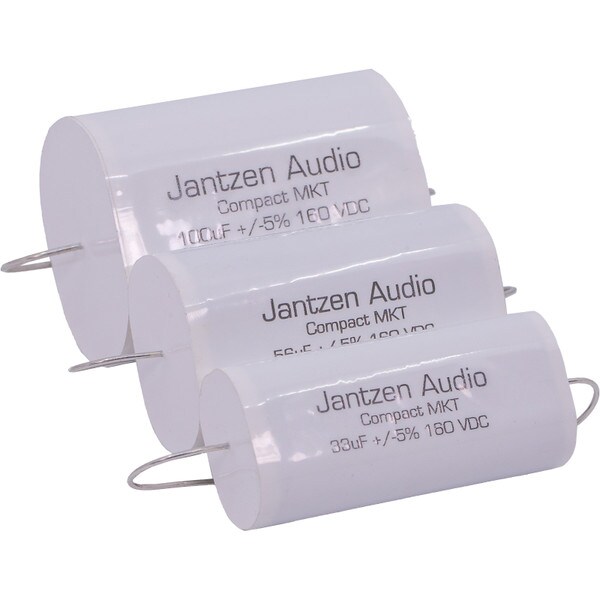

Jantzen 8200 100uF 160V Compact MKT Metalized Polyester Film Capacitor

Jantzen AudioPart # 027-840
Model: 001-8200
2 Questions, 2 Answers or
With its uniquely square shape, the Jantzen Compact MKY Metalized Polyester Film Capacitor will make your crossover creation even easier. With its smaller footprint, it's never been more convenient to couple multiple capacitors in parallel to reach a higher capacity value. And as always, Jantzen capacitors are made with only the highest quality metalized polyester film to provide the sonic quality you've come to expect from Jantzen Audio.

Key Features

  • Dimensions: 34 x 42 x 57 mm (H x W x L)
  • The square shape allows these capacitors to be stacked, significantly reducing their footprint
  • Rated Voltage: 160 VDC / 100 VAC
  • A tolerance of ±5%
Your Price: $31.95
MSRP: $41.99
Save $10.04 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $31.95/ea
Quantity:Qty: 10+ $29.28/ea
In Stock
Get Notified When Available

We'll send you an email when Jantzen 8200 100uF 160V Compact MKT Metalized Polyester Film Capacitor is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen 8200 100uF 160V Compact MKT Metalized Polyester Film Capacitor

Product Features

  • Dimensions: 34 x 42 x 57 mm (H x W x L)
  • The Compact MKT capacitors are made with the highest quality metalized polyester film possible.
  • Jantzen has been able to make them smaller in size and with better sonic properties compared to “plain/smooth foil” electrolytic capacitors.
  • With a voltage rating of 160 volts DC, they are also more versatile to use than electrolytic capacitors, usually only rated at either 63 volts DC or 100 volts DC.
  • Due to their rounded square shape (flat top and bottom surface), they can be easily stacked when it is necessary to couple multiple capacitors in parallel to reach a higher capacity value for a certain crossover position.
  • As they are stackable, they will take up significantly less space, when compared to round-shaped equivalent values of plain/smooth foil electrolytic, MKT or PP foil capacitors that will need to be mounted side by side.

Technical Data

  • Capacitor foil: Metalized polyester foil
  • Dielectric insulation: Polyester foil
  • Terminal leads: Tinned 4N copper wire
  • Voltage rating: 160 VDC / 100 VAC
  • Capacity tolerance: +/- 5%
  • Dielectric constant: Non-polar dielectric
  • Dissipation factor: Extremely low
  • Dielectric absorption factor: <0.5% @20°C
  • Dielectric thickness: PB=5µm
  • Equivalent series resistance (ESR): Extremely low
  • Self-inductance: <15 nH
  • Insulation resistance: >5000 MΩx µF 10000 MΩ min
  • Temperature coefficient: -200°Cx10¯6/°C
  • Temperature Range: -55°Cto + 125°C
  • Metal layer thickness: PB=0.3 µm
  • Metal layer conductivity: PB = 1.2 Ω/ cm²

Product Details

BrandJantzen Audio
Model001-8200
Part Number027-840
UPC848864078847
Unit of MeasureEach
Weight0.2

Product Specifications

Capacitance100 uF
Tolerance5%
Voltage Rating160V
