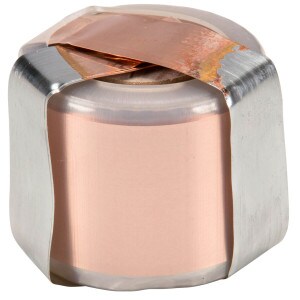

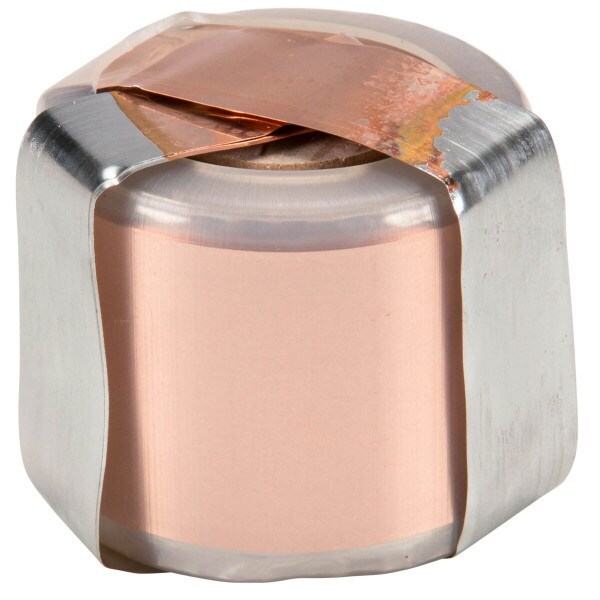

The Jantzen Audio Cross-Coils are premium-quality, audiophile-grade copper foil inductors. They feature 99.99% pure copper foil windings separated by an extremely thin layer of polypropylene film and tightly wrapped around a hardwood core, resulting in very low magnetoshrinkage factor and virtually zero FM distortion. The foil approach outperforms conventional round-wire inductors by providing over 12 times the surface area through which high-frequency electrons can travel, minimizing skin-effect problems and providing consistently low power-distortion figures. Very close to the "ideal inductor" in all respects, every coil goes through a specially developed Jantzen Audio anti-oxidizing treatment and measurement procedure prior to packaging. Jantzen Audio p/n 000-7295.
Specifications: • Tolerance: ± 3.0% • Inductance: 0.15 mH • Wire gauge: 14 AWG • DC resistance: 0.09 Ohms • Dimensions: 1.77" x 1.50" • Power handling: 350 watts RMS for 16 gauge, 500 watts RMS for 14 gauge and 650 watts RMS for 12 gauge.
Product Details | |
|---|---|
| Brand | Jantzen Audio |
| Model | 000-7295 |
| Part Number | 255-656 |
| UPC | 844632023491 |
| Unit of Measure | Each |
| Weight | 0.49 |
Product Specifications | |
|---|---|
| DCR | 0.09Ω |
| Inductance | 0.15mH |
| Inductor Type | Copper Foil |
| Wire Gauge | 14 |
