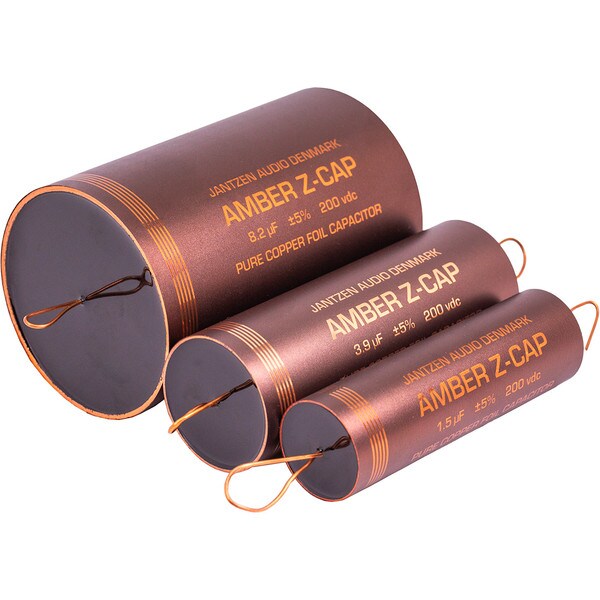

Jantzen 7228 2.2uF 200V Amber Z-Cap Copper Foil Capacitor

Jantzen AudioPart # 027-4704
Model: 001-7228
Made specifically for tweeter and the mid-range section of passive crossovers, the Jantzen Amber Z-Cap Copper Foil Capacitors are the pinnacle of high quality capacitors. With less distortion, an ultra-thin dielectric insulation, and a pure copper foil, one simply cannot ask for a higher quality component to build a passive crossover.

Key Features

  • Dimensions: 30mm x 86mm
  • Copper foil offers an overall clearer tonal balance and sonic "flavor"
  • Rated Voltage: 200 VDC / 160 VAC
  • Tin plated oxygen free pure copper leads
  • A tolerance of ±5% (on nominal value)
Your Price: $263.75
+ FREE SHIPPING
MSRP: $342.99
Save $79.24 (23%)
Bulk Pricing
Quantity:Qty: 1-9 $263.75/ea
Quantity:Qty: 10+ $241.77/ea
Out of Stock
Get Notified When Available

We'll send you an email when Jantzen 7228 2.2uF 200V Amber Z-Cap Copper Foil Capacitor is back in stock or available for preorder.

Special Order Item Ships in 25-35 Days
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen 7228 2.2uF 200V Amber Z-Cap Copper Foil Capacitor

Product Features

  • Dimensions: Ø 30mm - L: 86mm
  • The Amber Z-Cap is a super high-end pure copper foil capacitor, designed specifically for passive crossovers.
  • They are primarily used for the tweeter section of crossovers but work equally well for mid-range section application.
  • The Amber Z-Cap builds on the same design principles of our already critically acclaimed Alumen Z-Caps.
  • The differences between the two are subtle, but to the connoisseur listener, the listening experience will still be a clear improvement in the overall tonal balance.
  • Copper foil simply has a different sonic “flavor” compared to aluminum foil.
  • The “flavor” of copper foil is best described as an even more neutral/natural depiction of vocals and instruments.
  • This is paired with the enhancements in transparency and detail richness on an even higher level compared metalized polypropylene capacitors (MKP / Super MKP capacitors).
  • Due to the max. 200 volts DC voltage rating, Jantzen advises customers to be mindful when using Amber Z-Caps for tube/valve and power amplifier application.
  • For upgrading the coupling capacitors in amplifiers, Jantzen instead recommend choosing our Superior or Silver Z-Caps capacitors.

Technical Data

  • Type: Non polarized pure copper foil capacitor
  • Dielectric: Polypropylene film
  • Construction: Four-layer round tubular type axial leads
  • Winding: Pure solid copper foil spliced to polypropylene insulation film
  • Voltage Rating: 200VDC / 160VAC
  • Test Voltage: 150% rated voltage
  • Electrodes: Pure copper foil
  • Contacts: Non-inductive zinc thermally sprayed extended film
  • Coating: Bronze plastic tape wrapped black resin, sealed in a copper colored anodized aluminum tube
  • Leads: Tin plated oxygen free pure copper
  • Capacitance Range: 200VDC from 1.0 μF to 8.2μF
  • Capacitance tolerance: ±5% (on nominal value)
  • Dielectric constant: Non-polar dielectric
  • Dissipation factor: Extremely low
  • Dielectric absorption factor: ＜0.5% @20℃
  • Dielectric thickness: PB=5µm
  • Equivalent series resistance: Extremely low
  • Self-inductance: 0 nH
  • Insulation resistance: ＞100.000 MΩ@20℃
  • Temperature coefficient: -200℃x10-6/℃
  • Temperature Range: -55℃to +85℃
  • Metal layer thickness: PB=0.3µm
  • Metal layer conductivity: PB =1.2 Ω/cm2

Key Innovations

  • An extremely fast reacting capacitor
  • Ultra-thin dielectric insulation to eliminate memory effect in the capacitor
  • Extremely low ESR, SEL, inductance and dielectric absorption data
  • High quality pure copper foil wound with highly specialized machinery and precision winding techniques
  • The center of the capacitor is enforced by small steel balls to further ensure stability and shape of the capacitor
  • The specialized winding technique and overall quality of this capacitor enables us to offer a high-end product with a lot less distortion compared to the market standard
  • Specifically designed for the tweeter and mid-range section of passive crossovers
  • Can also be used as coupling capacitors for transistor amplifiers

Product Details

BrandJantzen Audio
Model001-7228
Part Number027-4704
UPC848864078564
Unit of MeasureEach
Weight0.249

Product Specifications

Capacitance2.2 uF
Tolerance5%
Voltage Rating200V
