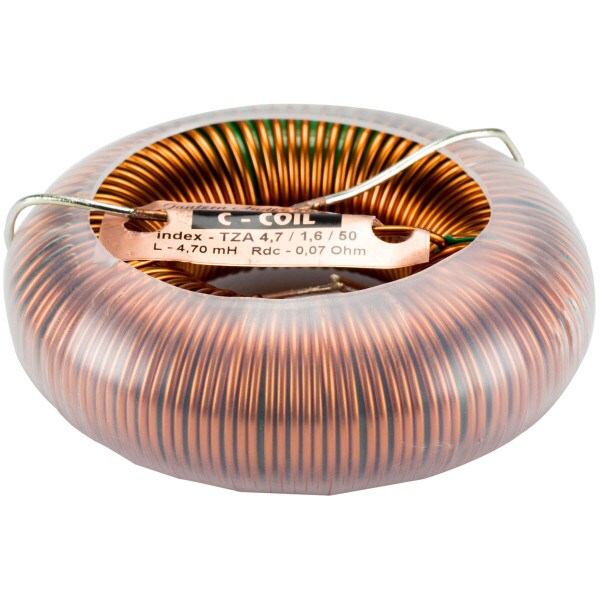

Jantzen Audio 4.7mH 14 AWG C-Coil Toroidal Inductor Crossover Coil

Jantzen AudioPart # 255-820
Model: 000-6225

The Jantzen Audio C-Coil is a premium audio inductor designed for use in speaker crossover networks in the bass section of crossovers. Its pure copper foil construction and careful build help reduce distortion and improve power handling versus traditional wire coils.

Key Features

  • An excellent choice for large power handling and low resistance
  • Toroidal core and shrink foil reduces microphonic effect
  • Made from ETP (Electrolytic-Tough-Pitch) C11000 copper foil with IACS certification
  • Not recommended for use above 1.2 kHz
  • Inductance tolerance of ±5%
  • DCR (coil resistance) tolerance of ±10%
Your Price: $77.00
MSRP: $115.99
Save $38.99 (34%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Jantzen Audio 4.7mH 14 AWG C-Coil Toroidal Inductor Crossover Coil is back in stock or available for preorder.

Estimated back in stock 2/27/2026
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 4.7mH 14 AWG C-Coil Toroidal Inductor Crossover Coil

Jantzen Audio C-Coil Toroidal Core Inductors

Product Features

The unique properties of the C-Coils make them the ultimate inductors for the bass section on crossovers designs, where a large power handling and extremely low resistance is desirable.

The coil features a toroidal core and using shrink foil to reduce microphonic effect.

Due to the electromagnetic properties of the toroidal cores, Jantzen generally only recommends them for the bass section of crossovers, but in certain crossover designs they may also be used for lower midrange.

If the C-Coil is used for a crossover position crossed above 1.2 kHz, it is likely that there will be an unwanted distortion (hum).

It can be driver, crossover design / filter order dependent, but Jantzen generally advises to test C-Coils by doing real life listening test, before using them for mass production of speaker systems.

C-Coils should under no circumstances be used for tweeter or upper midrange positions on crossovers.

All C-Coils are control measured on a professional LCR bridge before they are shipped.

If you wish to control measure C-Coils yourself, kindly contact Jantzen for instructions on how to correctly control measure C-Coils.

Technical Data

  • Wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire
  • Toroidal core made from epoxy laminated steel plates
  • Power handling: 400 to 3000 Watt RMS (depending on wire thickness and core size)
  • Inductance tolerance: ± 5%
  • DCR (coil resistance) tolerance: ± 10%
  • All C-Coils are measured after being wound, using a professional LCR bridge @ AC 1V - 1kHz
  • Only recommended for positions crossed below 1.20 kHz

Electrical Properties

  • Inductance: 4.7000 mH
  • DCR: 0.0700 Ω
  • Wind. Wire: 1.60 mm
  • AWG: 14

Dimensions

  • Inner ø: 37 mm
  • Outer ø: 93 mm
  • Height: 30 mm

Product Details

BrandJantzen Audio
Model000-6225
Part Number255-820
UPC844632054587
Unit of MeasureEach
Weight1.25

Product Specifications

DCR0.072Ω
Inductance4.7mH
Inductor TypeSolid Core
Wire Gauge14
