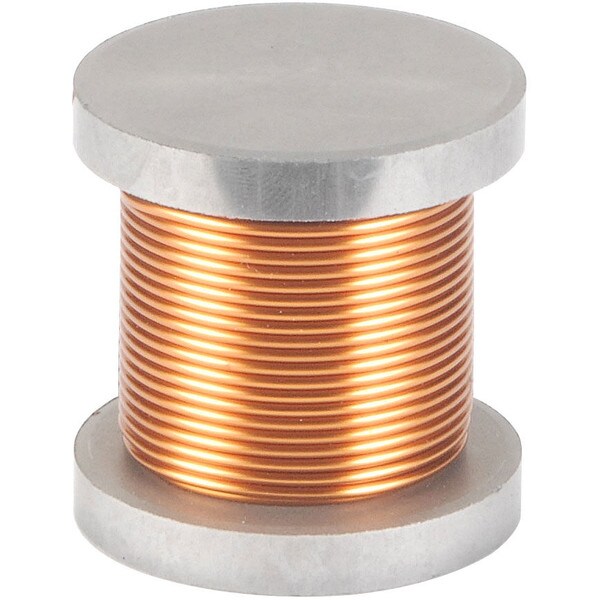

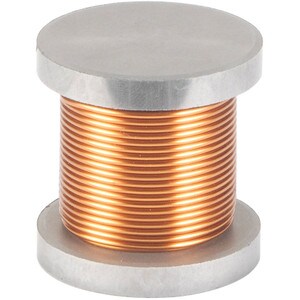

Jantzen Audio 1.0mH 15 AWG P-Core Inductor Crossover Coil

Jantzen AudioPart # 255-100
Model: 000-5117
Jantzen Audio P-Core Series Inductors feature a Permite (ferrous powder) material within the core, which creates significantly lower hysteresis before saturation occurs when compared to ferrite cores. The P-Core Series also features low DCR values and a high power handling capability of 400 watts RMS.

Key Features

  • Ferrous powder
  • 400 watt power handling
  • 0.095 ohm DC resistance
  • Dimensions: 1.72" x 1.8"
  • Great woofer or subwoofer crossover inductor
Your Price: $16.55
MSRP: $21.99
Save $5.44 (25%)
Bulk Pricing
Quantity:Qty: 1-9 $16.55/ea
Quantity:Qty: 10+ $15.17/ea
6 In Stock
Get Notified When Available

We'll send you an email when Jantzen Audio 1.0mH 15 AWG P-Core Inductor Crossover Coil is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 1.0mH 15 AWG P-Core Inductor Crossover Coil

Jantzen Audio P-Core Series Inductors feature a Permite (ferrous powder) material within the core, which creates significantly lower hysteresis before saturation occurs when compared to ferrite cores. The P-Core Series also features extremely low DCR values and a high power handling capability of 400 watts RMS. Jantzen Audio p/n 000-5117.

Specifications: • Tolerance: ± 5.0% • Inductance: 1.00 mH • Wire gauge: 15 AWG • DC resistance: 0.095 Ohms • Dimensions: 1.72" x 1.8" • Power handling: 400 watts RMS.

Product Details

BrandJantzen Audio
Model000-5117
Part Number255-100
UPC844632061561
Unit of MeasureEach
Weight0.8

Product Specifications

DCR0.095Ω
Inductance1mH
Inductor TypeSolid Core
Wire Gauge15
