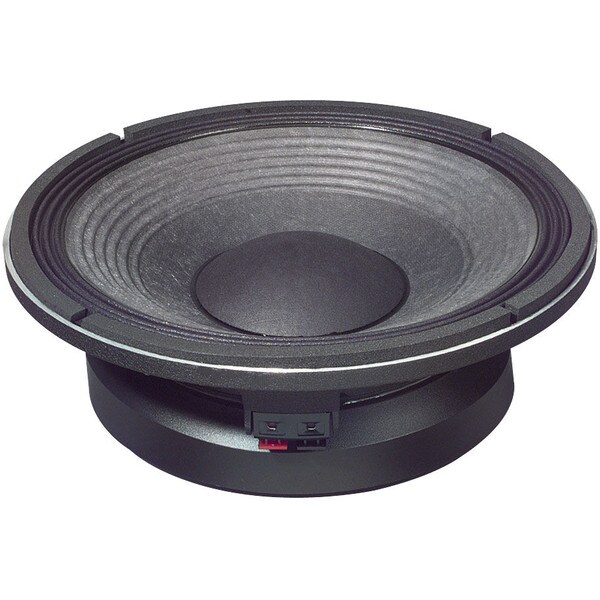

The 2206H 12" low frequency transducer represents the results of JBL's latest engineering research in high power transducer design. For increased power handling while reducing power compression, a unique direct voice coil-to-air heat dissipation method called Vented Gap Cooling has been used. This process pumps air through the magnetic gap and directly over and around the voice coil to provide immediate heat transfer and reduction in operating temperature. Through the use of new computer-aided magnet optimization and analysis techniques comes a new weight-optimized Symmetrical Field Geometry (SFG) magnet structure, resulting in a reduction of overall driver weight and a significant reduction in harmonic distortion. This new magnet structure offers much of the weight advantage of rare earth magnet structures without their prohibitive cost.
Product Details | |
|---|---|
| Brand | JBL Professional |
| Model | 2206H |
| Part Number | 294-480 |
| UPC | 844632005787 |
| Unit of Measure | Each |
| Weight | 17.1 |
Product Specifications | |
|---|---|
| Nominal Diameter | 12" |
| Power Handling (RMS) | 600 Watts |
| Power Handling (MAX) | 1200 Watts |
| Impedance | 8Ω |
| Frequency Response | 45 to 3,500Hz |
| Sensitivity | 95dB 2.83V/1m |
| Voice Coil Diameter | 4" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 52Hz |
| DC Resistance (Re) | 5.3Ω |
| Voice Coil Inductance (Le) | 1.5mH |
| Mechanical Q (Qms) | 4.5 |
| Electromagnetic Q (Qes) | 0.34 |
| Total Q (Qts) | 0.32 |
| Compliance Equivalent Volume (Vas) | 2.2ft³ |
| Maximum Linear Excursion (Xmax) | 7.5mm |
| Surface Area of Cone (Sd) | 546.45cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 12.25" |
| Baffle Cutout Diameter | 11" |
| Depth | 5" |
| # Mounting Holes | 4 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 1ft³ |
| Sealed F3 | 88.2Hz |
| Vented Volume | 2ft³ |
| Vented F3 | 55.6Hz |
