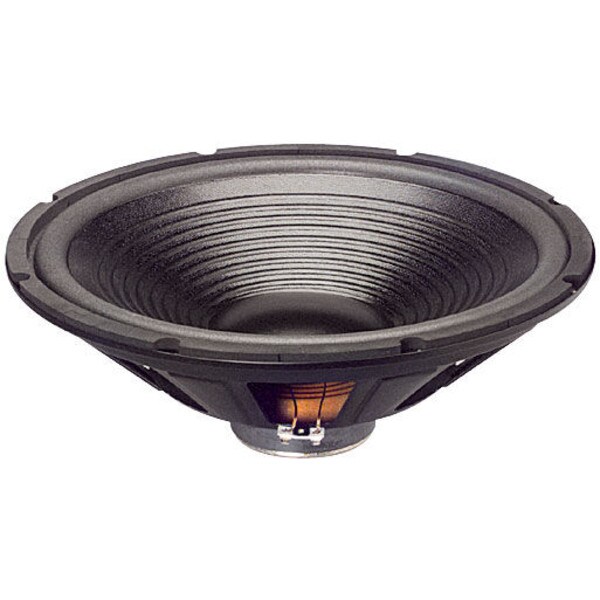

Goldwood GW-215/8 15" OEM Woofer 8 Ohm

Name: Goldwood GW-215/8 15" OEM Woofer 8 Ohm
Brand: Goldwood
SKU: 290-345
Price: 62.98 USD
Availability: InStock
Rating: 4.6 (16 reviews)

GoldwoodPart # 290-345

Model: GW-215/8

Read 16 Reviews | 99 Questions, 192 Answers or

6-1/2 in. 8 ohm 8 in. 4 ohm 8 in. 8 ohm 10 in. 4 ohm 10 in. 8 ohm 12 in. 4 ohm 12 in. 8 ohm 15 in. 8 ohm

These low frequency OEM drivers are ideal for the customer who is looking for inexpensive replacement woofers.

Product Details

Brand

Goldwood

Model

GW-215/8

Part Number

290-345

UPC

643420100488

Unit of Measure

Each

Weight

5.9

Product Specifications

Nominal Diameter

15"

Power Handling (RMS)

135 Watts

Power Handling (MAX)

250 Watts

Impedance

8Ω

Frequency Response

22 to 3,000Hz

Sensitivity

87.8dB 2.83V/1m

Voice Coil Diameter

1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)

29.5Hz

DC Resistance (Re)

7.1Ω

Voice Coil Inductance (Le)

0.9mH

Mechanical Q (Qms)

7.09

Electromagnetic Q (Qes)

2.69

Total Q (Qts)

1.95

Compliance Equivalent Volume (Vas)

12.94ft³

Mechanical Compliance of Suspension (Cms)

0.38mm/N

BL Product (BL)

6.09T·m

Diaphragm Mass Inc. Airload (Mms)

75.7g

Maximum Linear Excursion (Xmax)

3.5mm

Surface Area of Cone (Sd)

823.42cm²

Materials of Construction

Cone Material

Treated Paper

Surround Material

Foam

Basket / Frame Material

Steel

Magnet Material

Ferrite

Mounting Information

Overall Outside Diameter

15"

Baffle Cutout Diameter

13.75"

Depth

5.1875"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

4ft³

Sealed F3

40.3Hz
