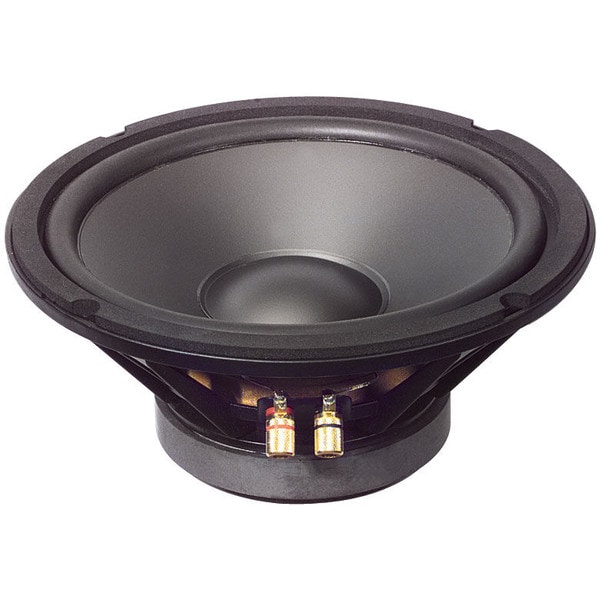

Goldwood GW-10PC-8 10" Heavy Duty Woofer 8 Ohm

GoldwoodPart # 290-324
Model: GW-10PC-8

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now
The Heavy Duty Delmar Series woofers are available in 4 ohm and 8 ohm versions for wiring flexibility making these perfect replacement drivers for many home audio applications. The woofers feature aluminum die-cast frames, knurled and gold-plated binding posts, rubber surrounds, and vented pole pieces with bumped back plates.

Key Features

  • Cast aluminum frame
  • Knurled and gold-plated binding posts
  • Vented pole piece with bumped back plate
Your Price: $79.98
MSRP: $103.99
Save $24.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $79.98/ea
Quantity:Qty: 4+ $76.23/ea
In Stock
Get Notified When Available

We'll send you an email when Goldwood GW-10PC-8 10" Heavy Duty Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Goldwood GW-10PC-8 10" Heavy Duty Woofer 8 Ohm

The Heavy Duty Delmar Series woofers are available in 4 ohm and 8 ohm versions for wiring flexibility making these perfect replacement drivers for many home audio applications. The woofers handle the most powerful of amplifiers while maintaining sonic excellence. They feature aluminum die-cast frames, knurled and gold-plated binding posts, rubber surrounds, and vented pole pieces with bumped back plates.

Product Details

BrandGoldwood
ModelGW-10PC-8
Part Number290-324
UPC643420100204
Unit of MeasureEach
Weight7.4

Product Specifications

Nominal Diameter10"
Power Handling (RMS)140 Watts
Power Handling (MAX)270 Watts
Impedance8Ω
Frequency Response36 to 5,000Hz
Sensitivity90.4dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)47.89Hz
DC Resistance (Re)7.23Ω
Voice Coil Inductance (Le)1.86mH
Mechanical Q (Qms)4.85
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)1.1ft³
Mechanical Compliance of Suspension (Cms)0.19mm/N
BL Product (BL)15.47T·m
Diaphragm Mass Inc. Airload (Mms)57.76g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)344.9cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.25"
Baffle Cutout Diameter9.125"
Depth4.375"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.6ft³
Sealed F380.9Hz
Vented Volume1.7ft³
Vented F344.8Hz
