  • Galaxy Audio Neolite SW6.5 6.5" Neodymium Woofer 4 Ohm

CLEARANCE Galaxy Audio Neolite SW6.5 6.5" Neodymium Woofer 4 Ohm

Galaxy AudioPart # 245-2494
Model: SW6.5
Now available as a replacement speaker for the PA6S Hot Spot monitor, or as a component for new designs, the SW6.5 Neolite 6.5" woofer features a 3.4 ounce Neodymium magnet mounted on an ABS plastic basket. The high excursion cone and thick surround allow for low frequencies to be produced cleanly.

Key Features

  • Neodymium magnet structure
  • Lightweight ABS frame
  • Front or rear mounting
  • Ferrofluid cooled for increased power handling
Similar items that may interest you:
Ciare CMR160 6.5" Full-Range Driver 4 Ohm
Price: $92.18Part # 293-108
PRV Audio 6MB100-4 6" Midbass Woofer Pair 4 Ohm
Price: $39.91Part # 294-3404
See all items in Midrange / Midbass Drivers & Full-Range Speakers
Get Notified When Available

We'll send you an email when Galaxy Audio Neolite SW6.5 6.5" Neodymium Woofer 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Galaxy Audio Neolite SW6.5 6.5" Neodymium Woofer 4 Ohm

Galaxy Audio is happy to announce that the Neolite 6.5" woofer is available for custom applications or as an upgrade to existing designs. Used in the wildly popular PA6S Hot Spot powered personal monitor system, the SW6.5 is also an excellent candidate for midrange duty, or as a dedicated woofer in small 2-way systems. With power handling capability of up to 155 watts, 50 - 8kHz frequency range, and ferrofluid cooling, the SW6.5 can hold its own, even under the most demanding conditions.

Product Details

BrandGalaxy Audio
ModelSW6.5
Part Number245-2494
UPC691281000744
Unit of MeasureEach
Weight1.65

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)75 Watts
Power Handling (MAX)155 Watts
Impedance4Ω

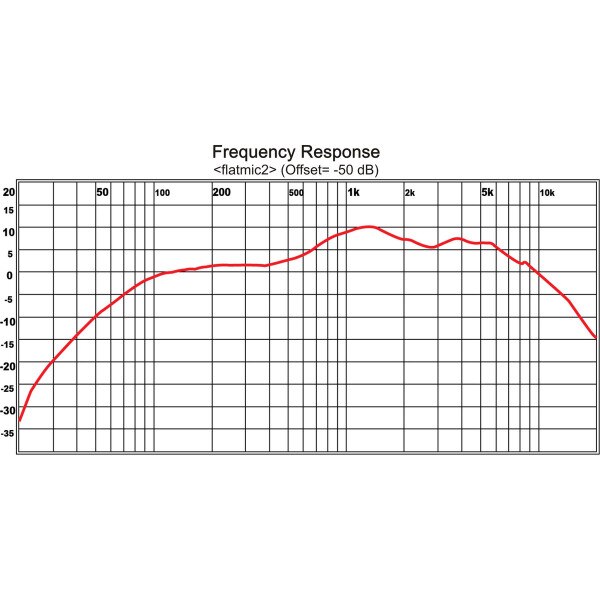

Frequency Response50 to 8,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)45.5Hz
Mechanical Q (Qms)3.05
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)0.73ft³

Materials of Construction

Cone MaterialPoly Composite
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.375"
Baffle Cutout Diameter5.75"
Depth3.125"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.15ft³
Sealed F3135.1Hz
Vented Volume0.5ft³
Vented F358.1Hz
