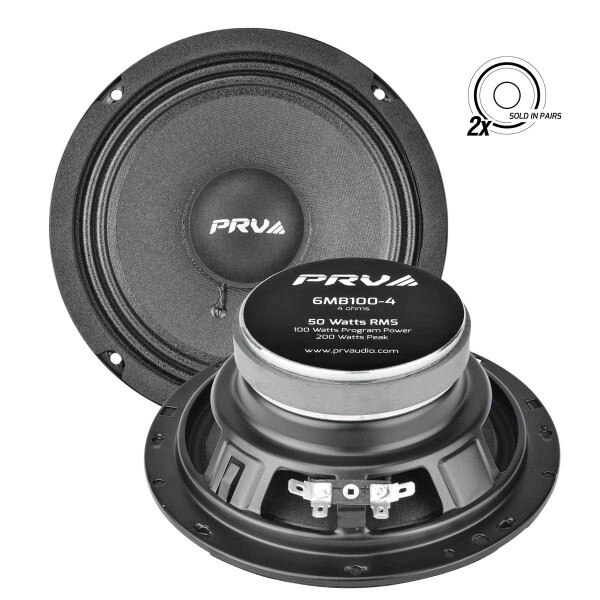

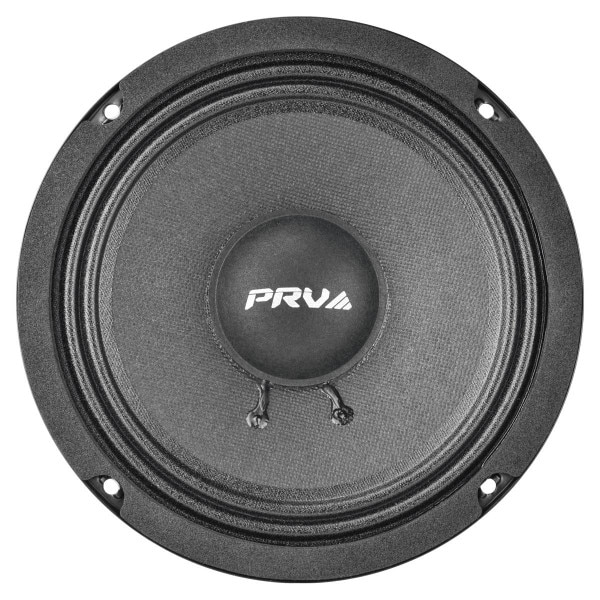

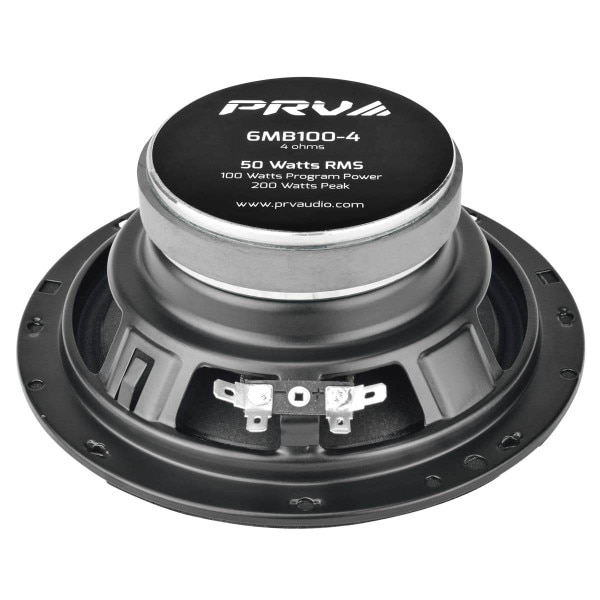

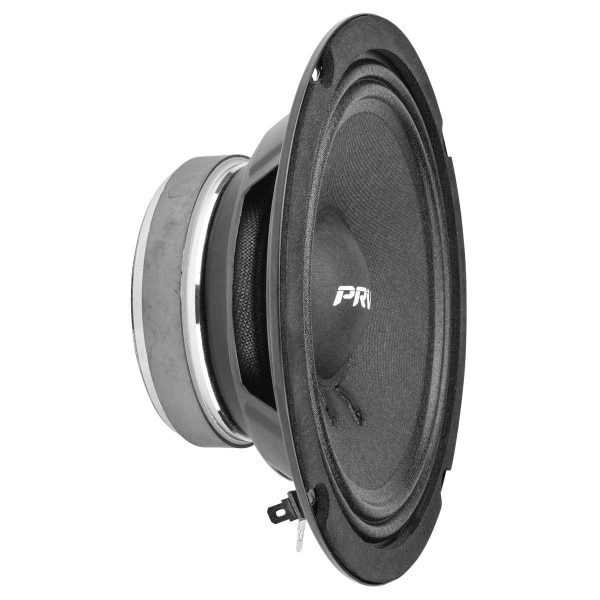

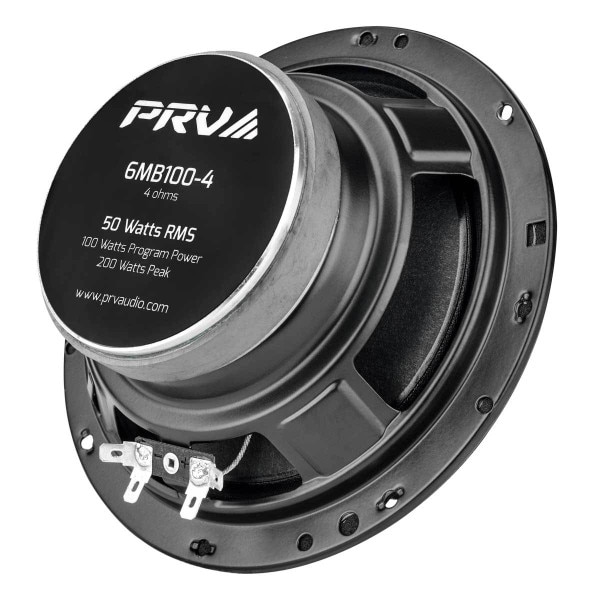

PRV Audio 6MB100-4 6" Midbass Woofer Pair 4 Ohm

PRV AudioPart # 294-3404
Model: 6MB100-4
Read 26 Reviews or

PRV has ingeniously merged the realms of PRO audio and high-fidelity audio to create a groundbreaking driver, meticulously designed to achieve elevated levels of pristine output while seamlessly fitting within stock speaker locations.

Key Features

  • Very low profile loudspeaker, fit it in tight spots easily
  • Strong ferrite motor, increases efficiency on a compact design
  • Broad 90-10,000 Hz frequency range for ultimate flexibilit
  • Sold in pairs
Your Price: $39.91
MSRP: $49.89
Save $9.98 (20%)
Bulk Pricing
41 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 6MB100-4 6" Midbass Woofer Pair 4 Ohm is back in stock or available for preorder.

Order in the next 11 hr 42 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 6MB100-4 6" Midbass Woofer Pair 4 Ohm

With the 6MB100-4 speakers, you can elevate a stock audio setup to a concert-grade sensation without requiring any intrusive alterations to interior panels. These speakers boast a shallow mounting depth of 2.32", meticulously tailored to facilitate a smoother installation process. Their standard frame size ensures compatibility with numerous OEM speaker locations.

These speakers are primed to handle 100 Watts of Continuous Power and 50 Watts RMS power. With a sensitivity rating of 90 dB and a frequency response spanning 90 – 10,000 Hz, these speakers guarantee an enhanced audio experience. This PA Style speaker presents an ideal upgrade for those seeking a substantial leap beyond the confines of standard factory enhancements. Sold in pairs.

Product Details

BrandPRV Audio
Model6MB100-4
Part Number294-3404
UPC810075520903
Unit of MeasurePairs
Weight5.4

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance4Ω
Frequency Response90 to 10,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)93.2Hz
DC Resistance (Re)3.8Ω
Voice Coil Inductance (Le)0.22mH
Mechanical Q (Qms)5.75
Electromagnetic Q (Qes)1.37
Total Q (Qts)1.1
Compliance Equivalent Volume (Vas)0.24ft³
Mechanical Compliance of Suspension (Cms)0.252mm/N
BL Product (BL)4.33T·m
Diaphragm Mass Inc. Airload (Mms)11.53g
Maximum Linear Excursion (Xmax)2.75mm
Surface Area of Cone (Sd)143cm²

Materials of Construction

Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.54"
Baffle Cutout Diameter5.6"
Depth3.32"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume95.06ft³
Sealed F30.271Hz
Vented Volume60.06ft³
Vented F31.847Hz
