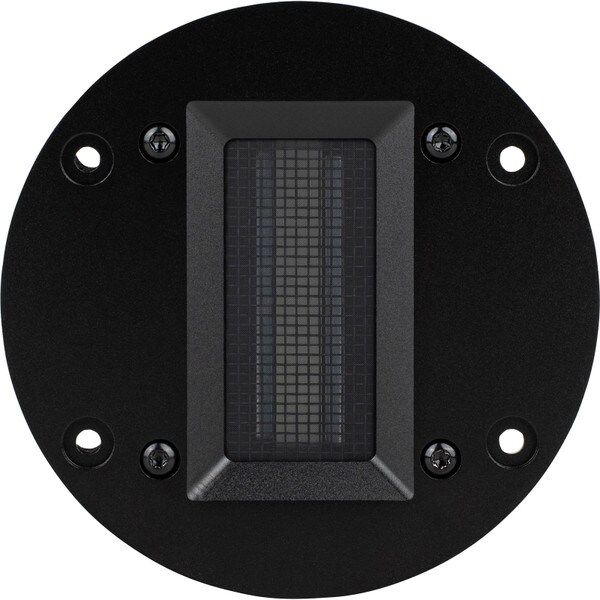

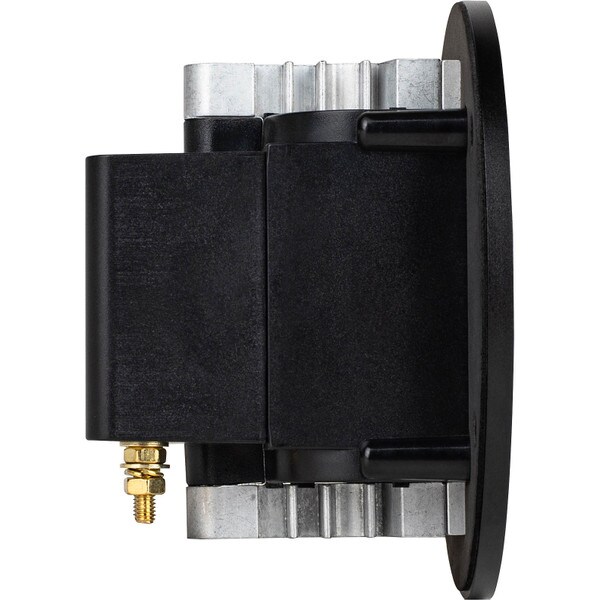

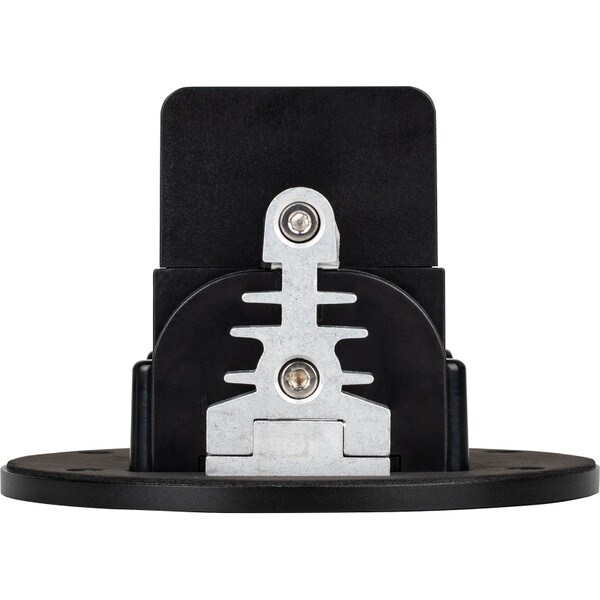

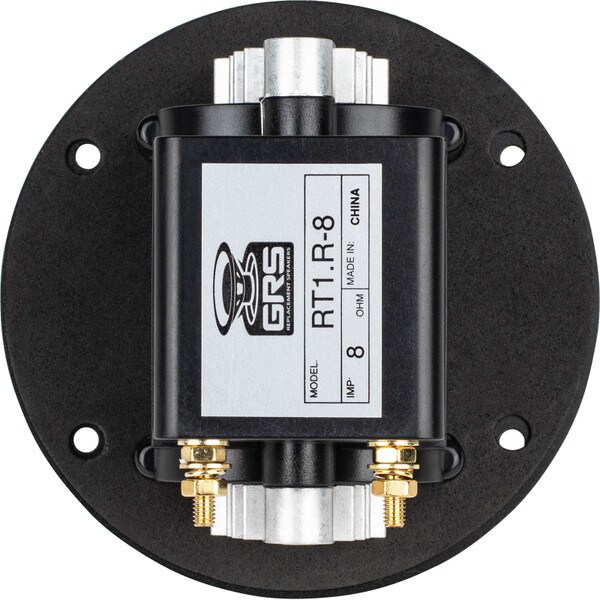

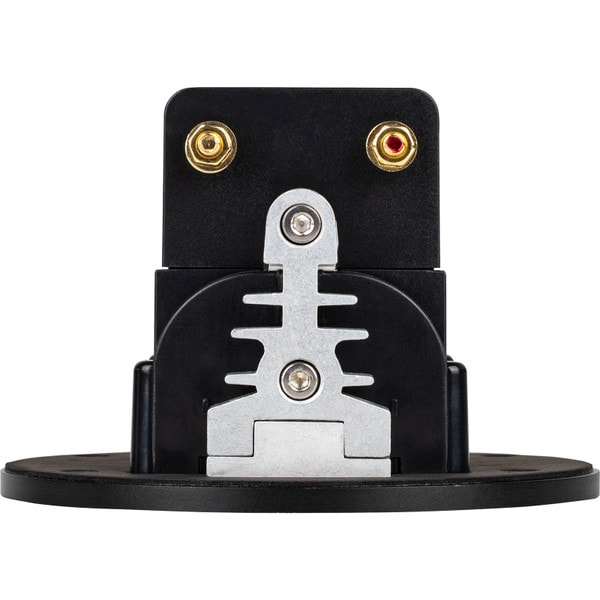

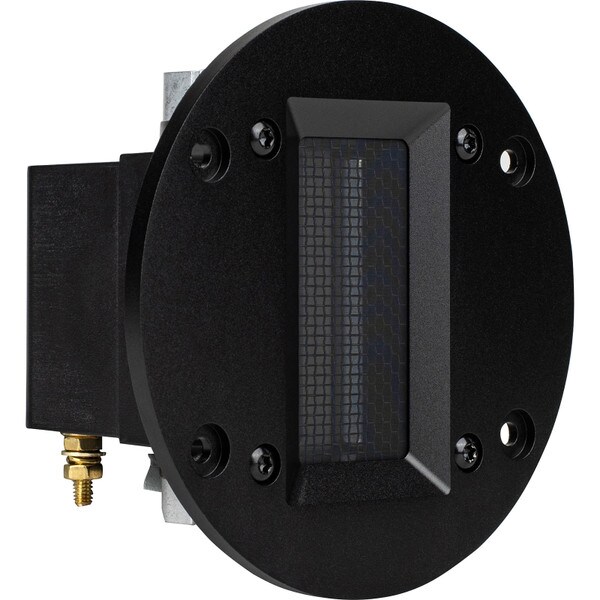

GRS RT1.R-8 Hi-Res Neo Ribbon Tweeter 8 Ohm

GRS
Part #272-202

GRS RT1.R-8 Hi-Res Neo Ribbon Tweeter 8 Ohm

GRS
Part #272-202
Model: RT1.R-8
GRS's premium "Hi-Res" ribbon tweeters with the latest in materials and motor technology easily reach frequencies of 40kHz and beyond, adding incredible detail from your hi-fi system!
Key Features
  • 2.5kHz to 40kHz frequency response for true "Hi-Res" detail
  • Powerful neodymium magnets deliver high efficiency and incredible dynamics
  • Remarkably thin ribbon diaphragm provides accurate transient detail
  • High sensitivity for increased SPL Output
  • Built-in grill protects the delicate ribbon from fingers and other foreign objects
  • Optional silver faceplate available
Your Price: $64.98
MSRP: $110.99
Save $46.01 (41%)
Bulk Pricing
Quantity:Qty: 1-3 $64.98/ea
Quantity:Qty: 4+$58.48/ea

Back-Ordered

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

GRS RT1.R-8 Hi-Res Neo Ribbon Tweeter 8 Ohm

GRS RT1.R-8 Hi-Res Neo Ribbon Tweeter 8 Ohm

Hi-Res. High-Value.

GRS has released a line of premium "Hi-Res" ribbon tweeters employing the latest in materials and motor technology. The GRS Hi-Res Ribbon Tweeters effortlessly reach frequencies of 40kHz and beyond, adding incredible detail from your hi-fi system. This is achieved by employing incredibly light and thin diaphragms, high grade neodymium motor and attention to detail in the assembly process.

The GRS Hi-Res Ribbon Tweeters are perfect for those looking for the "Hi-Res" detail in their loudspeaker system!

Key Specs:

  • Power Handling (RMS): 15 Watts
  • Power Handling (MAX): 30 Watts
  • Impedance: 8 Ω
  • Frequency Response: 2500Hz - 40kHz
  • Sensitivity: 93 dB 2.83V/1m
  • Diaphragm Material: Aluminium Foil
  • Magnet Material: Neodymium

Frequency Response & Impedance

The GRS Neo Ribbon Tweeters have an extended frequency response that reaches up to 40kHz, this allows the tweeter to provide better transient detail and less roll-off at 20kHz than you’d normally get with typical tweeters. The relatively flat impedance curve also makes crossover design incredibly simple, with no awkward loads to work around!

  • Black: 0°
  • Red: 15°
  • Green: 30°
  • Blue: 45°

Above and beyond

As audio technology improves beyond the imagination of the last generation, GRS is here to keep you up to spec! With a diaphragm thickness of 0.03mm made from pure aluminum foil, the GRS Hi-Res Neo Ribbon Tweeters take advantage of the latest in materials and motor technology to bring you a tweeter that plays faithfully up to 40kHz!

Shop the whole GRS Ribbon Series

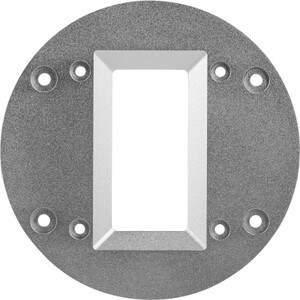

Optional Faceplate

Shop Now

GRS RT1.R-8

Shop Now

GRS RT2.0-8

Shop Now

GRS RT3.0-8

Shop Now

Shop All GRS Ribbon Tweeters
Learn More
Request Quote

Product Details

BrandGRS
ModelRT1.R-8
Part Number272-202
UPC848864069432
Unit of MeasureEach
Weight1.65

Product Specifications

Tweeter TypeRibbon
Power Handling (RMS)15 Watts
Impedance8Ω
Frequency Response2500 - 40,000Hz
Sensitivity93dB 2.83V/1m

Thiele-Small Parameters

DC Resistance (Re)0.2Ω

Mounting Information

Depth2.67"
