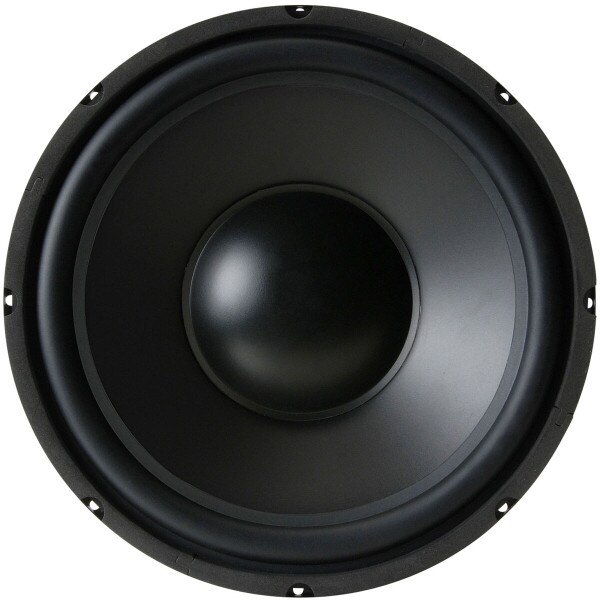

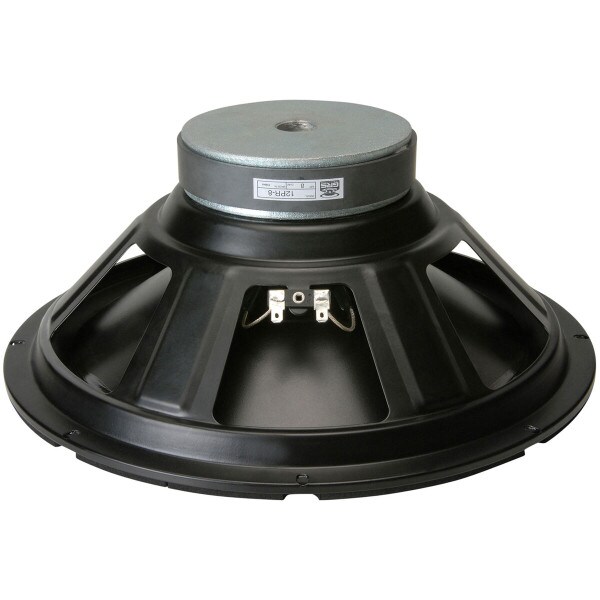

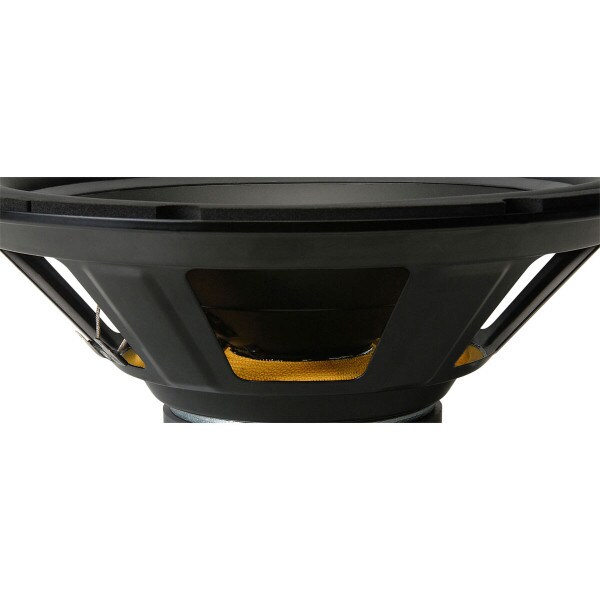

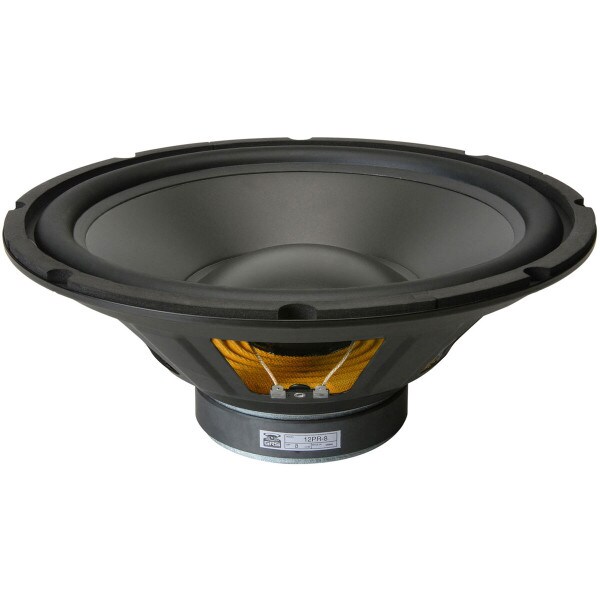

GRS 12PR-8 12" Poly Cone Rubber Surround Woofer

GRSPart # 292-422
Model: 12PR-8
A GRS 12PR-8 12" 8 ohm polypropylene cone woofer is a good, economical way to repair older speaker systems or create new projects.

Key Features

  • Polypropylene cone for perfect balance of stiffness, mass, and self-damping
  • Butyl rubber surround ensures high excursion and long term durability
  • Stamped steel frame keeps components in perfect alignment
  • Optimized motor features high-energy ceramic ferrite magnet, vented pole piece
Similar items that may interest you:
Goldwood GW-212/8 12" OEM Woofer 8 Ohm
Price: $36.98Part # 290-335
See all items in Woofers
Your Price: $26.98
MSRP: $31.99
Save $5.01 (16%)
Bulk Pricing
Quantity:Qty: 1-3 $26.98/ea
Quantity:Qty: 4+ $24.58/ea
In Stock
Get Notified When Available

We'll send you an email when GRS 12PR-8 12" Poly Cone Rubber Surround Woofer is back in stock or available for preorder.

Order in the next 13 hr 54 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

GRS 12PR-8 12" Poly Cone Rubber Surround Woofer

A GRS 12PR-8 12" 8 ohm polypropylene cone woofer is a good, economical way to repair older speaker systems or create new projects.

Product Details

BrandGRS
Model12PR-8
Part Number292-422
UPC844632088544
Unit of MeasureEach
Weight5.55

Product Specifications

Nominal Diameter12"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance
Frequency Response30 to 3,000Hz
Sensitivity85dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)1.4mH
Mechanical Q (Qms)3.18
Electromagnetic Q (Qes)1.58
Total Q (Qts)1.06
Compliance Equivalent Volume (Vas)3.98ft³
Mechanical Compliance of Suspension (Cms)0.29mm/N
BL Product (BL)9.2T·m
Diaphragm Mass Inc. Airload (Mms)100g
Maximum Linear Excursion (Xmax)3.5mm

Materials of Construction

Cone MaterialPoly
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12"
Baffle Cutout Diameter11.0625"
Depth4.6875"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2ft³
Sealed F336.4Hz
