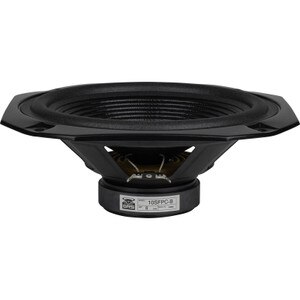

GRS 10SFPC-B 10" Square Frame Paper Cone Woofer Black

GRSPart # 290-912
Model: 10SFPC-B
A perfect replacement woofer for classic hi-fi loudspeakers! The oversized decorative squared-off frame accommodates a wide variety of OEM driver cutouts.

Key Features

  • Attractive square stamped steel frame
  • Smooth response and hefty bass output
  • Treated paper cone
  • Foam half roll edge
Similar items that may interest you:
GRS 10SFPC-W 10" Square Frame Paper Cone Woofer White
Price: $17.95Part # 290-910
See all items in Woofers
Your Price: $21.98
MSRP: $49.99
Save $28.01 (56%)
Bulk Pricing
Quantity:Qty: 1-3 $21.98/ea
Quantity:Qty: 4+ $19.98/ea
In Stock
Get Notified When Available

We'll send you an email when GRS 10SFPC-B 10" Square Frame Paper Cone Woofer Black is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

GRS 10SFPC-B 10" Square Frame Paper Cone Woofer Black

A perfect replacement woofer for classic hi-fi loudspeakers! The oversized decorative squared-off frame accommodates a wide variety of OEM driver cutouts. Smooth response and generous Xmax ensure optimum performance, and the use of modern materials and adhesives means your "experienced" speaker system will serve for many more years to come. Also great for DIY projects.

Product Details

BrandGRS
Model10SFPC-B
Part Number290-912
UPC844632077395
Unit of MeasureEach
Weight4.8

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter10.94
Power Handling (RMS)75 Watts
Power Handling (MAX)150 Watts
Impedance8Ω
Frequency Response29 to 4,000Hz
Sensitivity90.2dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)35.5Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)0.72mH
Mechanical Q (Qms)3
Electromagnetic Q (Qes)0.85
Total Q (Qts)0.66
Compliance Equivalent Volume (Vas)3.32ft³
Mechanical Compliance of Suspension (Cms)0.53mm/N
BL Product (BL)7.7T·m
Diaphragm Mass Inc. Airload (Mms)38.2g
Maximum Linear Excursion (Xmax)4.3mm
Surface Area of Cone (Sd)353.4cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12", across the flats 10.75"
Baffle Cutout Diameter9.125"
Depth4"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.5ft³
Sealed F347Hz
Vented Volume3ft³
Vented F334Hz
