  • Fosi Audio LC30-Y Speaker Selector with Orange VU Meters

NEW Fosi Audio LC30-Y Speaker Selector with Orange VU Meters

Fosi AudioPart # 235-288
Model: LC30-Y
3 Questions, 4 Answers or

The Fosi Audio LC30 is a 2-in/2-out amplifier and speaker switcher designed for high-fidelity audio systems. It features dual analog VU meters and supports multiple amplifier types, making it ideal for audiophiles seeking versatile system control.

Key Features

  • Supports up to 2 amplifier inputs and 2 speaker outputs
  • Compatible with BTL, Class A, Class AB, Class B, Class D, and tube amplifiers
  • Dual analog VU meters with adjustable brightness (100%, 75%, 50%, 25%, Off)
  • Built-in 390Ω protective load resistors for no-load amplifier protection
  • All-aluminum chassis with premium speaker binding posts and switching relays
  • Remote control for switching inputs/outputs and adjusting VU meter brightness
  • Powered via USB-C (DC 5V); USB-C power cable included
NEW $149.99
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Fosi Audio LC30-Y Speaker Selector with Orange VU Meters is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

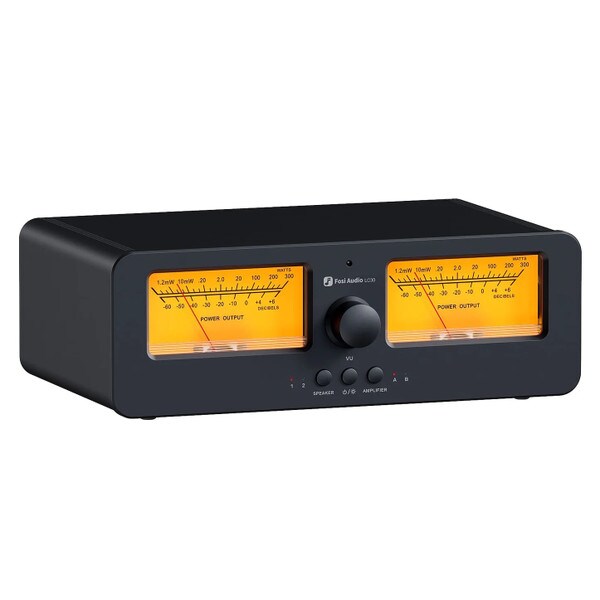

Fosi Audio LC30-Y Speaker Selector with Orange VU Meters

Fosi Audio LC30-Y Speaker Selector with Orange VU Meters

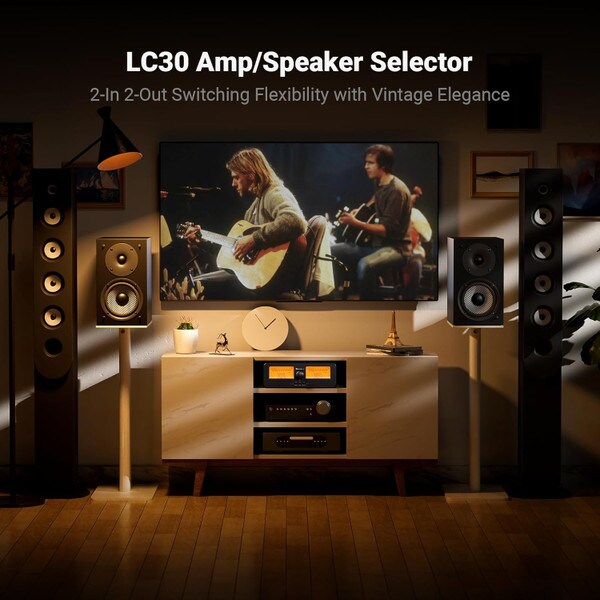

Reviving the Classic Vintage Charm

A 2-in 2-out amplifier and speaker switch box designed for HiFi enthusiasts, allowing smooth switching between two amplifiers or two speaker pairs without unplugging cables. The dynamic movement of the VU meter needles adds a visually engaging element to your listening experience.

Effortlessly Switch Between Two Sets of Amplifiers/Speakers

The LC30 was specifically created in response to requests from our audiophile community, designed to enhance your home audio system. It functions as both an amp and speaker selector or as a standalone VU meter, letting you enjoy a vivid and immersive audio-visual experience.

Supports High Power Transmission

Each channel supports up to 250W, delivering powerful performance with clear and detailed sound.

Compatible with Various Amplifier Types

Compatible with all mainstream amplifiers, it meets a wide range of listening preferences for pure music enjoyment.

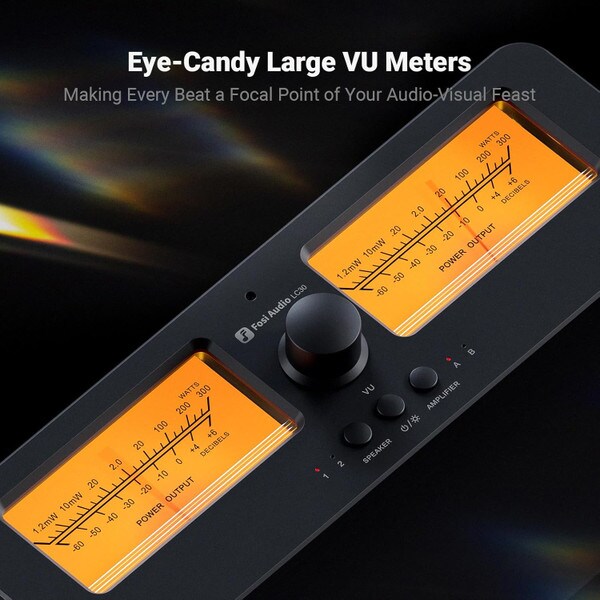

Large-Size VU Meters

Dual 85×45mm VU meters provide real-time visual feedback of the left and right channel signal levels.

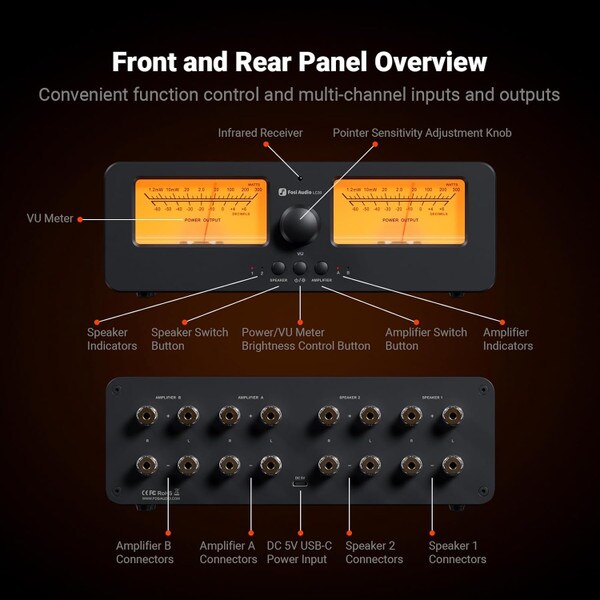

Front Panel Multifunction Buttons

Features three integrated buttons for power control, brightness adjustment, and switching between speakers or amplifiers.

Large-Size VU Meters

Adjustable sensitivity allows compatibility with different input signal levels, capturing the dynamic nuances of every note.

Five-Level Backlight Brightness Adjustment

The VU meter backlight brightness can be set to five levels: 100%, 75%, 50%, 25%, or completely off.

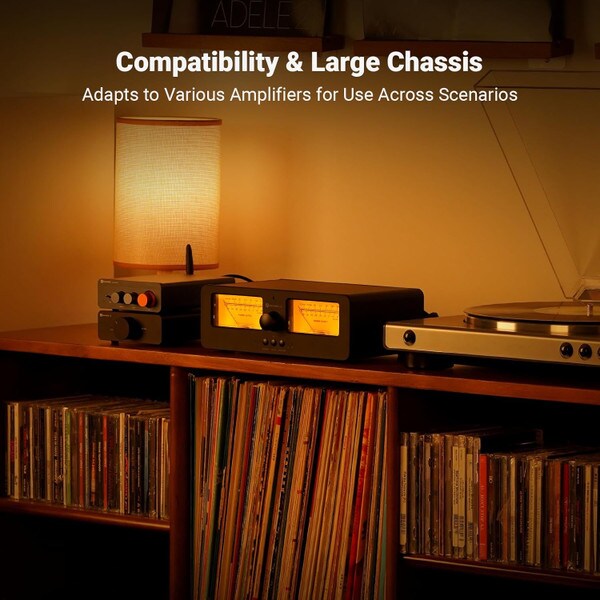

Large-Sized Chassis Design Saving Space

Designed to accommodate Fosi Audio compact amplifiers on top, providing flexible and space-saving configuration options.

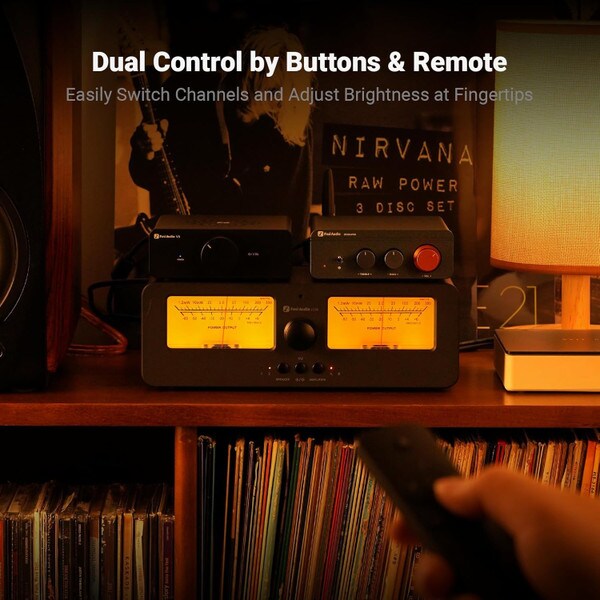

Multifunctional Remote Control

Simplifies switching for a smoother user experience, letting you stay focused on the music without interruptions.

Exquisite All-Aluminum Alloy Chassis

Crafted from a single piece of CNC-milled aluminum and anodized for durability, featuring a sandblasted finish for a sleek, all-metal body.

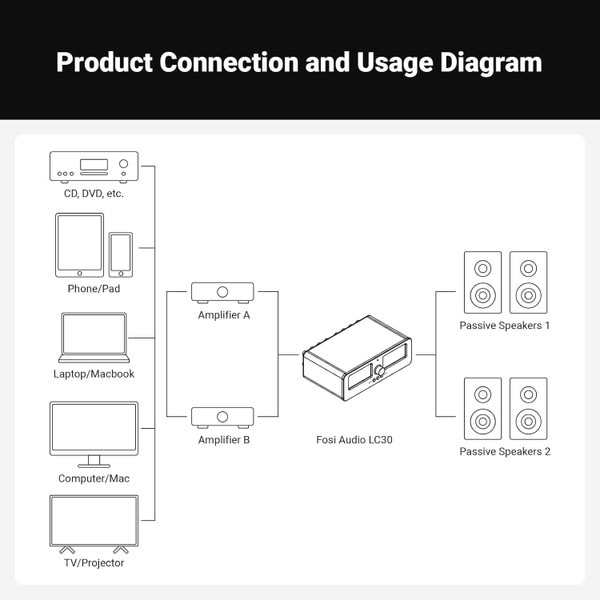

Connection Diagram When Used as a Switcher

Connection Diagram When Used as a Pure VU Meter

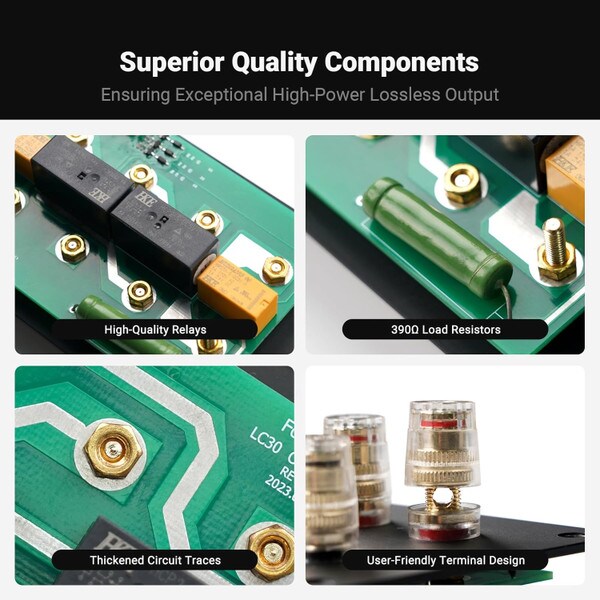

High-quality Relays

Utilizes premium internal components to deliver high-power, lossless output, providing an exceptional and immersive listening experience.

390Ω Load Resistors

Engineered to prevent no-load conditions in amplifiers, ensuring stable performance and prolonging equipment lifespan.

Thickened Circuit Traces

Incorporates thickened copper foils in the circuit design to reduce power loss and maintain signal integrity during audio transmission.

User-friendly Terminal Design

Upward and downward-facing terminals streamline the cable connection process, making setup quicker and more convenient.

Specifications

  • Input: Up to 2 sets of amplifiers
  • Output: Up to 2 pairs of passive speakers
  • Supported Amplifier Types: BTL, Class A, Class AB, Class B, Class D digital amplifiers, tube amplifiers, etc.
  • Maximum Power Support: 250W @ 4Ω (per channel)

  • VU Meter Size: 85 x 45mm
  • VU Meter Brightness Adjustment: 5 levels (100%, 75%, 50%, 25%, Off)
  • No-Load Amplifier Protection: Built-in 390Ω resistor protection
  • Supply Voltage: DC-5V

Product Details

BrandFosi Audio
ModelLC30-Y
Part Number235-288
Unit of MeasureEach
Weight1
