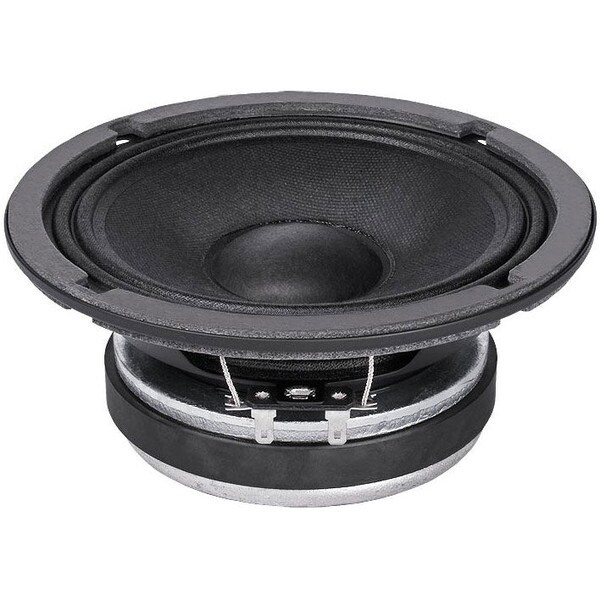

FaitalPRO 6FE200 6" Professional Midrange Speaker 8 Ohm

FaitalPROPart # 294-1152
Model: 6FE200
With a linear frequency response from 100 to 5,000 Hz and a high sensitivity of 95 dB, FaitalPRO's 6FE200 6" midrange speaker stands out as a great value for professional, high output home audio, and car audio applications.

Key Features

  • High power ferrite ring motor for low Qts and high sensitivity
  • 130 watt RMS, 260 watt program power handling
  • Cloth M-roll surround
  • Made in Italy
Your Price: $62.25
Bulk Pricing
19 In Stock
Get Notified When Available

We'll send you an email when FaitalPRO 6FE200 6" Professional Midrange Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 6FE200 6" Professional Midrange Speaker 8 Ohm

FaitalPRO's open back 6FE200 6" professional midrange speaker is purpose-built to cover the critical midrange in three-way speakers, but also works great as a door speaker in car audio applications. To ensure absolute signal fidelity, FaitalPRO built the 6FE200 with a strong ferrite ring-powered motor. Not only does this increase sensitivity, it keeps the Qts at a respectable figure of 0.67. Made in Italy.

Product Details

BrandFaitalPRO
Model6FE200
Part Number294-1152
UPC848864010984
Unit of MeasureEach
Weight4.87

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter6.06
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance8Ω
Frequency Response85 to 6,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter1.46"

Thiele-Small Parameters

Resonant Frequency (Fs)120Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)6.23
Electromagnetic Q (Qes)0.75
Total Q (Qts)0.67
Compliance Equivalent Volume (Vas)0.11ft³
Mechanical Compliance of Suspension (Cms)0.15mm/N
Diaphragm Mass Inc. Airload (Mms)11.5g
Maximum Linear Excursion (Xmax)4.67mm
Surface Area of Cone (Sd)118cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.59"
Baffle Cutout Diameter5.59"
Depth3.03"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3142Hz
Vented Volume0.5ft³
Vented F393.1Hz
