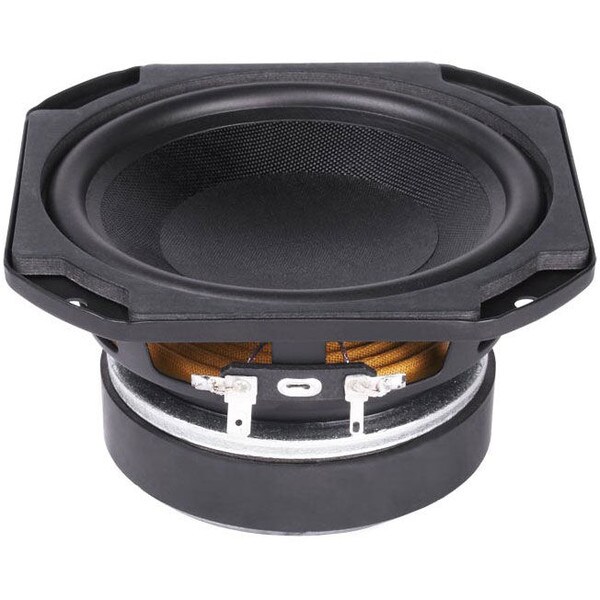

FaitalPRO 5FE100 5" Professional Midbass Midrange Woofer 8 Ohm

FaitalPROPart # 294-1140
Model: 5FE100
For high fidelity applications, choose FaitalPRO's 5FE100 5" professional woofer. Decent Xmax and high frequency extension are combined with a truncated from for close speaker-to-speaker placement.

Key Features

  • Linear frequency response
  • Rubber surround and treated paper cone for durability
  • Over 5 mm of Xmax and 0.53 mH inductance
Your Price: $49.00
Bulk Pricing
14 In Stock
Get Notified When Available

We'll send you an email when FaitalPRO 5FE100 5" Professional Midbass Midrange Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 5FE100 5" Professional Midbass Midrange Woofer 8 Ohm

FaitalPRO's 5FE100 5" professional midbass woofer driver has an extremely flat response from 65 to 6,000 Hz for use in applications where high fidelity is required, such as studio monitors and reference speakers. Great off-axis response up to 3,000 Hz allows it to be combined with many high frequency drivers and tweeters for a great sounding two-way speaker.

A treated paper cone with a half-roll  NBR (Nitrile Butadiene Rubber) surround offers outstanding durability, while the truncated, stamped-steel frame allows for very tight speaker-to-speaker placement which is ideal for multi-way speakers and line arrays. Made in Italy.

Product Details

BrandFaitalPRO
Model5FE100
Part Number294-1140
UPC848864011035
Unit of MeasureEach
Weight2.7

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter5.24
Power Handling (RMS)80 Watts
Power Handling (MAX)160 Watts
Impedance8Ω
Frequency Response63 to 6,300Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.26"

Thiele-Small Parameters

Resonant Frequency (Fs)65Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.53mH
Mechanical Q (Qms)8.18
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.46
Compliance Equivalent Volume (Vas)0.18ft³
Mechanical Compliance of Suspension (Cms)0.57mm/N
BL Product (BL)6.9T·m
Diaphragm Mass Inc. Airload (Mms)10.5g
Maximum Linear Excursion (Xmax)5.25mm
Surface Area of Cone (Sd)79.8cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.9" across the flats, 5.7"
Baffle Cutout Diameter4.41"
Depth2.81"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3111.9Hz
Vented Volume0.15ft³
Vented F367.4Hz
