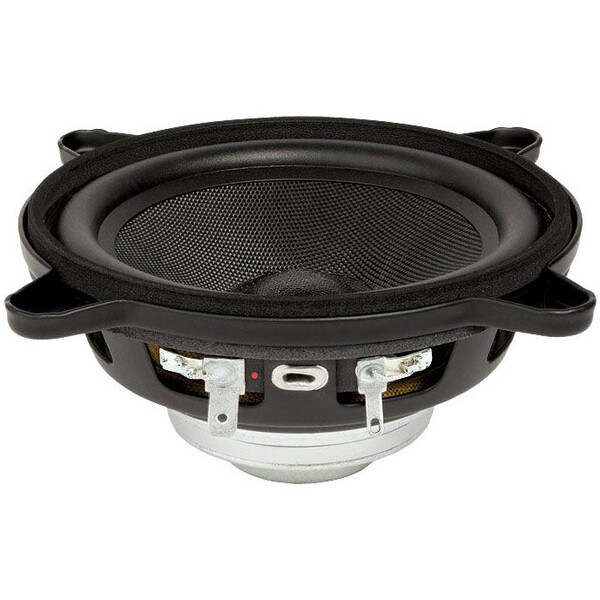

FaitalPRO 4FE32 4" Neodymium Professional Full-Range Woofer 8 Ohm

FaitalPROPart # 294-1121
Model: 4FE32
FaitalPRO's do-it-all 4FE32 neodymium 4" full range speaker has high sensitivity and flat frequency response. Perfect for use in pro, home, and car audio applications.

Key Features

  • Flat response from 90 to 6,500 Hz
  • High 91 dB sensitivity
  • Great for use as a midrange, midbass, or full-range speaker
  • Made in Italy
Your Price: $53.75
Bulk Pricing
26 In Stock
Get Notified When Available

We'll send you an email when FaitalPRO 4FE32 4" Neodymium Professional Full-Range Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 4FE32 4" Neodymium Professional Full-Range Woofer 8 Ohm

FaitalPRO's 4FE32 4" neodymium professional woofer has exceptionally flat response from 90 Hz to 6,500 Hz, both on and off-axis, and features a 91 dB sensitivity due to a powerful neodymium ring motor. Great for use in compact professional line array speakers, the 4FE32 is also right at home in home audio, personal audio, and car audio applications. It's also ideal for fixed installation applications as a midbass, midrange, or full-range speaker. Made in Italy.

Product Details

BrandFaitalPRO
Model4FE32
Part Number294-1121
UPC848864011080
Unit of MeasureEach
Weight0.6

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.54
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response90 to 20,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)100Hz
DC Resistance (Re)7Ω
Voice Coil Inductance (Le)0.18mH
Mechanical Q (Qms)4.9
Electromagnetic Q (Qes)0.7
Total Q (Qts)0.6
Compliance Equivalent Volume (Vas)0.07ft³
Mechanical Compliance of Suspension (Cms)0.6mm/N
Diaphragm Mass Inc. Airload (Mms)4.2g
Maximum Linear Excursion (Xmax)2.73mm
Surface Area of Cone (Sd)48cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.11" (mounting tabs), 3.96"
Baffle Cutout Diameter3.52"
Depth1.96"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.07ft³
Sealed F3132.4Hz
Vented Volume0.12ft³
Vented F382.7Hz
