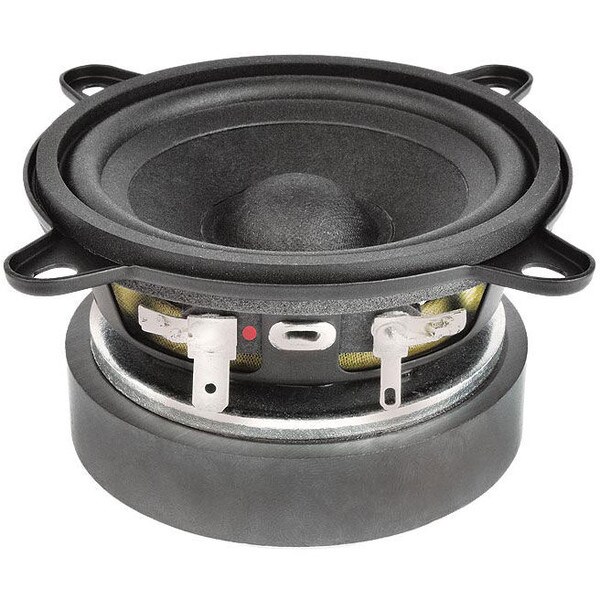

FaitalPRO 3FE25 3" Professional Full-Range Woofer 16 Ohm

FaitalPROPart # 294-1105
Model: 3FE25
FaitalPRO's do-it-all 3FE25 ceramic ferrite 3" full range speaker has high sensitivity and flat frequency response. Perfect for use in pro, home, and car audio applications.

Key Features

  • Ferrite version of the 3FE22
  • Ultra-flat frequency response
  • Great for use as a midrange, midbass, or full range driver
  • Copper cap in the motor for reduced distortion
  • Made in Italy
Your Price: $26.75
Bulk Pricing
7 In Stock
Get Notified When Available

We'll send you an email when FaitalPRO 3FE25 3" Professional Full-Range Woofer 16 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 3FE25 3" Professional Full-Range Woofer 16 Ohm

FaitalPRO's 3FE25 3" ceramic ferrite professional woofer has exceptionally flat response from 100 Hz to 20,000 Hz, both on and off-axis, and features a 91 dB sensitivity due to a large ferrite magnet. Distortion is reduced through the use of a copper cap to create a demodulation circuit in the motor.

Great for use in compact professional line array speakers, the 3FE25 is also right at home in home audio, personal audio, and car audio applications. It's also ideal for fixed installation applications as a midbass, midrange, or full-range speaker. Made in Italy.

Product Details

BrandFaitalPRO
Model3FE25
Part Number294-1105
UPC848864011189
Unit of MeasureEach
Weight2.3

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.62
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance16Ω
Frequency Response100 to 20,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz
DC Resistance (Re)12.3Ω
Voice Coil Inductance (Le)0.1mH
Mechanical Q (Qms)4.85
Electromagnetic Q (Qes)1
Total Q (Qts)0.82
Compliance Equivalent Volume (Vas)0.04ft³
Mechanical Compliance of Suspension (Cms)0.88mm/N
BL Product (BL)4.5T·m
Diaphragm Mass Inc. Airload (Mms)2.2g
Maximum Linear Excursion (Xmax)1.83mm
Surface Area of Cone (Sd)33cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.16" (mounting tabs), 3.19"
Baffle Cutout Diameter2.82"
Depth2.15"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.05ft³
Sealed F3119.5Hz
