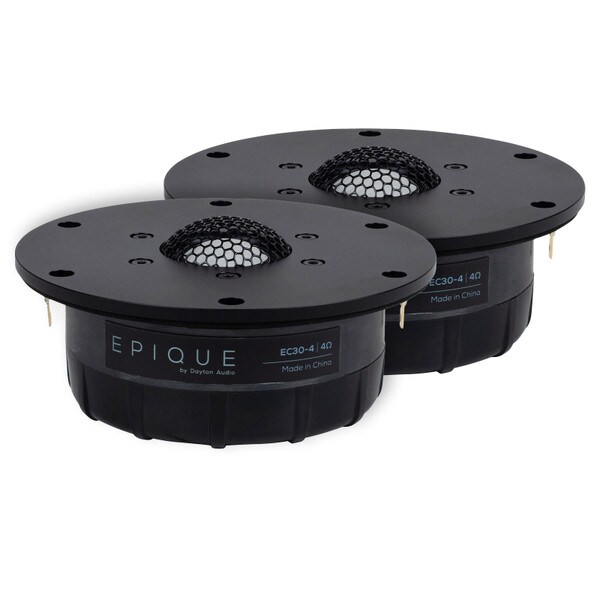

Epique High Resolution Ceramic Dome Tweeter 30mm 4 Ohm EC30-4 Matched Pair

The Dayton Audio Epique EC30-4 Ceramic Dome Tweeter sets a new benchmark for high-resolution audio performance. Built to last, it is designed with meticulous precision and crafted from premium materials to ensure both exceptional sound and long-term reliability. The EC30-4 combines substance with style, featuring a rugged 3.6mm aluminum faceplate and a honeycomb mesh protective grill that deliver durability without compromising elegance. Its advanced ceramic dome construction brings out the finest details in music reproduction, producing crystal-clear highs and unmatched transparency that remain consistent across listening environments.

Engineered for Transparency



At the heart of its design is a 30mm aluminum dome, reinforced with a vapor-deposited ceramic coating. This advanced construction delivers true piston-like motion, eliminating the common breakup modes found in standard aluminum domes and extending usable bandwidth well beyond 40 kHz—ideal for today’s high-resolution audio formats. A lightweight Kapton former further enhances performance by increasing power handling while reducing moving mass, ensuring clean, dynamic response even at demanding output levels.

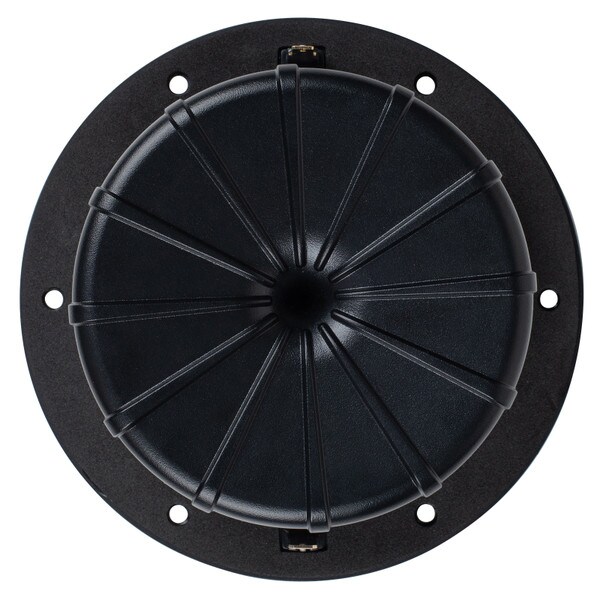

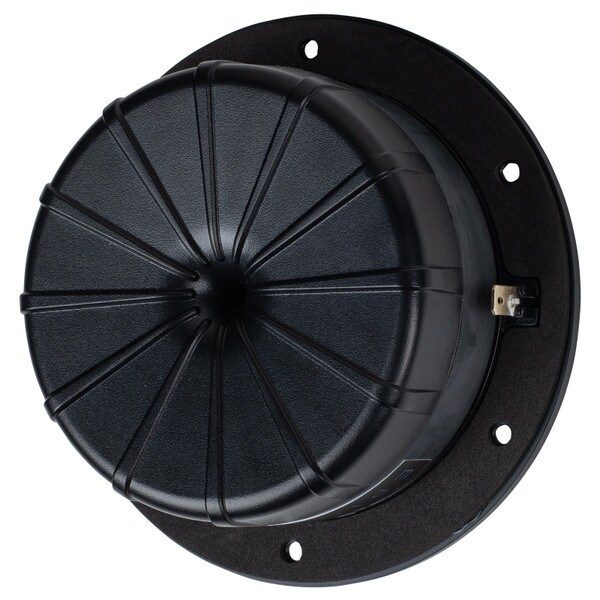

To further enhance performance, the EC30-4 employs a precision-engineered back plate with strategically placed damping materials that effectively dissipate the rear wave, reducing internal resonances and preserving clarity. A copper cap and Kapton former minimize inductance and distortion, allowing for smoother, more detailed playback across the frequency spectrum. Built with an oversized Y35 magnet and treated low-loss cloth surround, the tweeter offers both power and long-term reliability for demanding audio applications.

Built for the Long-Haul

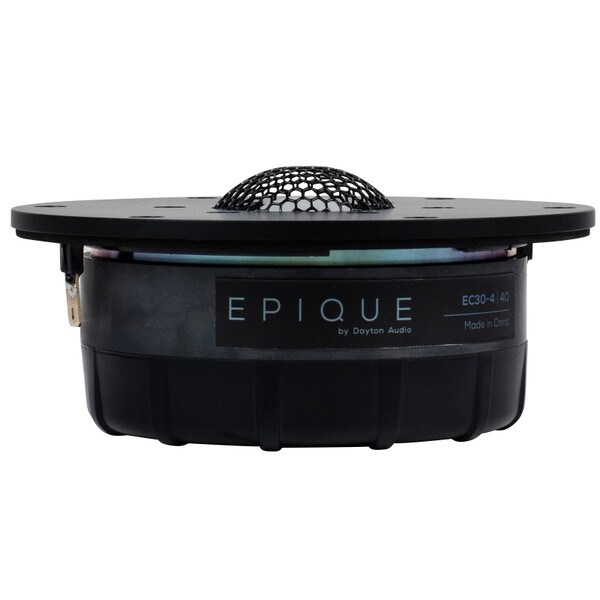

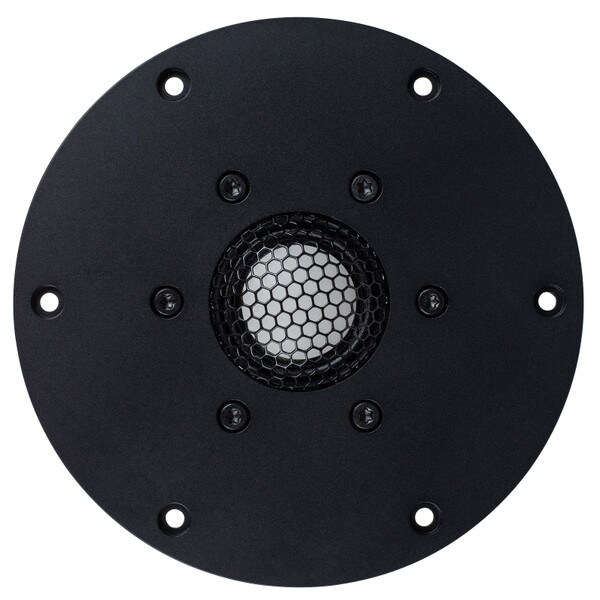

Tipping the scales at nearly 3 lbs, the EC30-4 makes a bold statement in both performance and design. Its rugged 3.6mm aluminum faceplate and sleek honeycomb mesh grill not only ensure rock-solid durability but also exude refined elegance. Perfect for high-end home audio, studio monitoring, or custom speaker builds, this tweeter delivers shimmering treble with uncompromising clarity—engineered for those who refuse to settle for anything less than extraordinary sound.

The EC30-4 delivers an impressively flat frequency response from 800 Hz all the way to 20 kHz, ensuring smooth, natural reproduction across the critical midrange and treble. Its advanced ceramic dome design effectively suppresses resonance, keeping any potential breakup modes well controlled and pushed far beyond the limits of human hearing—remaining tamed below 40 kHz. This extended stability not only preserves accuracy in the audible spectrum but also enhances transient response and overall clarity, making the EC30-4 an ideal choice for applications where precision and detail are paramount.

Key Specifications:



  • Impedance: 4 Ohm
  • Fs: 698.8 Hz
  • SPL: 92 dB
  • Frequency Response: 1,500 - 40,000 Hz
  • Power Handling: 80W RMS
