  • Eminence Professional 15" Ribbed Paper Cone Neodymium Woofer 8 Ohm

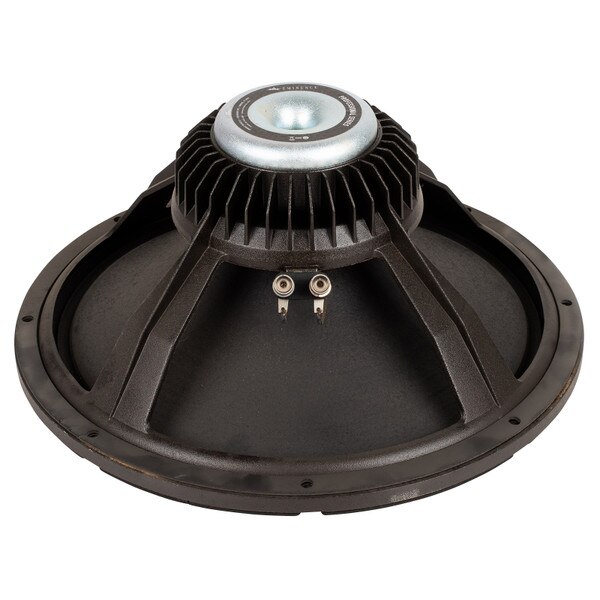

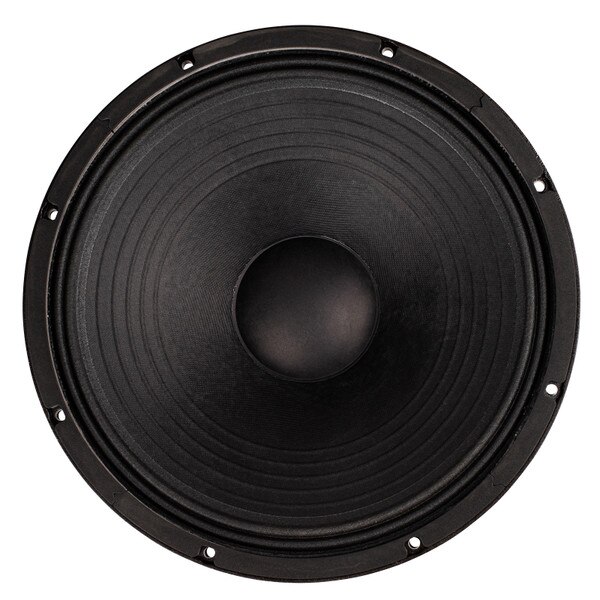

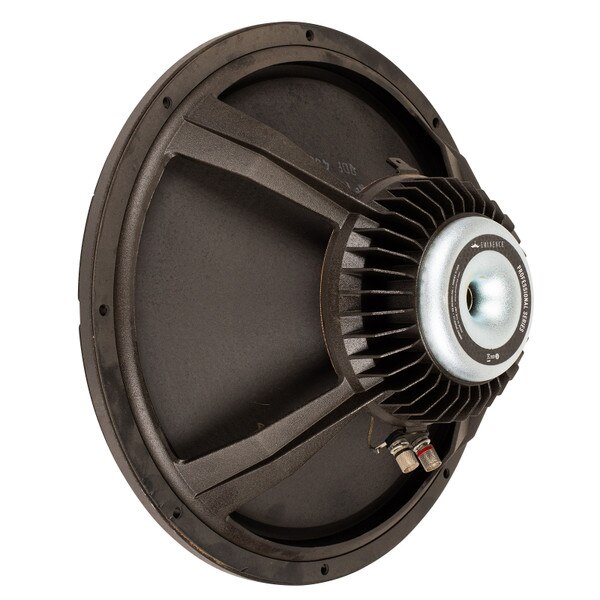

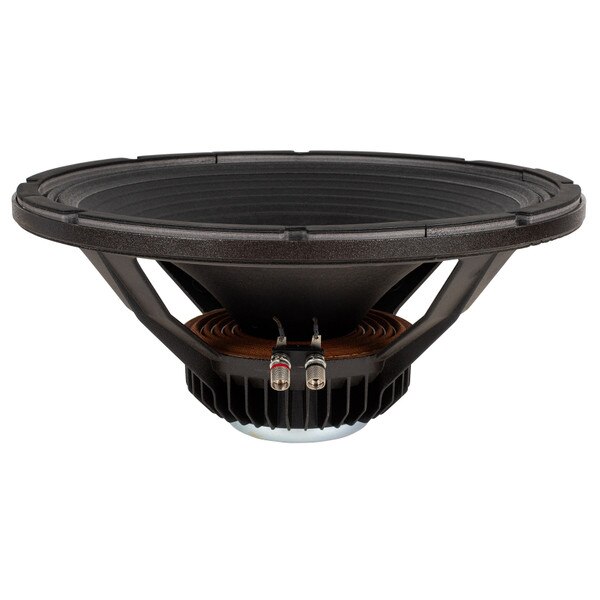

CLEARANCE Eminence Professional 15" Ribbed Paper Cone Neodymium Woofer 8 Ohm

Factory BuyoutsPart # 299-2252
Model: Eminence 15" Neo
Read 4 Reviews or

This lightweight 15” professional woofer combines a powerful neodymium motor with a low mass paper cone to deliver remarkable efficiency. With incredible output capability and smooth response, this diver is ideal for use in high output designs like portable PA systems, bass guitar amplifiers, or even high efficiency home speakers.

Key Features

  • Rugged cast aluminum frame with integrated heat sinks for efficient heat dissipation
  • High energy neodymium motor minimizes weight without sacrificing performance
  • Naturally damped pressed paper cone produces smooth and natural response
  • The 3” voice coil on Kapton former is capable of handling up to 450 watts RMS
  • Made in the USA
Get Notified When Available

We'll send you an email when Eminence Professional 15" Ribbed Paper Cone Neodymium Woofer 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Eminence Professional 15" Ribbed Paper Cone Neodymium Woofer 8 Ohm

Engineered to provide maximum performance from minimal weight, this 15” paper cone woofer is a great choice for portable PA systems and other high output designs. The potent neodymium motor keeps this driver’s weight under 7 pounds without sacrificing efficiency or power handling. With a 3” copper voice, high temperature polyimide former, and vented pole piece this 15” woofer can handle up to 450 watt RMS. This powerful motor assembly combined with the lightweight paper cone delivers an exceptional sensitivity of just over 98 dB (2.83V/1m). Finally, holding everything together is a cast aluminum frame, the integrated heatsinks help to wick heat away from the magnet assembly, ensuring that power compression is kept to a minimum. All of this makes this Eminence 15” woofer capable of providing extreme SPL capability while still delivering smooth response with minimal distortion.

Proudly made in the USA

Note: This new old stock driver is part of a factory buyout. At such an incredible price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelEminence 15" Neo
Part Number299-2252
UPC848864077277
Unit of MeasureEach
Weight7

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.5
Power Handling (RMS)450 Watts
Power Handling (MAX)900 Watts
Impedance8Ω
Frequency Response40 to 4,000Hz
Sensitivity98.3dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)45.5Hz
DC Resistance (Re)6.1Ω
Voice Coil Inductance (Le)0.89mH
Mechanical Q (Qms)8.66
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.42
Compliance Equivalent Volume (Vas)5.37ft³
Mechanical Compliance of Suspension (Cms)0.148mm/N
BL Product (BL)18.1T·m
Diaphragm Mass Inc. Airload (Mms)83.2g
Maximum Linear Excursion (Xmax)5.9mm
Surface Area of Cone (Sd)851.5cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.32"
Baffle Cutout Diameter13.875"
Depth6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.6ft³
Sealed F388Hz
Vented Volume3ft³
Vented F356Hz
