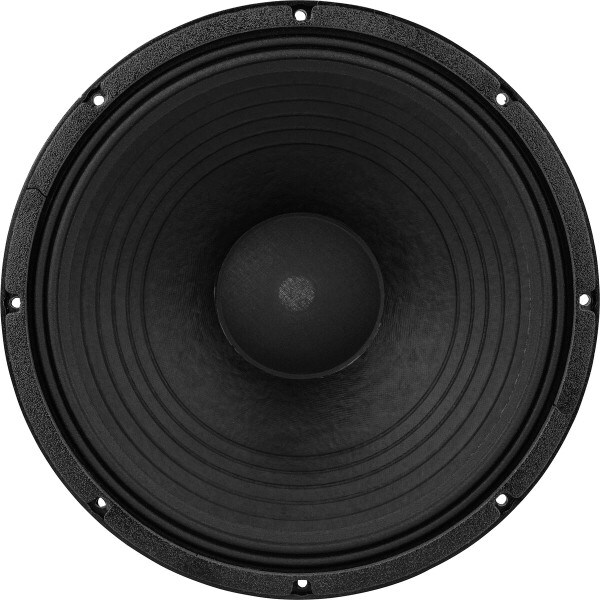

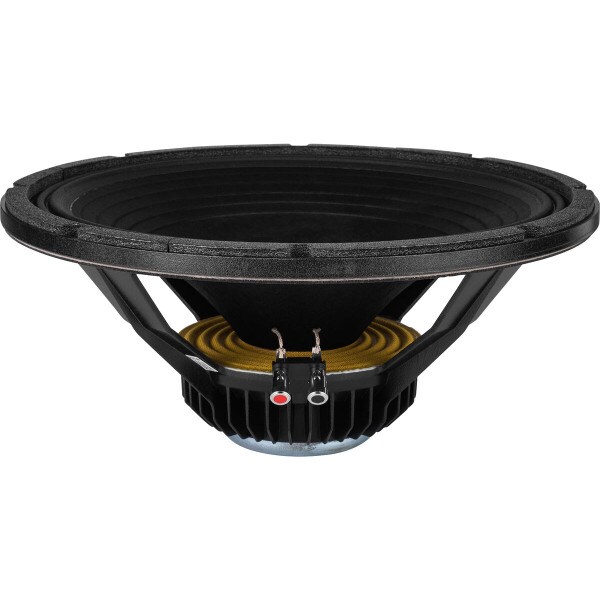

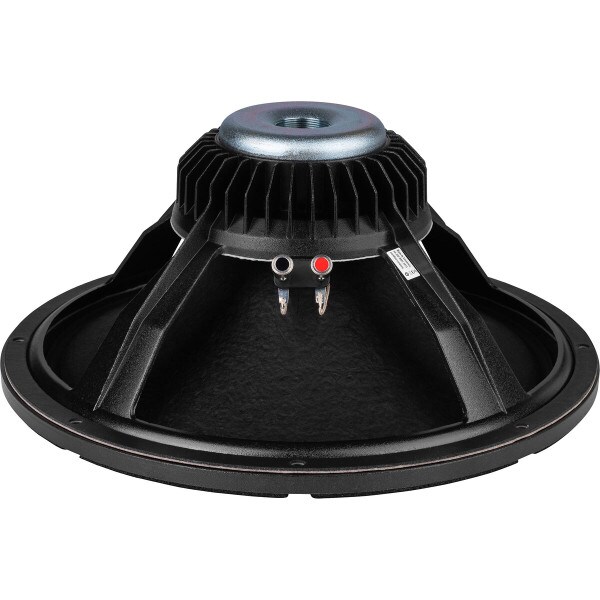

CLEARANCE Eminence KL3015CX-8 15" High Power Coaxial Woofer 8 Ohm

Eminence SpeakerPart # 290-5644
Model: KL3015CX-8
This high-power coaxial woofer is designed with a 3" fiberglass voice coil former for lower distortion and power compression. The Eminence KL3015CX-8 is perfect for vented satellites, monitors, or bass guitar cabinets.

Key Features

  • 1-3/8"-18 TPI mount is compatible with many popular horn drivers
  • Lightweight aluminum frame and neodymium motor
  • Point source design delivers equal off axis response in all directions
  • Perfect for lightweight bass guitar cabinets
Get Notified When Available

We'll send you an email when Eminence KL3015CX-8 15" High Power Coaxial Woofer 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Eminence KL3015CX-8 15" High Power Coaxial Woofer 8 Ohm

The Eminence KL3015CX-8 15" Coaxial Driver is ideal for professional audio installations in vented loudspeaker enclosures. This coaxial driver is also suitable for use in bass guitar cabinets for an ideal weight saving option. The KL3015CX-8's coaxial design facilitates use of an HF driver to extend frequency response. Standard 1-3/8"-18 TPI threaded insert for HF horn driver (sold separately). Made in the USA. 7-year manufacturer's warranty!

Product Details

BrandEminence Speaker
ModelKL3015CX-8
Part Number290-5644
UPC876358004317
Unit of MeasureEach
Weight9.15

Product Specifications

Nominal Diameter15"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response40 to 4,000Hz
Sensitivity96.7dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)38Hz
DC Resistance (Re)5.71Ω
Voice Coil Inductance (Le)0.63mH
Mechanical Q (Qms)6.48
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)7.76ft³
Mechanical Compliance of Suspension (Cms)0.2mm/N
BL Product (BL)16.08T·m
Maximum Linear Excursion (Xmax)8.67mm
Surface Area of Cone (Sd)889.6cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.32"
Baffle Cutout Diameter14"
Depth6.72"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0895ft³
Sealed F373.81Hz
Vented Volume0.281ft³
Vented F337.23Hz
