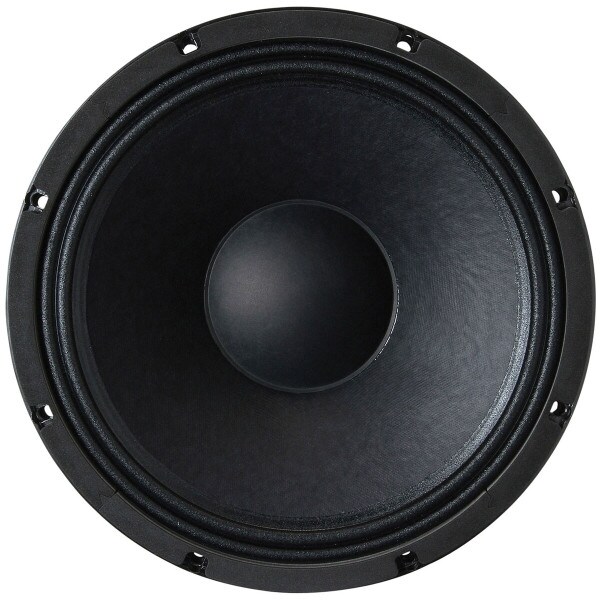

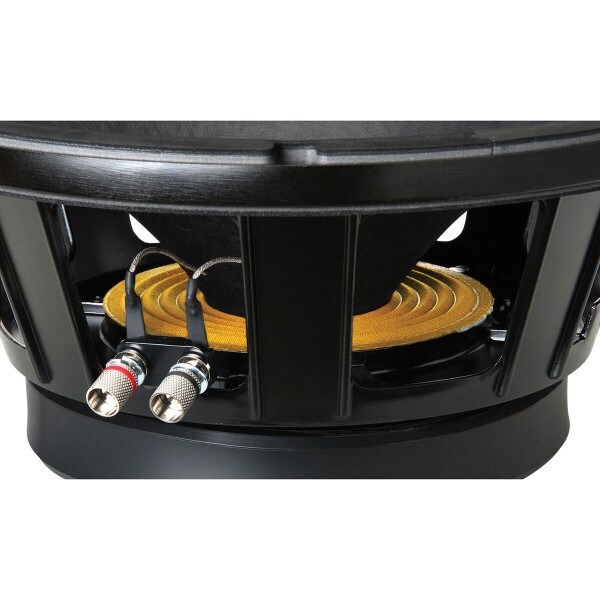

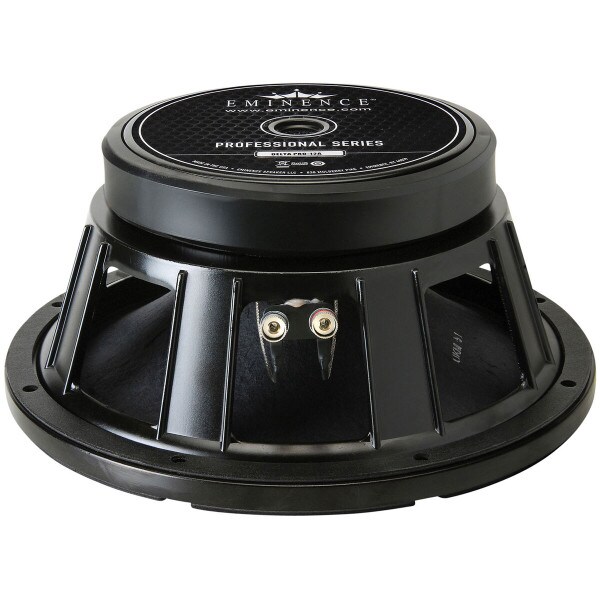

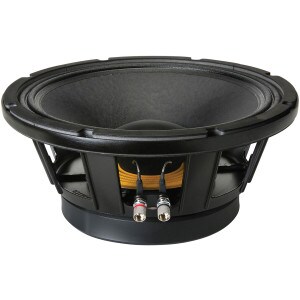

Eminence Delta Pro-12A 12" Cast Frame Driver

Eminence SpeakerPart # 290-510
Model: Delta Pro-12A
The Eminence Delta Pro-12A 12" cast frame speaker is recommended for professional audio in sealed, vented, and horn-loaded enclosures. Ideal for full-range, mid/hi, and monitor wedges. Extremely efficient through the midrange, but with a surprisingly strong bass kick as well.

Key Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Die-cast aluminum frame
  • Ferrite magnet
  • Vented and extended pole piece
  • Paper cone
  • Cloth M-roll surround
Similar items that may interest you:
Eminence Delta-12A 12" Driver 8 Ohm
Price: $124.99Part # 290-414
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $159.99
+ FREE SHIPPING
MSRP: $194.99
Save $35.00 (18%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Eminence Delta Pro-12A 12" Cast Frame Driver is back in stock or available for preorder.

Expected back in stock any day
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence Delta Pro-12A 12" Cast Frame Driver

The Eminence Delta Pro-12A 12" cast frame speaker is recommended for professional audio in sealed, vented, and horn-loaded enclosures. Ideal for full-range, mid/hi, and monitor wedges. Extremely efficient through the midrange, but with a surprisingly strong bass kick as well. Similar to EVM12L-BL guitar speaker. Suitable replacement for EAW FR129Z, EAW SM122e, 804058, and LC1243. Made in the USA. 7-year manufacturer's warranty!

Product Details

BrandEminence Speaker
ModelDelta Pro-12A
Part Number290-510
UPC876358000333
Unit of MeasureEach
Weight17.9

Product Specifications

Nominal Diameter12"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response52 to 4,500Hz
Sensitivity99.2dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)51Hz
DC Resistance (Re)5.71Ω
Voice Coil Inductance (Le)0.84mH
Mechanical Q (Qms)7.56
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)2.89ft³
Mechanical Compliance of Suspension (Cms)0.21mm/N
BL Product (BL)15.3T·m
Diaphragm Mass Inc. Airload (Mms)48g
Maximum Linear Excursion (Xmax)4.6mm
Surface Area of Cone (Sd)532.4cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.38"
Baffle Cutout Diameter11.07"
Depth6.22"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.3ft³
Sealed F3130Hz
Vented Volume1.9ft³
Vented F362Hz
