BUYOUT EAB30828502 1-7/8" x 5-5/8" Paper Cone Neodymium Full-Range 8 Ohm

2 Questions, 4 Answers or
Factory Buyouts
Part #289-2112

BUYOUT EAB30828502 1-7/8" x 5-5/8" Paper Cone Neodymium Full-Range 8 Ohm

Factory Buyouts
Part #289-2112
Model: EAB30828502
2 Questions, 4 Answers or

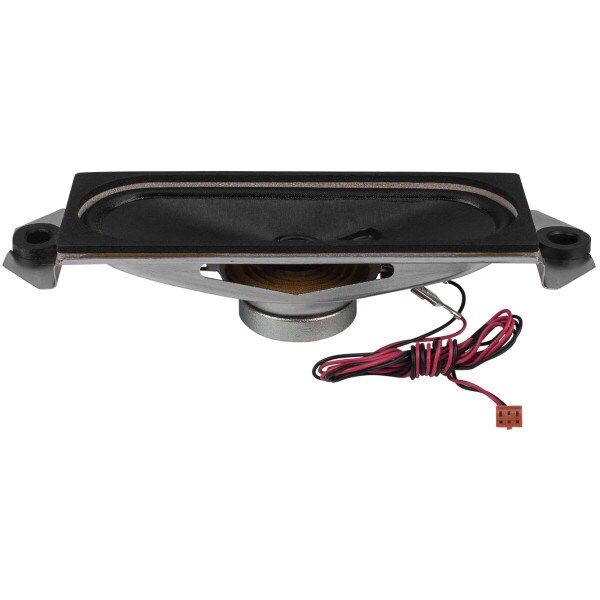

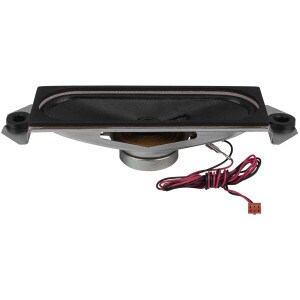

This 8 ohm 1-7/8" x 5-5/8" full-range replacement TV speaker is an OEM replacement speaker for many LG TVs. With a paper cone, paper voice coil former, and cloth surround this driver will produce natural frequency response with minimal resonances.
Key Features

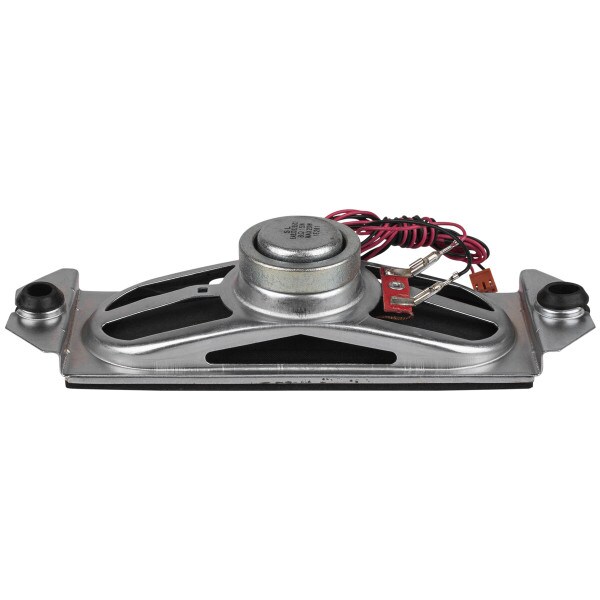

  • Neodymium motor minimizes mounting depth and weight
  • Foam front gasket ensures good seal when rear mounted
  • Ideal for line array experiments thanks to its low cost
  • Only 1-3/4" deep for use in extremely shallow designs
BUYOUT $2.43
Bulk Pricing
Quantity:Qty: 1-9 $2.43/ea
Quantity:Qty: 10-49 $1.48/ea
Quantity:Qty: 50+$0.98/ea
Order in the next 0 hr 53 min to ship today. Details

817In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

EAB30828502 1-7/8" x 5-5/8" Paper Cone Neodymium Full-Range 8 Ohm

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1-7/8" x 5-5/8" speaker, which is part of a massive TV speaker factory buyout from Brazil.

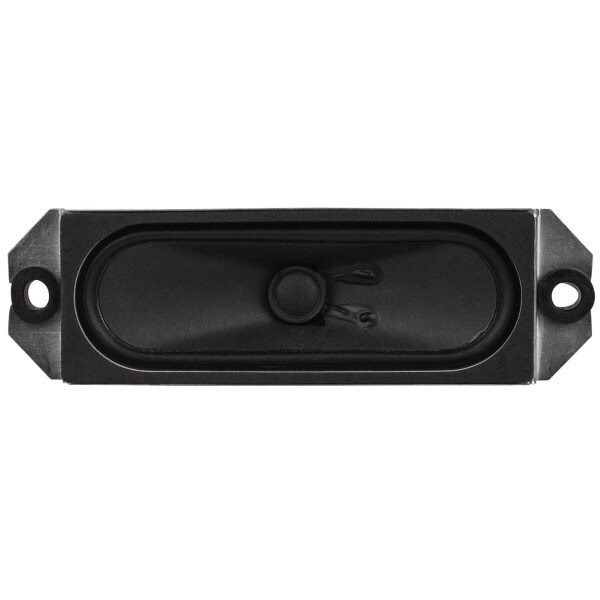

Originally found in various TVs from LG, this speaker features a rectangular design with a low profile frame making it a great choice for narrow designs such as sound bars and portable speakers. With a paper cone and voice coil former and a cloth surround this driver will produce smooth response from 150 to 10,000 Hz.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelEAB30828502
Part Number289-2112
UPC848864047782
Unit of MeasureEach
Weight0.32

Product Specifications

Nominal Diameter2-1/4 x 6-1/4"
Power Handling (RMS)15 Watts
Power Handling (MAX)20 Watts
Impedance8Ω
Frequency Response150 to 10,000Hz
Sensitivity81dB 2.83V/1m
Voice Coil Diameter0.625"

Thiele-Small Parameters

Resonant Frequency (Fs)200Hz
DC Resistance (Re)7.56Ω
Voice Coil Inductance (Le)0.45mH
Mechanical Q (Qms)5.61
Electromagnetic Q (Qes)7.85
Total Q (Qts)3.27
Compliance Equivalent Volume (Vas)0.025ft³
Mechanical Compliance of Suspension (Cms)0.212mm/N
Diaphragm Mass Inc. Airload (Mms)2.86g
Surface Area of Cone (Sd)49.36cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.125" (7.75" across mounting tabs) x 2.25"
Baffle Cutout Diameter1.875" x 5.75"
Depth1.75"
# Mounting Holes2
