CLEARANCE Dynavox LW6004PMR-NC 6-1/2" Truncated Frame Woofer

Dynavox
Part #295-622

CLEARANCE Dynavox LW6004PMR-NC 6-1/2" Truncated Frame Woofer

Dynavox
Part #295-622
Model: LW6004PMR-NC

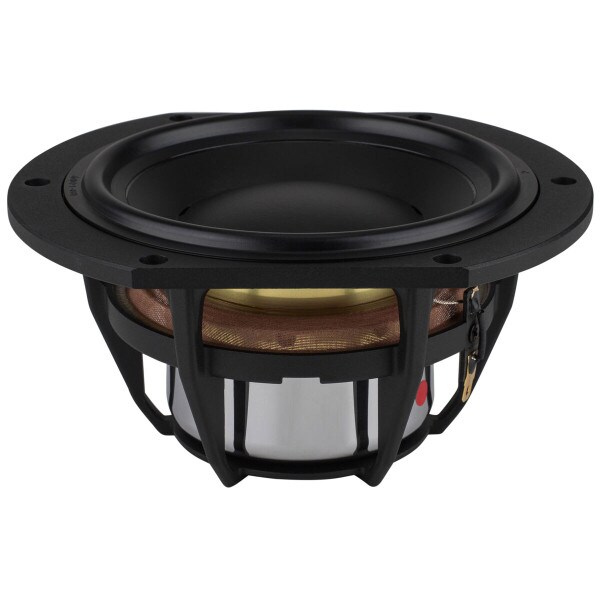

The Dynavox LW6004PMR-NC offers advanced driver technology at an affordable price range. With a minimalistic cast aluminum frame, 3" voice coil, triple magnet system, and one-piece poly/mica composite cone, combined with incredible performance, this 6-1/2" woofer is an amazing value.
Key Features

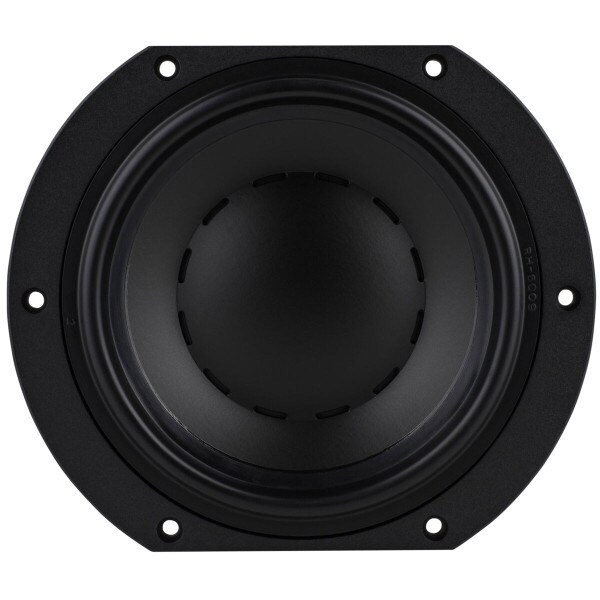

  • Truncated frame allows for closer center-to-center spacing
  • 3" copper clad aluminum voice coil wound on an aluminum former keeps excursion linear
  • Extremely open frame design with extensive venting for low power compression
  • Rigid one-piece polypropylene/mica composite cone nearly eliminates cone break-up
  • Smooth response up to 5,000 Hz makes this driver excellent for 2-way designs
60 Day No Hassle Return Policy

Overview

Dynavox LW6004PMR-NC 6-1/2" Truncated Frame Woofer

With an amazing combination of value and technology, the LW6004PMR-NC is an obvious choice for use in high performance designs that won't break the bank. With smooth response from 50 to 5,000 Hz this woofer is a great choice for use in 2-way systems, allowing easy transition to most tweeters. In addition, the truncated frame design allows for much closer center-to-center spacing between drivers.

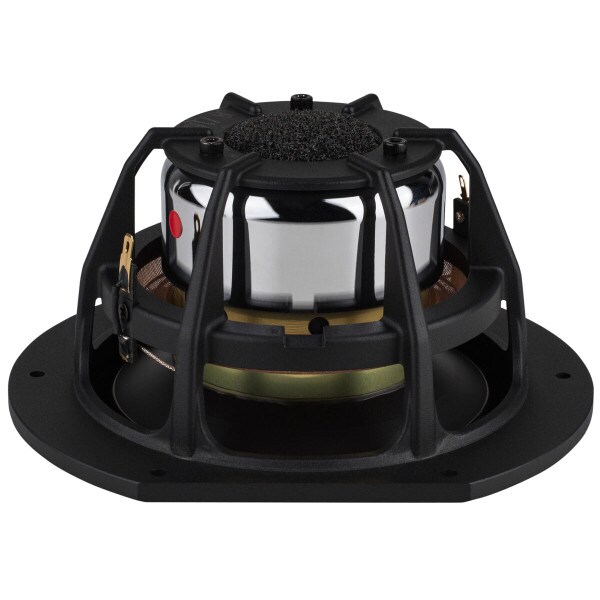

Dynavox has packed a surprising amount of technology into the LW6004PMR-NC. To begin with, this driver uses a huge 3" voice coil on a vented aluminum former. The one-piece polypropylene mica composite cone/dustcap is extremely light with great damping characteristics to produce natural response. The motor on this driver uses a triple magnet design in which the magnets are set inside the massive voice coil to maximize the magnetic force on the gap. In addition, the cast aluminum frame allows ample room for the rear of the driver to breathe along with extensive voice coil and motor venting.

Product Details

BrandDynavox
ModelLW6004PMR-NC
Part Number295-622
UPC848864035987
Unit of MeasureEach
Weight3.55

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.22
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance6Ω
Frequency Response55 to 5,000Hz
Sensitivity88.08dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)53.45Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.73mH
Mechanical Q (Qms)2.3
Electromagnetic Q (Qes)0.68
Total Q (Qts)0.525
Compliance Equivalent Volume (Vas)0.415ft³
Mechanical Compliance of Suspension (Cms)0.607mm/N
BL Product (BL)6.12T·m
Diaphragm Mass Inc. Airload (Mms)14.6g
Maximum Linear Excursion (Xmax)2.45mm
Surface Area of Cone (Sd)116.8cm²

Materials of Construction

Cone MaterialPoly Composite
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.88"; Across flats 5.92"
Baffle Cutout Diameter5.34"
Depth3.28"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F381Hz
Vented Volume0.63ft³
Vented F345.2Hz
