  • Dayton Audio XO2W-3.5K 2-Way Speaker Crossover 3,500 Hz

Dayton Audio XO2W-3.5K 2-Way Speaker Crossover 3,500 Hz

Dayton AudioPart # 260-146
Model: XO2W-3.5K
The Dayton Audio line of 2-way crossovers were designed using a second order (12 dB/octave) Linkwitz-Riley alignment. Dayton Audio metallized polyester film capacitors are used in both the high and low-pass sections.

Key Features

  • 18 gauge inductors are used to keep DC resistance to a minimum
  • Unique design feature of the low-pass section allows for use of 4 or 8 ohm woofers
  • All components are glued or fastened down to eliminate buzzing and vibrations
  • High quality blue PC board uses a back plate for added rigidity
Your Price: $30.59
MSRP: $39.99
Save $9.40 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $30.59/ea
Quantity:Qty: 10+ $27.69/ea
47 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio XO2W-3.5K 2-Way Speaker Crossover 3,500 Hz is back in stock or available for preorder.

Order in the next 12 hr 53 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio XO2W-3.5K 2-Way Speaker Crossover 3,500 Hz

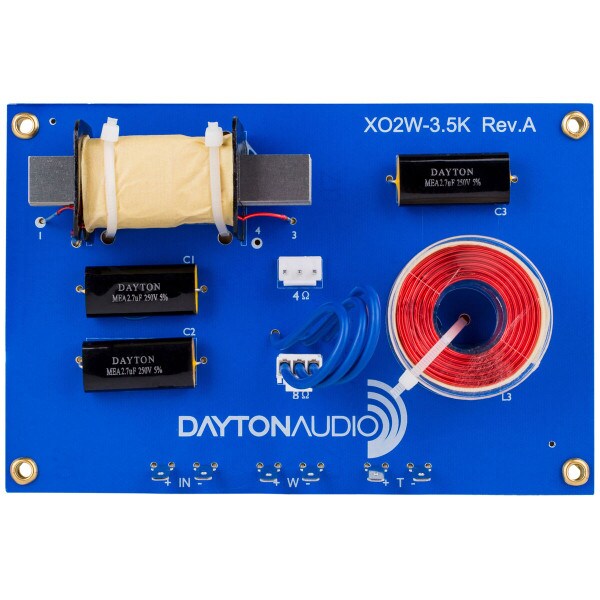

The Dayton Audio line of 2-way crossovers were designed using a second order (12 dB/octave) Linkwitz-Riley alignment. Dayton Audio metallized polyester film capacitors are used in both the high and low pass sections. 18 gauge inductors were used to keep DC resistance to a minimum. A unique design feature of the low-pass section allows for use of 4 or 8 ohm woofers, perfect for building D'Appolito style or multi woofer 2-way systems. The high-pass crossover frequency is rated for an 8 ohm load. All components are glued or fastened down to eliminate buzzing and vibrations. The high quality blue PC board uses a back plate for added rigidity and eyelet holes for easy mounting. Available in a variety of crossover points. 300W power handling. Board measures: 6-1/2" W x 4-1/4" H x 1-3/8" D. Terminals are 0.205".

Product Details

BrandDayton Audio
ModelXO2W-3.5K
Part Number260-146
UPC844632045165
Unit of MeasureEach
Weight1

Product Specifications

ConfigurationAssembled Board Only
Crossover Type2-Way
