Dayton Audio RSS315HO-44 12" Reference Series HO DVC Subwoofer

Dayton Audio
Part #295-467

Dayton Audio RSS315HO-44 12" Reference Series HO DVC Subwoofer

Dayton Audio
Part #295-467
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion.
Key Features

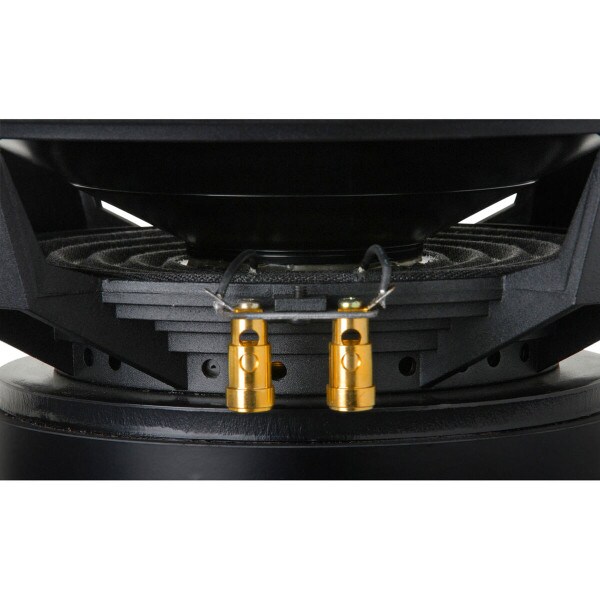

  • Dual 4 ohm voice coils

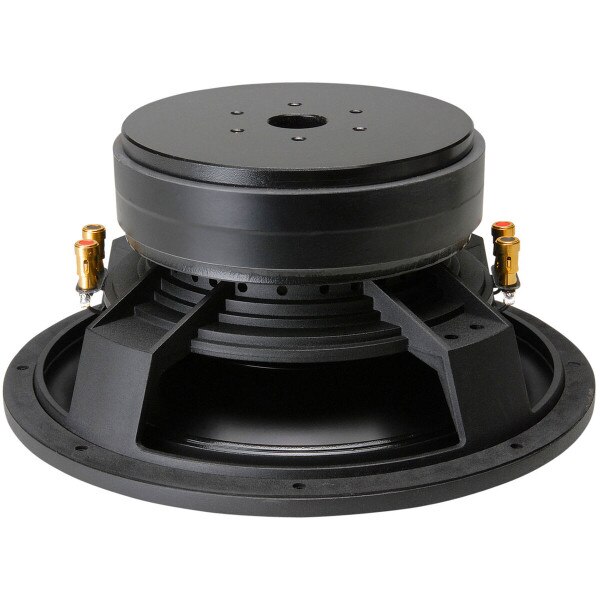

  • Extensively vented motor eliminates compression and allows quiet excursion
  • Extra-thick black anodized aluminum cone for maximum rigidity
  • Triple shorting-ring motor for ultra-low distortion
  • 4-layer coil for high power handling
  • Parameters optimized for small enclosures
  • Highest quality materials throughout for long-lasting performance
Similar items that may interest you:
See all items in Subwoofer Drivers
Your Price: $239.98
+ FREE SHIPPING
MSRP: $285.99
Save $46.01 (16%)
Bulk Pricing
Quantity:Qty: 1-3 $239.98/ea
Quantity:Qty: 4+$220.55/ea
Order in the next 2 hr 25 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

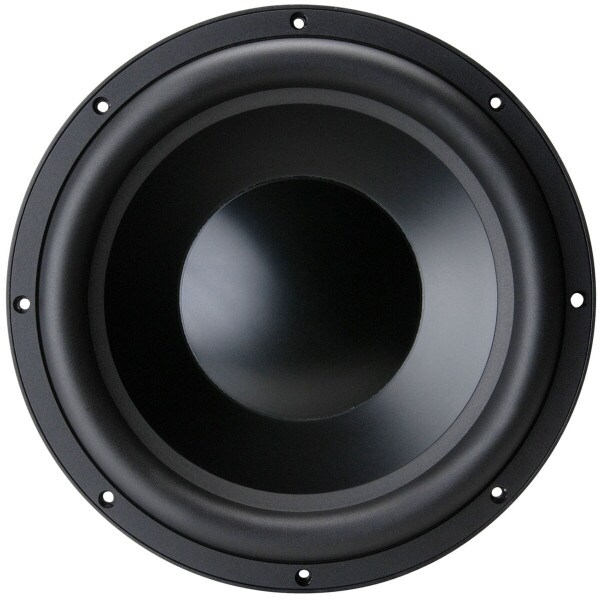

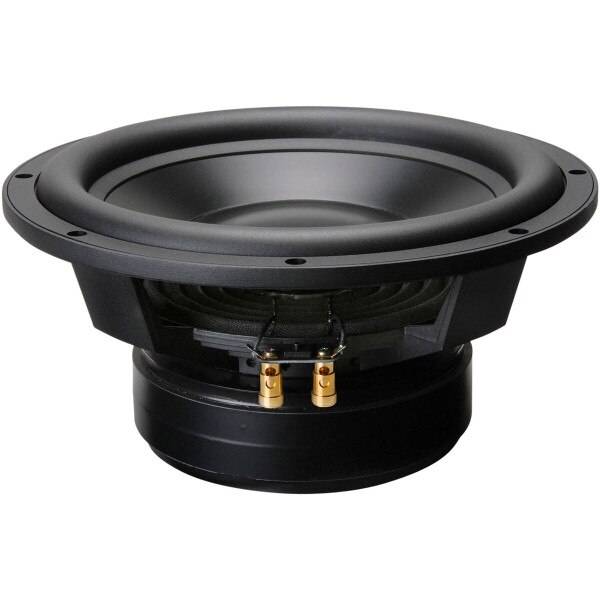

Dayton Audio RSS315HO-44 12" Reference Series HO DVC Subwoofer

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. The High Output (HO) drivers are optimized for automotive applications and equalized high-power home subwoofers.


Learn More
Request Quote



Product Details

BrandDayton Audio
ModelRSS315HO-44
Part Number295-467
UPC844632087714
Unit of MeasureEach
Weight25.4

Product Specifications

Nominal Diameter12"
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response20 to 500Hz
Sensitivity84.6dB 2.83V/1m
Voice Coil Diameter2.58"

Thiele-Small Parameters

Resonant Frequency (Fs)21.5Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)3.17mH
Mechanical Q (Qms)3.7
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)2.165ft³
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)26.5T·m
Diaphragm Mass Inc. Airload (Mms)327.7g
Maximum Linear Excursion (Xmax)14mm
Surface Area of Cone (Sd)507.1cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.36"
Baffle Cutout Diameter11.1"
Depth5.75"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.6ft³
Sealed F346Hz
Vented Volume1.4ft³
Vented F326Hz
