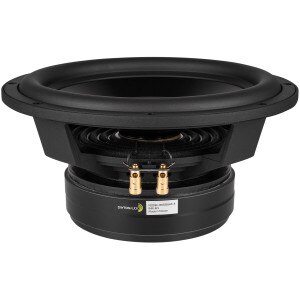

Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm

Name: Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm
Brand: Dayton Audio
SKU: 295-464
Price: 239.98 USD
Availability: OutOfStock
Rating: 4.8 (115 reviews)

Read 115 Reviews | 131 Questions, 293 Answers or

Dayton Audio

Part #295-464

Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm

Dayton Audio

Part #295-464

Model: RSS315HF-4

Read 115 Reviews | 131 Questions, 293 Answers or

High Fidelity 8 Ohm High Fidelity 4 Ohm High Output 4 Ohm High Output 8 Ohm Passive Radiator

The Dayton Audio Reference Series subwoofer speakers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

Key Features

Extensively vented motor eliminates compression and allows quiet excursion
Lightweight black anodized aluminum cone for rigidity and lower moving mass
Triple shorting ring motor for ultra-low distortion
2-layer coil for reduced back EMF
Suitable for sealed or vented enclosures
Highest quality materials throughout for long-lasting performance

Frequently Bought Together

This Product: Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm	$239.98
Parts Express #8 x 1-1/2" Deep Thread Pan Head Screws Black 100 Pcs.	$7.29
Audtek 50 ft. 12 AWG OFC Speaker Wire	$37.98

Total Price: $285.25

This Product:Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm$239.98

Parts Express #8 x 1-1/2" Deep Thread Pan Head Screws Black 100 Pcs.$7.29

Audtek 50 ft. 12 AWG OFC Speaker Wire$37.98

3 ItemsTotal Price: $285.25

Overview

Dayton Audio RSS315HF-4 12" Reference Series HF Subwoofer 4 Ohm

As with the rest of the Dayton Audio Reference Series speakers, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion for the Reference Series RSS315HF-4 12" subwoofer speaker. The black anodized cone, rubber surround, and custom basket give this driver and the rest of the Reference Series a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.

Product Details
Brand	Dayton Audio
Model	RSS315HF-4
Part Number	295-464
UPC	844632006937
Unit of Measure	Each
Weight	25

Product Specifications
Nominal Diameter	12"
Power Handling (RMS)	400 Watts
Power Handling (MAX)	800 Watts
Impedance	4Ω
Frequency Response	23 to 1,000Hz
Sensitivity	90.3dB 2.83V/1m
Voice Coil Diameter	2.5"

Thiele-Small Parameters
Resonant Frequency (Fs)	24.2Hz
DC Resistance (Re)	3.1Ω
Voice Coil Inductance (Le)	0.96mH
Mechanical Q (Qms)	2.83
Electromagnetic Q (Qes)	0.45
Total Q (Qts)	0.39
Compliance Equivalent Volume (Vas)	2.97ft³
Mechanical Compliance of Suspension (Cms)	0.23mm/N
BL Product (BL)	13.99T·m
Diaphragm Mass Inc. Airload (Mms)	188g
Maximum Linear Excursion (Xmax)	14.3mm
Surface Area of Cone (Sd)	514.7cm²

Materials of Construction
Cone Material	Aluminum
Surround Material	Rubber
Voice Coil Wire Material	Copper
Voice Coil Former	Aluminum
Basket / Frame Material	Steel
Magnet Material	Ferrite

Mounting Information
Overall Outside Diameter	12.36"
Baffle Cutout Diameter	11.1"
Depth	5.75"
# Mounting Holes	8

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	1ft³
Sealed F3	49Hz
Vented Volume	2.1ft³
Vented F3	27Hz
