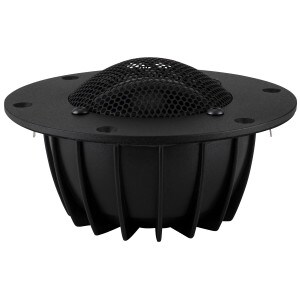

Dayton Audio RS52AN-8 2" Reference Aluminum Dome Midrange

Dayton AudioPart # 285-020
Model: RS52AN-8
The Dayton Audio Reference Series dome midrange delivers excellent off-axis response and midrange performance. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.

Key Features

  • Large damped rear chamber for low resonance point
  • 2" Aluminum diaphragm for good clarity and dispersion
  • Neodymium magnet minimizes stray magnetic field
  • Copper clad motor reduces distortion for transparent sound
Your Price: $51.98
MSRP: $65.99
Save $14.01 (21%)
Bulk Pricing
Quantity:Qty: 1-3 $51.98/ea
Quantity:Qty: 4+ $47.43/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Dayton Audio RS52AN-8 2" Reference Aluminum Dome Midrange is back in stock or available for preorder.

Estimated back in stock 8/29/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS52AN-8 2" Reference Aluminum Dome Midrange

The Dayton Audio Reference Series dome midrange delivers excellent off-axis response and midrange performance. Its black anodized 2" diaphragm is extremely linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical two-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance driver.

Product Details

BrandDayton Audio
ModelRS52AN-8
Part Number285-020
UPC844632067716
Unit of MeasureEach
Weight1.0001

Product Specifications

Nominal Diameter2"
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance8Ω
Frequency Response500 to 14,000Hz
Sensitivity89.4dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)341Hz
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)0.13mH
Mechanical Q (Qms)3.16
Electromagnetic Q (Qes)1.18
Total Q (Qts)0.86
Compliance Equivalent Volume (Vas)0.005ft³
Mechanical Compliance of Suspension (Cms)0.13mm/N
BL Product (BL)4.26T·m
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)26.4cm²

Materials of Construction

Cone MaterialAluminum
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.12"
Baffle Cutout Diameter3.94"
Depth2.24"
# Mounting Holes6
