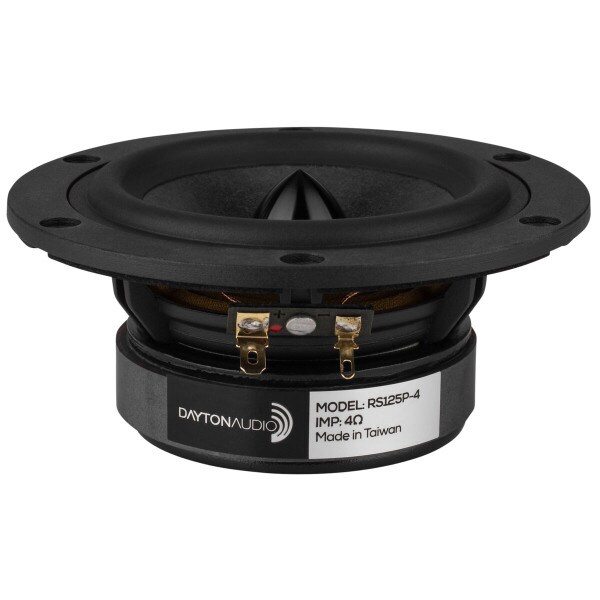

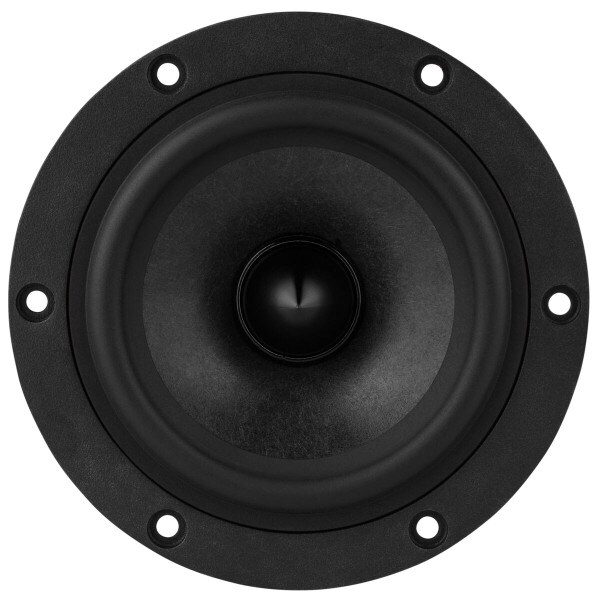

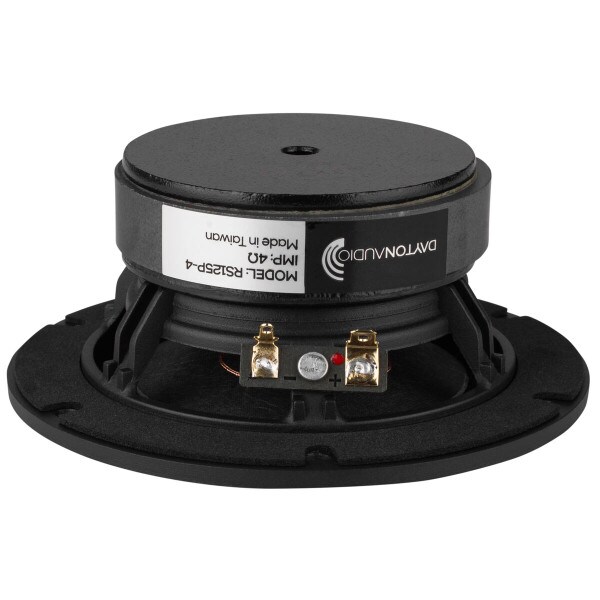

Dayton Audio RS125P-4 5" Reference Paper Woofer 4 Ohm

Dayton Audio
Part #295-371

Dayton Audio RS125P-4 5" Reference Paper Woofer 4 Ohm

Dayton Audio
Part #295-371
Model: RS125P-4
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.
Key Features
  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
  • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
Your Price: $37.50
MSRP: $54.99
Save $17.49 (32%)
Bulk Pricing
Order in the next 5 hr 5 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS125P-4 5" Reference Paper Woofer 4 Ohm

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Product Details

BrandDayton Audio
ModelRS125P-4
Part Number295-371
UPC848791001420
Unit of MeasureEach
Weight1.85

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter4.43
Power Handling (RMS)30 Watts
Power Handling (MAX)45 Watts
Impedance4Ω
Frequency Response70 to 12,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)70Hz
DC Resistance (Re)3.1Ω
Voice Coil Inductance (Le)0.32mH
Mechanical Q (Qms)3.19
Electromagnetic Q (Qes)0.57
Total Q (Qts)0.48
Compliance Equivalent Volume (Vas)0.14ft³
Mechanical Compliance of Suspension (Cms)1.02mm/N
BL Product (BL)3.49T·m
Diaphragm Mass Inc. Airload (Mms)5.1g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)54.11cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.94"
Baffle Cutout Diameter3.70"
Depth2.16"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3134Hz
Vented Volume0.26ft³
Vented F352Hz
