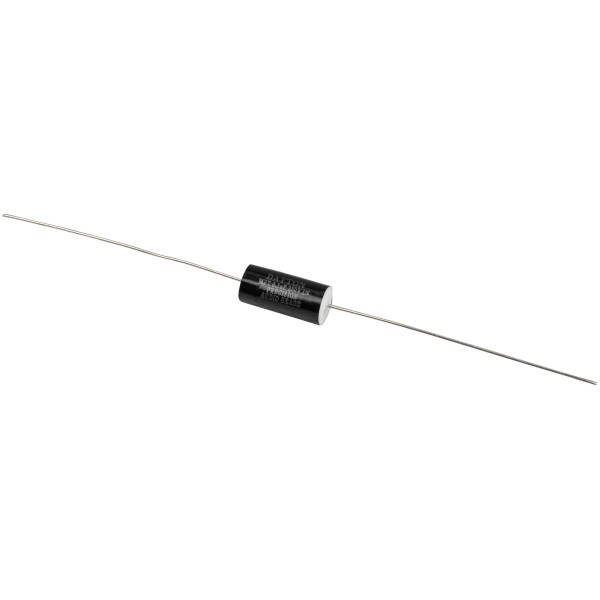

  • Dayton Audio PMPC-0.10 0.10uF 250V Precision Audio Capacitor

CLEARANCE Dayton Audio PMPC-0.10 0.10uF 250V Precision Audio Capacitor

Dayton Audio
Part #027-200

CLEARANCE Dayton Audio PMPC-0.10 0.10uF 250V Precision Audio Capacitor

Dayton Audio
Part #027-200
Model: PMPC-0.10
These capacitors offer excellent build quality, long-term reliability, and astonishing sonic clarity, all at a 1% tolerance for improved stereo matching between speakers.
Key Features
  • Tightest capacitor tolerance available: +/-1%!
  • Specially designed for crossovers and electronics
  • Extra-thick tinned copper leads
  • 250 VDC, high current capacity
  • Dimesions: 6 mm x 14 mm
Similar items that may interest you:
See all items in Metalized Polypropylene Crossover Capacitors

Overview

Dayton Audio PMPC-0.10 0.10uF 250V Precision Audio Capacitor

Dayton Audio is once again leading the charge at bringing high quality, high value products to the speaker building community. Their new line of 1% tolerance capacitors gives you the ability to construct high-precision crossovers, which can eliminate "stereo wandering" and solidify the imaging and soundstage of your speaker systems. Commercial manufacturers know of this problem and buy thousands of capacitors so they can hand-match them for their products-- now you can effectively do the same, because every capacitor is matched! These capacitors share the same excellent build quality, long-term reliability, and sonic clarity of the standard Dayton Audio metallized polypropylene capacitors. Well-known in the industry as the brand of choice for use in loudspeaker crossovers, they offer the performance of boutique capacitors at a fraction of the price. Let the excellent reputation of Dayton Audio and their Precision Capacitors help you build the best speakers that you possibly can.

Specifications:
• Value: 0.10 µF
• Rated: 250 VDC
• Tolerance: ±1%
• Dissipation Factor: Max 0.001 (0.1%) @ 1 KHz
• Operating Range: -55°C to 105°C
• Dielectric Strength: 150%
• Insulation Resistance: 10,000 M? x µF
• Life Test: 1,000 hours @ 85°C, 150% rated voltage
• Dimensions: 6 mm Dia. x 14 mm L.

Product Details

BrandDayton Audio
ModelPMPC-0.10
Part Number027-200
UPC844632055539
Unit of MeasureEach
Weight0.01

Product Specifications

Capacitance0.10 uF
Tolerance1%
Voltage Rating250V
