CLEARANCE Dayton Audio MA455 Multi-Zone On-Wall 4 Channel Amplifier 220W

Dayton AudioPart # 300-786
Model: MA455
The Dayton Audio MA455 Multi-Zone On-Wall Amplifier provides four channels of distributed audio functionality in a convenient design. Featuring four input channels, each of the MA455's channels is assignable to one of four zones for a multi-room audio system. The compact design, complete with a lockable security cover, makes the MA455 perfect for small businesses, stores, restaurants, bars, and office spaces.

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Key Features

  • Four input, four zone amplifier perfect for multi-room audio in offices, businesses, restaurants, and retail stores
  • Compact and easy to install on-wall design with a lockable security cover to prevent tampering
  • Individualized sonic character with built-in channel tone, volume, source, and EQ control for each input
  • Features an internal media player with USB, SD, Bluetooth, and FM radio playback options that can be assigned to any combination of zones
  • On board playback and IR remote control functionality provides total system control
  • With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise
Similar items that may interest you:
Dayton Audio MA1240a Multi-Zone 12 Channel Amplifier
Price: $629.98Part # 300-815
Pyle PT8000CH 19" Rack Mount 8000 Watt 8 Ch Amplifier
Price: $439.28Part # 310-2560
See all items in Multi-Zone Amplifiers
Get Notified When Available

We'll send you an email when Dayton Audio MA455 Multi-Zone On-Wall 4 Channel Amplifier 220W is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Dayton Audio MA455 Multi-Zone On-Wall 4 Channel Amplifier 220W

The Dayton Audio MA455 delivers multi-zone Class AB amplification in an easy-to-use, set-and-forget design. With each of the amp's four input channels assignable to one of four zones, the MA455 is ideal for small businesses, stores, or restaurants that need a multi-room audio system. In a compact and secure housing, the MA455 provides reliable audio performance and a convenient and straightforward interface.

Versatility Across Zones

Inputs

Delivering four input channels, the MA455 gives you the ability to connect multiple sources for custom multi-zone audio. Each input channel provides an RCA and 1/4" line input as well as individual bass and treble controls.

Streaming

In addition to flexible input options, the MA455 has a built-in media player that includes USB and SD MMC ports, Bluetooth, and FM radio. The media player can be assigned to any combination of the four output zones and features playback controls via the front panel and included IR remote control.

Outputs

The MA455 not only has versatile input options but also gives you flexibility in output options. Each zone has a mono RCA line out for use with an external amp and a barrier strip connector to connect directly to your speakers. Needing a total speaker impedance of at least 4 ohms per zone, the MA455 allows you to integrate into almost any existing speaker system.

Tailor Your Sound

Each input channel has an individual volume, bass, and treble controls, giving you control over the sound sources. Accessible via the included IR remote control, the MA455 also provides seven EQ presets including normal, rock, pop, classical, jazz, country, and bass. When using smaller speakers, the MA455 also has an 80 Hz high-pass filter for each zone output to restrict source bandwidth delivered to your speakers.

Secure, Compact Design

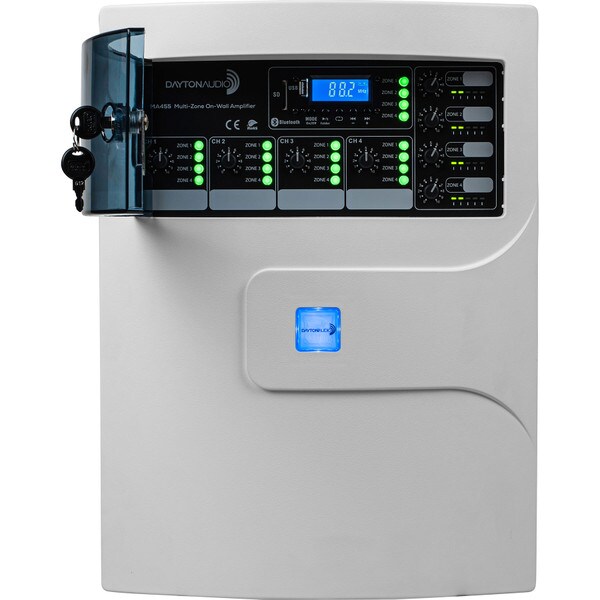

The all-in-one design of the MA455 delivers all of the functionality that you need for multi-zone audio, all housed in a compact on-wall form factor. With the streamlined design, the amplifier is ideal for set-and-forget installations. In addition to the compact size, the MA455 also features a lockable security cover so that you can keep your settings consistent without fear of tampering.

Simplify Your Install

Placing emphasis on simplicity and high performance, Dayton Audio has engineered the MA455 with ease of use in mind. The on-wall design and set-and-forget functionality are an installers dream that save time and money. Packed with all of the features you need, the MA455 is the complete all-in-one amplifier for multi-zone audio.

Flexibility and Function

With a vast array of input options, the MA455 can accept many audio sources such as Wi-Fi audio streaming devices, AV receivers, computers, hand held devices, and microphones. The ability to add a microphone via the 1/4" jack allows you to ensure that announcements are heard on the zones you want. This feature is ideal for paging mics for offices, bars, restaurants, and stores.



Delivering on All of Your Audio Requirement

The MA455 delivers all of the functionality and quality you would expect from Dayton Audio in a simplified design. With convenience and function at the forefront of design, the MA455 is perfect for use in restaurants, bars, small businesses, stores, office spaces, and other applications in need of easy-to-use multi-zone audio.

Specifications:


• Amplifier type: Class AB
• Power output (RMS): 4 x 55W @ 4 ohms, all channels driven
• Speaker impedance: 4 ohms minimum per zone
• Frequency response: 20-20,000 Hz
• Channel input connections: Stereo RCA line, 1/4" line
• Output connections: Mono RCA line / zone, barrier strip
• Channel controls: Volume, zone selection, bass / treble, mic / line switch
• Zone output controls: Volume, high-pass filter
• Mic input sensitivity: -35 dB
• Mic input impedance: 2 kohms
• Line input sensitivity: -3 dB
• Line input impedance: 20 kohms
• THD: <0.1% @1 kHz, 0 dB
• Mic SNR: <75 dB rated output
• Line SNR: <80 dB rated output
• Line output: +3 dB
• Bass & treble control: ±12 dB
• High-pass filter: 80 Hz
• Media player: USB, SD, Bluetooth, FM radio
• Media player file support: MP3, SBC, WAV, FLAC, APE, WMA
• Media player controls: Play / pause / folder, repeat, track select
• Media player sample rate: 16-bit/44.1 kHz
• Bluetooth: Version 5.0
• Remote control functions: Power, stop, mute, repeat, EQ, play / pause, track select, volume, skip, media player mode
• Power supply: 110/220 VAC, 50/60 Hz
• Certifications: CE, RoHS

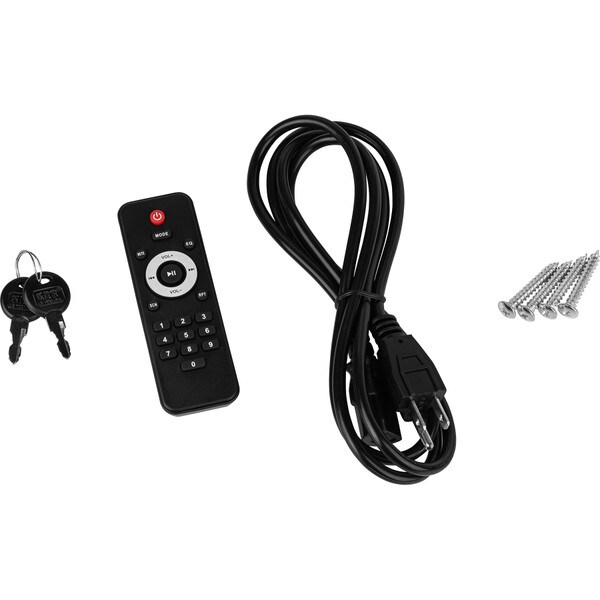

• Includes: Amplifier, 4 x screws and anchors, IR remote control, IEC power cable
• Weight: 18.7 lbs.
• Dimensions: 18.7" H x 15.1" W x 3.7" D

With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
