Overview
Modern Design Meets Vintage Sound

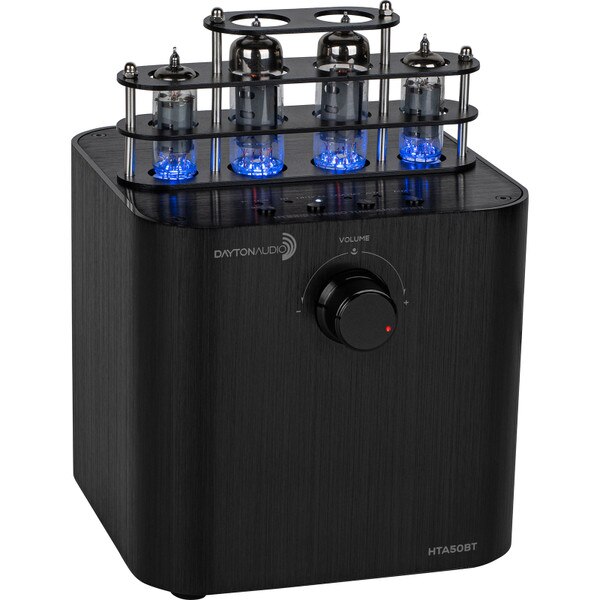

The Dayton Audio HTA50BT hybrid tube amplifier gives modern amp design a vintage makeover. Featuring the best of modern amp technology and functionality, the HTA50BT provides all of the convenience you to expect from an amp with the added benefit of classic vacuum tube sonic performance.
No Compromises
Debates may rage between whether solid-state or tube amplifiers produce a better listening experience; however, Dayton Audio solves the debate. By harnessing the best qualities of both, Dayton Audio's HTA50BT hybrid tube amplifier utilizes the classic design of a class A/B amp topology while employing vacuum tubes in the preamp circuit. The tubes' subtle character and warmth create a delightful homage to the classic valve amplifiers of the past.
Modern Connectivity with Vintage Flair
Flexibility & Power
With an output power rating of 25 watts per channel at 4 ohms, the HTA50BT packs a serious punch, perfect for almost any home audio listening system. The added convenience of Bluetooth V5 ensures that your wireless streaming has the best possible quality and functionality. Front panel controls allow you to skip songs, play/pause, and change the input source.
Connected Versatility
Two rear-mounted RCA stereo inputs allow connections to analog input sources, Optical/Coaxial inputs for digital modes, as well as outputs for headphones, or an additional subwoofer! The HTA50BT also has a rear-mounted USB port that can act as a DAC for your PC to play any kind of media, including MP3, WMA, WAV, and APE files.
Homage to the Classics
The modern design on the HTA50BT perfectly complement the sleek, brushed aluminum housing. Exposed tubes only add to the modernized vintage aesthetic of the HTA50BT. A large volume knob on the front panel gives you access to the control you need to dial in your perfect sound.
Sight & Sound
The classic beauty of the HTA50BT makes the amp a perfect centerpiece in your room, while the functionality, power, and superb audio quality make the amp perfect to drive any stereo setup. With the HTA50BT, you receive the best of both worlds in amp design and function, as well as vintage attractiveness. See and hear the difference the HTA50BT gives your audio system.

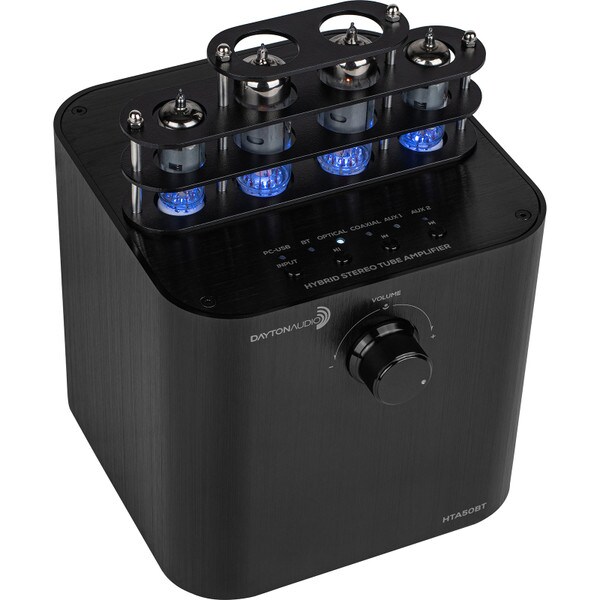

Control At Your Finger Tips
The HTA50BT gives you complete control from the front panel of the amp. Easily select input source, playback, and tone. Complete with an oversized volume knob, not only is the control at your fingertips, but the amp looks great.
1. Input Indicators
2. Source Select
3. Play/Pause Media
4. Previous Media
5. Next Media

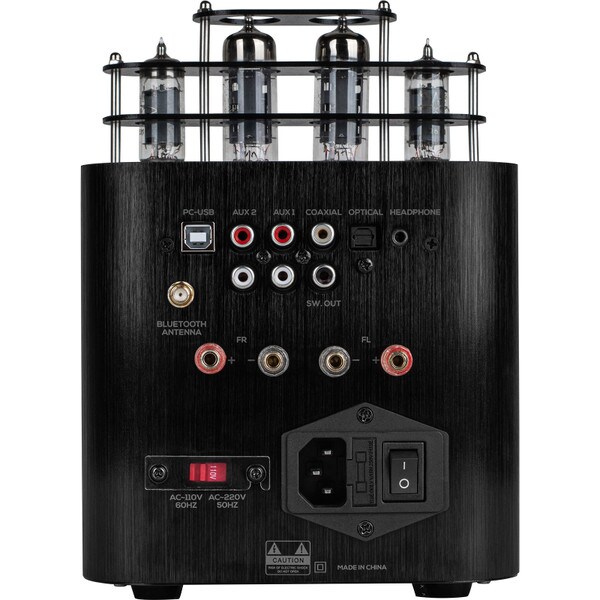

All The Connections
The HTA50BT provides a vast array of input options with virtually any input device. Stream from USB, Bluetooth, or connect via digital inputs, or an RCA Aux input. The HTA50BT also features a built-in phono preamp to enjoy your vinyl collection. Completed with a subwoofer output, the HTA50BT is perfect for a 2.1 system.
7. Bluetooth Antenna
8. USB Port
9. Aux 2 Input
10. Aux 1 Input
11. Digital Coaxial Input
12. Digital Optical Input
13. 3.5mm Headphone Output
14. Subwoofer Pre-Out
15. Power Input
16. Speaker Outputs
17. IEC Power Connector
18. 110/220V Switch
Specifications:
- Power output: 25 WPC RMS @ 4 ohms
- THD: 0.5% @ Rated Power
- Minimum speaker impedance: 4 ohms
- Channel separation: 80 dB
- SNR: >85 dB
- Frequency response: 20-20,000 Hz
- Sub output: Fixed volume Preout for active subwoofer (HTA50BT is a full range amp with no internal crossover)
- Preamplifier tube: 6K4 x 2, 6U1 x 2
- Transistors: Toshiba A1941 x 2, Toshiba C5198 x 2
- Bluetooth: Version 5
- Supports Bluetooth codecs: SBC and AAC
- Media playback file support: FLAC, WAV, APE, WMA, MP3
- Digital audio DAC SNR: 96 dB
- Digital audio DAC sample rate: Up to 16-bit/48kHz
- Input impedance: 47 kohms (minimum)
- Input sensitivity: 500 mV
- Power: 110/220 VAC, 50/60 Hz Standard IEC Connection
- Fuse Rating (120v): 5x20mm 5AL
- Dimensions: 6.3" x 7.5" x 9.2"
Complete HTA Hybrid Tube Amp Collection
Utilizing the efficiency of solid-state class A/B amplifier topology and a vacuum preamp section, the HTA series of amplifiers authentically reproduces the warmth and character of vintage tube amps with the added flexibility and functionality you expect from a modern amp.
| SPEC | HTA20BT | HTA100BT | HTA50BT |
| Power Output: | 12WPC RMS @ 4 Ohms | 50WPC RMS @ 4 Ohms | 25WPC RMS @ 4 Ohms |
| Frequency Response: | 20-20,000 Hz | 20-20,000 Hz | 20-20,000 Hz |
| Amp Topology: | Hybrid Tube / Class A/B | Hybrid Tube / Class A/B | Hybrid Tube / Class A/B |
| Inputs: | Bluetooth 4.2, 2 x Stereo RCA , USB | USB, Optical, Coaxial, Phono Bluetooth 5.0, Stereo RCA | Optical, Coaxial, Bluetooth 5.0, 2 x Stereo RCA, USB |
| Outputs: | Speaker, Subwoofer, Headphone | Speaker, Subwoofer | Speaker, Subwoofer, Headphone |
| SHOP NOW | SHOP NOW | SHOP NOW |
