  • Dayton Audio DTA-120BT2 Class D Mini Amplifier 60 WPC with Bluetooth

CLEARANCE Dayton Audio DTA-120BT2 Class D Mini Amplifier 60 WPC with Bluetooth

Dayton AudioPart # 300-3803
Model: DTA-120BTV2
The Dayton Audio DTA-120BT2 mini amplifier is designed to deliver unmatched sound quality and clarity. Compact design with Bluetooth connectivity option means you can use this amplifier anywhere.

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Key Features

  • Produces crystal clear sound quality for great listening
  • Wireless Bluetooth 4.2 connectivity lets you pair up devices
  • Housed in an extruded aluminum casing with thick anodized faceplate
  • Space-saving design makes it ideal to be used anywhere

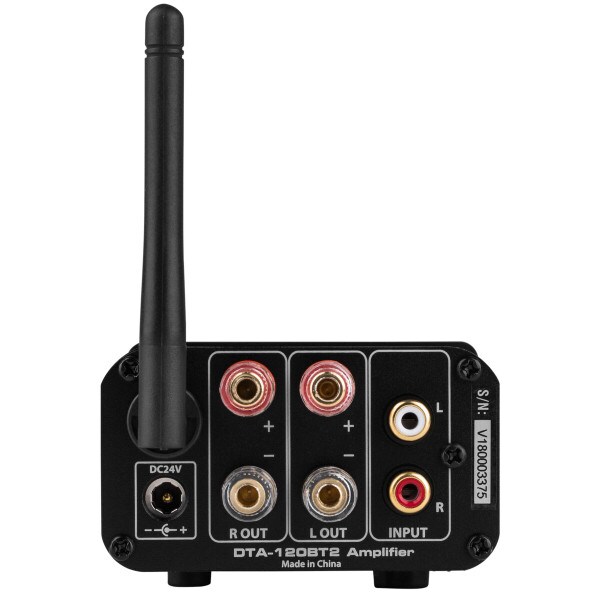

  • Includes 3.5 mm stereo mini jack and a pair of RCA auxiliary inputs for analog requirements
  • With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise
Get Notified When Available

We'll send you an email when Dayton Audio DTA-120BT2 Class D Mini Amplifier 60 WPC with Bluetooth is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Dayton Audio DTA-120BT2 Class D Mini Amplifier 60 WPC with Bluetooth

Stream music wirelessly wherever you go with this mini amplifier with Bluetooth technology.

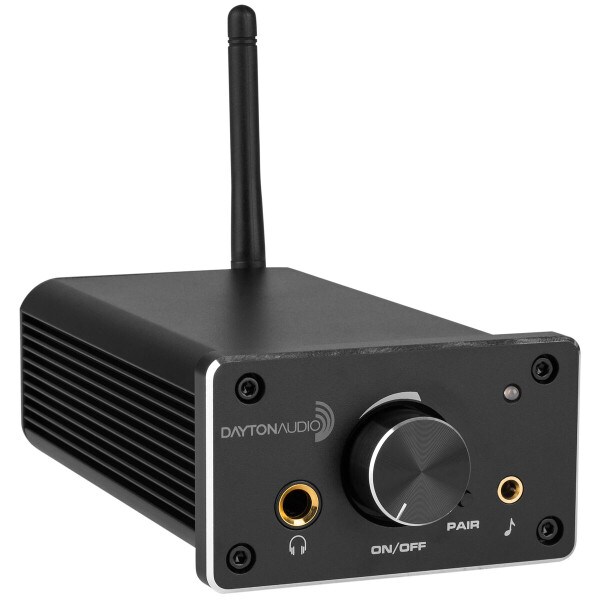

Compact Design

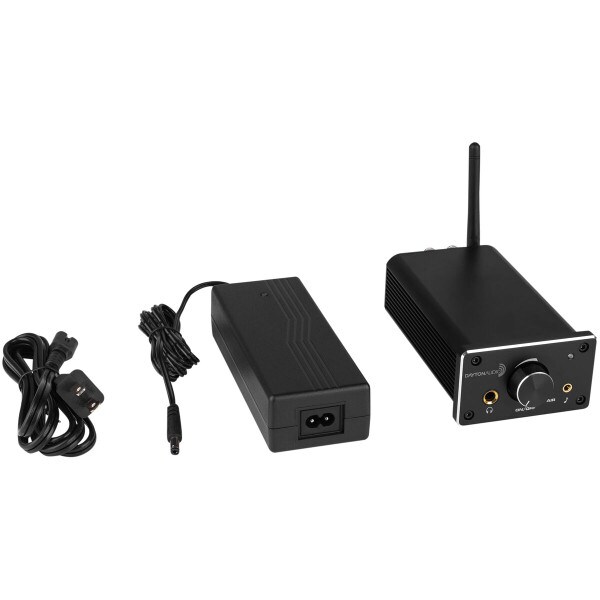

The ultra-compact profile of this unit features an extruded aluminum heatsink case and thick black anodized faceplate for a sleek look. The concealed external switching power supply enhances safety and is designed to run even demanding speakers.

Powerful Output

The Class D technology and the Dual Parallel BTL configuration drives even powerful speakers to deliver high quality audio with minimal distortion. The dual-power-chip design produces 60 watts RMS per channel of efficient power, without any reduction in output, thereby delivering powerful bass and crystal-clear audio.

Connectivity Options

aptX Bluetooth connectivity makes wireless connectivity possible making this mini amplifier the perfect partner for your laptop, tablet, PC, TV, smartphone or any other audio device. The one-knob design without any switches, makes handling a breeze. A 3.5mm stereo jack doubles as a high ?delity headphone amplifier to connect high-impedance headphones.

More Benefits

This mini amplifier can also be used to power up desktop mini-monitor speakers and even high-impedance headphones giving you quality and refined sound performance with exceptional clarity.

Specifications:

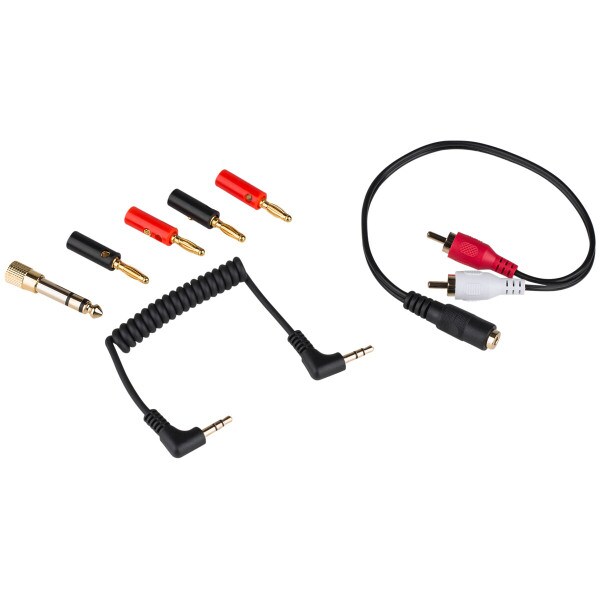

• Output power: 60 watts RMS x 2 @ 4 ohms • Total harmonic distortion (THD): <0.1% @ 1W, <10% @ 60W • Frequency response: 20-20,000 Hz • Signal-to-noise ratio: 103 dB, A weighted • Input sensitivity: 680 mV • Inputs: Rear stereo RCA, front 3.5 mm stereo mini jack, and Bluetooth • Headphone output: 95 mW at 16 ohm • Outputs: Dual shielded, gold-plated mini binding posts (banana plugs accepted) • Bluetooth version: 4.2 • Power supply: Input: 100~240 VAC, 50/60 Hz, 1.6A; Output: 24 VDC, 5A • Power efficiency: >85% • Dimensions: Faceplate dimensions: 1.9" H x 3.37" W x 0.31" D • Body dimensions: 1.75" H x 3.12" W x 6.87" D • Overall dimensions: 2" H x 3.37" W x 7.5" D (including feet, faceplate, and volume knob).

With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Product Details

BrandDayton Audio
ModelDTA-120BTV2
Part Number300-3803
UPC848791005824
Unit of MeasureEach
Weight2.9

Product Specifications

Power (RMS/Channel 8 ohms)26 - 50 Watts
Weight Range< 10 lbs.
Special FeaturesBluetooth
