Dayton Audio DTA-2.1BT2 100W 2.1 Class D Bluetooth Amplifier with Sub Frequency Adjustment

Name: Dayton Audio DTA-2.1BT2 100W 2.1 Class D Bluetooth Amplifier with Sub Frequency Adjustment
Brand: Dayton Audio
SKU: 300-3831
Price: 94.98 USD
Availability: InStock
Rating: 4.6 (267 reviews)

Dayton AudioPart # 300-3831

Model: DTA-2.1BT2

The Dayton Audio DTA-2.1BT2 amplifier provides clean Class D power from an extremely compact and lightweight design. Enough power for most speakers and is also able to power a passive subwoofer. Built from the Dayton Audio DTA-2.1BT, the improved design gives the user the ability to adjust the subwoofer low-pass frequency. This allows you to create an inexpensive and high-performance 2.1 set up for any office, bedroom, or small home theater.

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Key Features

Ultra-efficient Class D 2.1 amplifier with 2 x 50 watt stereo output and an additional 100 watt passive subwoofer output perfect for home theaters, listening rooms, and small offices
Front panel subwoofer low-pass frequency adjustment, sub level, tone, and volume controls provide the user with the ability to easily dial in their preferred sonic character

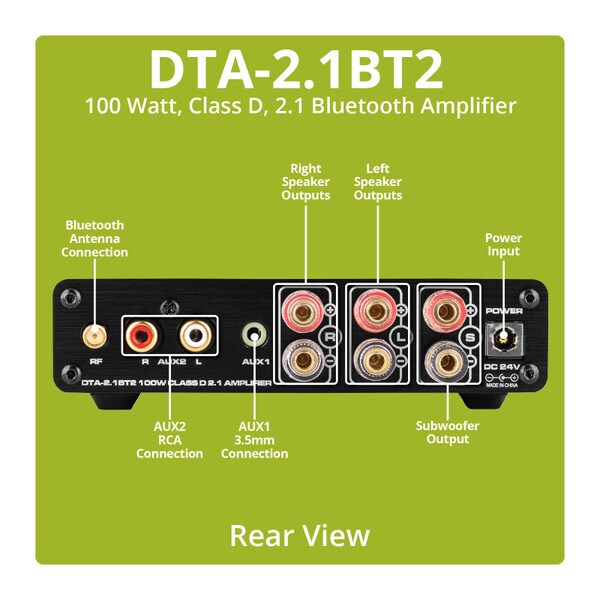

Variety of inputs including Bluetooth, stereo RCA, and 3.5mm Aux provide flexible options in application
Rugged build with high-quality components and binding posts ensures a long life without audio quality degradation
Sleek black aluminum enclosure is aesthetically attractive and unobtrusive
With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise

Overview

Dayton Audio DTA-2.1BT2 100W 2.1 Class D Bluetooth Amplifier with Sub Frequency Adjustment

Dayton Audio DTA2.1BT2 Class D Bluetooth Amplifier with Sub Frequency Adjustment

The Dayton Audio DTA-2.1BT2 is a discrete whole system amplifier that provides output for 2 speakers and a passive subwoofer. This design allows you to create a compact 2.1 setup for virtually any room whether it be an office, bedroom, or even a small home theater. The 2 x 50W output power is more than enough for most bookshelf speakers, and the subwoofer output of 100W is ideal for a small subwoofer.

Customization at your fingertips

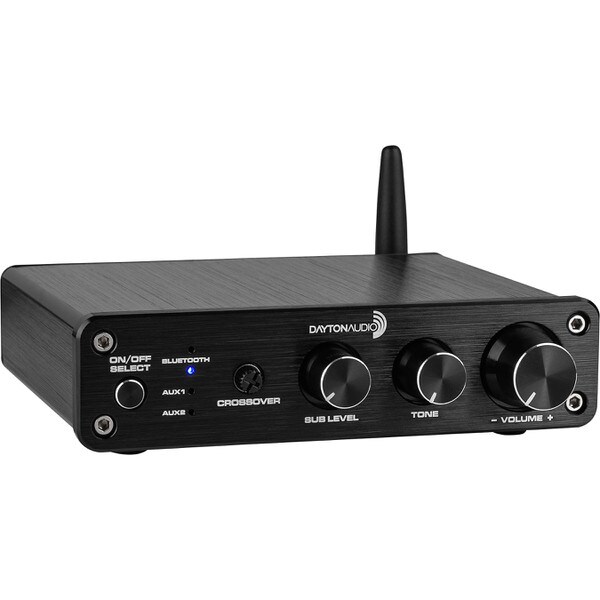

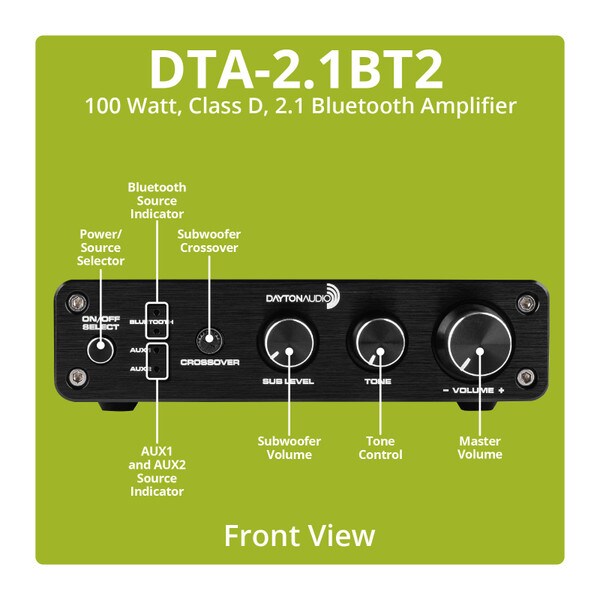

The front plate of the DTA-2.1BT2 features 3 knobs providing a gentile tactile feel.

The first knob on the left provides control over the subwoofer output. The second knob is a tone control that allows you to attenuate the sonic signature of your speakers. The final and largest knob is the volume control located on the right of the faceplate.

The front plate also features an adjustable knob for the 2nd order low-pass filter that is applied to the sub output in order to fine tune your system (50-120 Hz).

The DTA-2.1BT2 aesthetics offer you an attractive black aluminum case that can easily be the focal point of your 2.1 system.

Complete versatility for a number of applications

The Dayton Audio DTA-2.1BT2 can power a pair of passive speakers plus a bass shaker from one compact amplifier. Connect the speakers to the left and right channels and the bass shaker to the dedicated subwoofer output to add tactile impact from low-frequency game effects. This simple setup delivers both stereo sound and chair-shaking immersion without needing a separate shaker amplifier.

The Dayton Audio DTA-2.1BT2 is also a great fit for musicians looking to add tactile feedback to practice or performance setups. Power a pair of speakers from the left and right channels while using the dedicated subwoofer output to drive a bass shaker mounted to a drum throne, bass practice seat, keyboard bench, or other seating surface. This lets musicians physically feel kick drum and bass frequencies for a more engaging, responsive playing experience without adding a separate shaker amplifier.

Specifications

Full Range Power Output: 50W @ 4Ω
Subwoofer Power Output: 100W @ 4Ω
Total Harmonic Distortion: 0.4% at 25WPC, ~5% at full power
Adjustable Low-Pass filter: 50 - 120 Hz @ 12dB/Oct
Frequency Response: 20 - 250 Hz
Dimensions: 5.1" W x 6" L x 1.5" H
Weight: 2.8 lbs.

We Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Full Specifications:

Power output: 50W x 2
Power output (subwoofer): 100W
Sub crossover: 50-120 Hz 12dB slope
Impedance: 4-8 ohms
THD: 0.4% at 25WPC, ~5% at rated power output
Amplifier input voltage: 24 VDC
Power supply voltage: 100~240 VAC, 50/60 Hz

Power supply output voltage: 24V
Power supply amperage: 4A
Amplifier class: Class D
Chipset: TPA3116
Bluetooth chipset: CSR8635 4.0
Bluetooth compatibility: A2DP, AVRCP
Bluetooth distance: Up to 98 feet
Dimensions: 5.1" W x 6" L x 1.5" H.

https://www.parts-express.com/Dayton-Audio-DTA-2.1BT2-100W-2.1-Class-D-Bluetooth-Amplifier-with-Sub-Frequency-Adjustment-300-3831?quantity=1

Product Details
Brand	Dayton Audio
Model	DTA-2.1BT2
Part Number	300-3831
UPC	848791005329
Unit of Measure	Each
Weight	2.8

Product Specifications
Power (RMS/Channel 8 ohms)	26 - 50 Watts
Weight Range	< 10 lbs.
Special Features	Bluetooth
