Dayton Audio DS135-PR 5" Designer Series Passive Radiator

Dayton AudioPart # 295-495
Model: DS135-PR

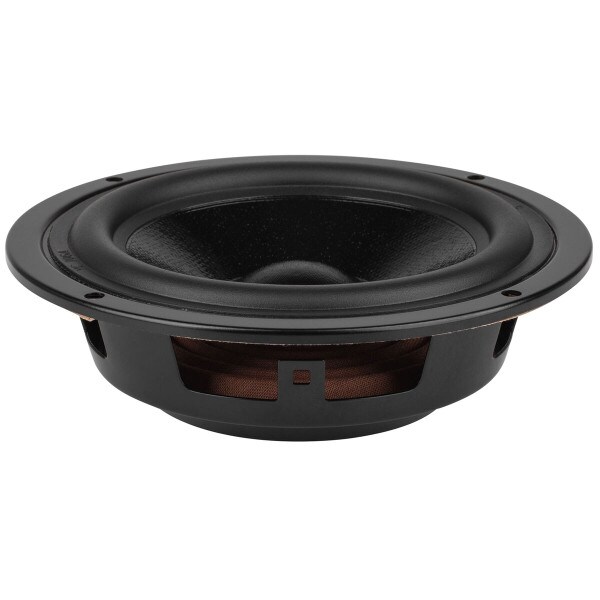

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and treated paper cone making them visually identical.

Key Features

  • Allows tuning small enclosures lower than using conventional ports

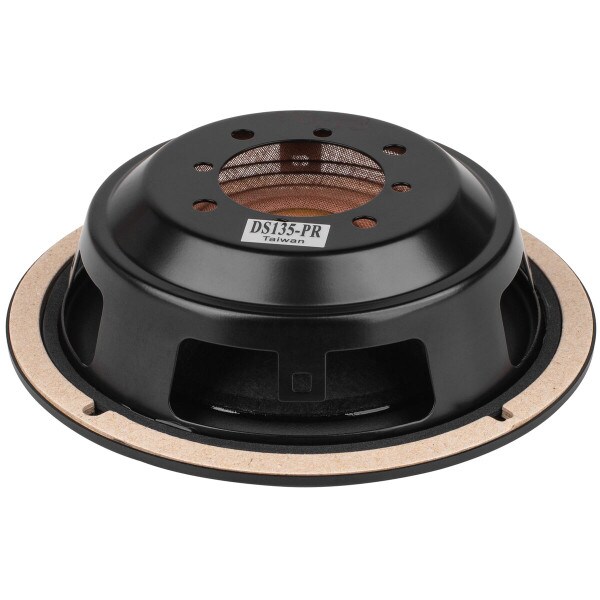

  • Rear mounted screw allows easy mass adjustment for custom tuning
  • Perfect match for Dayton Audio's paper cone Designer Series drivers
  • Cosmetic frame edge looks great even when surface mounted
Your Price: $20.98
MSRP: $27.99
Save $7.01 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $20.98/ea
Quantity:Qty: 4+ $18.98/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio DS135-PR 5" Designer Series Passive Radiator is back in stock or available for preorder.

Order in the next 1 hr 9 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DS135-PR 5" Designer Series Passive Radiator

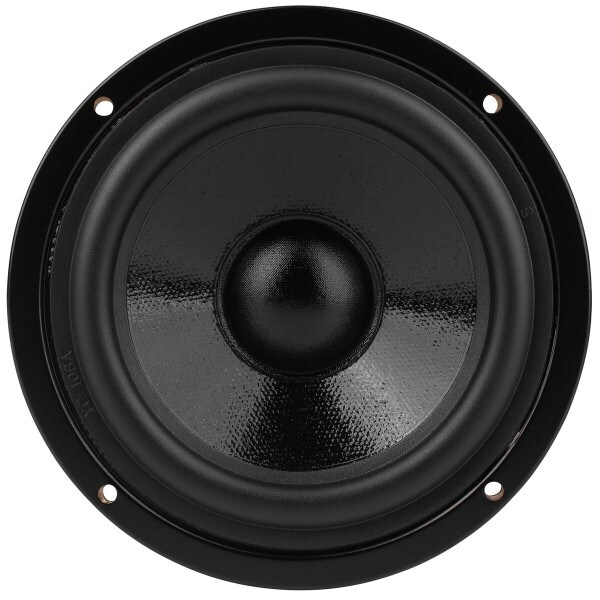

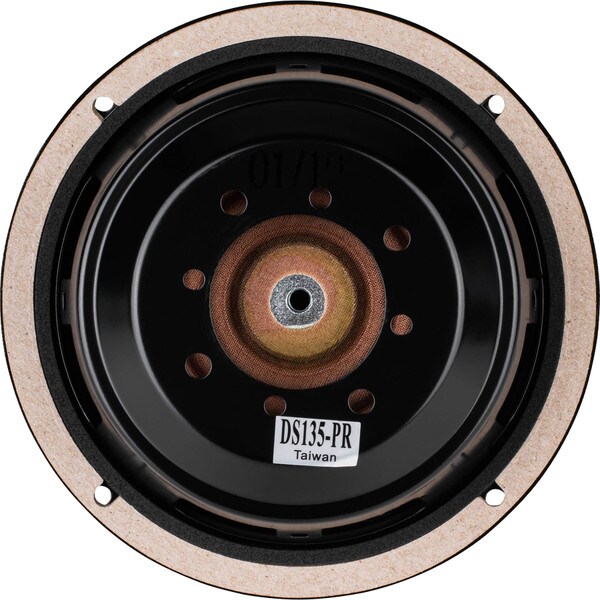

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from bookshelf two-ways to portable battery powered speaker systems.

Specifications: • Fs: 27.7 Hz • Vas: 0.43 cu. ft. • Qms: 3.93 • Cms: 1.52 mm/N • Rms: 1.0 kg/s • Mms: 21.8 g • Sd: 75.4 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 5.31", Cutout diameter: 4.39", Depth: 1.5".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Product Details

BrandDayton Audio
ModelDS135-PR
Part Number295-495
UPC848791005015
Unit of MeasureEach
Weight0.5

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter4.96

Thiele-Small Parameters

Resonant Frequency (Fs)27.7Hz
Mechanical Q (Qms)3.93
Compliance Equivalent Volume (Vas)0.43ft³
Mechanical Compliance of Suspension (Cms)1.52mm/N
Diaphragm Mass Inc. Airload (Mms)21.8g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)75.4cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialSteel

Mounting Information

Overall Outside Diameter5.31"
Baffle Cutout Diameter4.39"
Depth1.5"
# Mounting Holes4
