Dayton Audio DS115-PR 4" Designer Series Passive Radiator

Dayton AudioPart # 295-493
Model: DS115-PR

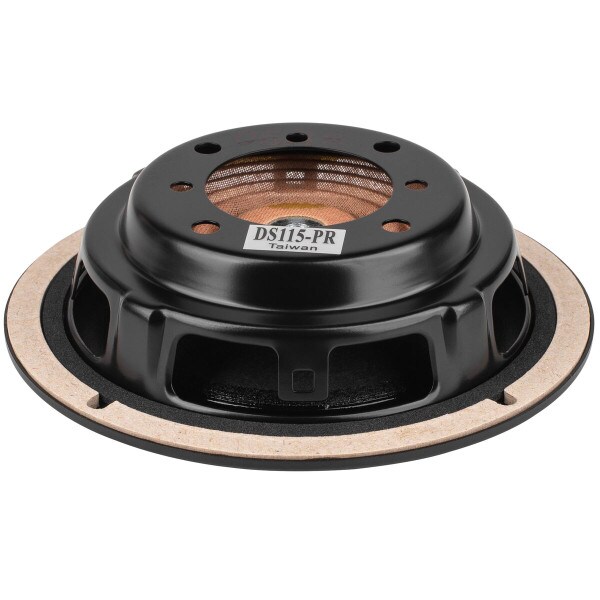

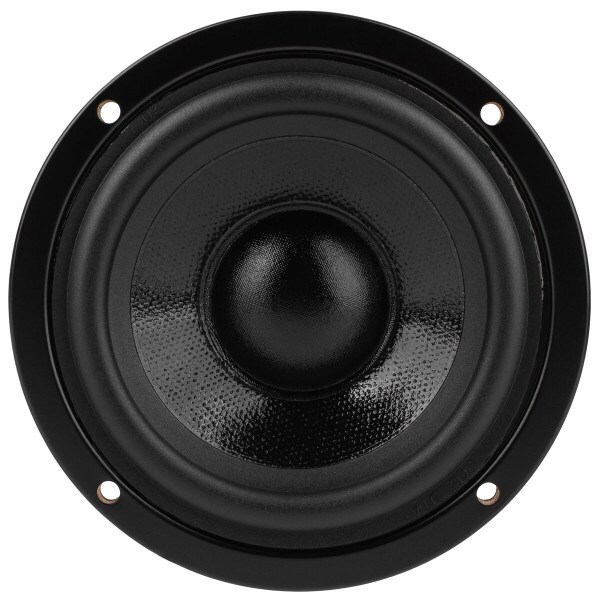

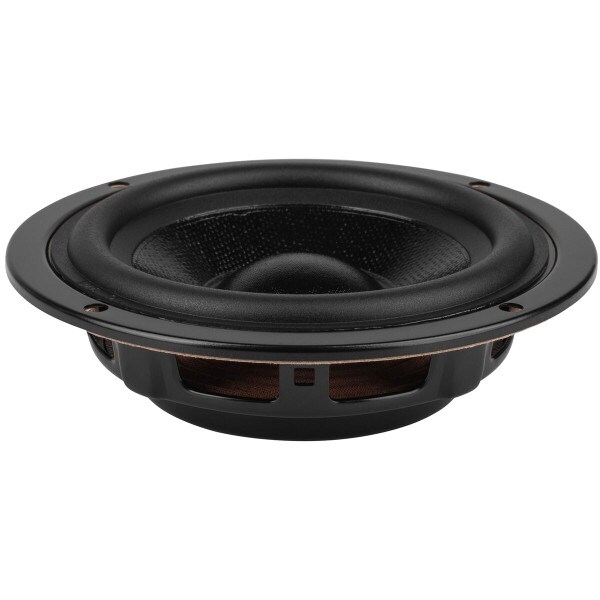

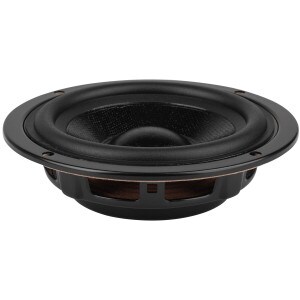

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and treated paper cone making them visually identical.

Key Features

  • Perfect match for Dayton Audio's paper cone Designer Series drivers
  • Allows tuning small enclosures lower than using conventional ports

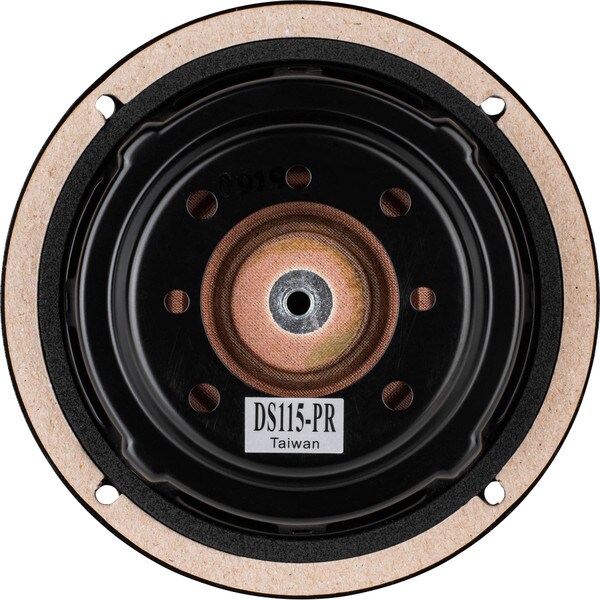

  • Rear mounted screw allows easy mass adjustment for custom tuning
  • Cosmetic frame edge looks great even when surface mounted
Your Price: $17.98
MSRP: $23.99
Save $6.01 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $17.98/ea
Quantity:Qty: 4+ $16.28/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio DS115-PR 4" Designer Series Passive Radiator is back in stock or available for preorder.

Order in the next 6 hr 42 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DS115-PR 4" Designer Series Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from bookshelf two-ways to portable battery powered speaker systems.

Specifications: • Fs: 29.3 Hz • Vas: 0.33 cu. ft. • Qms: 3.66 • Cms: 2.27 mm/N • Rms: 0.7 kg/s • Mms: 13 g • Sd: 54.1 sq. cm. • Xmax: 6 mm • Dimensions: Overall diameter: 4.55", Cutout diameter: 3.69", Depth: 1.17".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Product Details

BrandDayton Audio
ModelDS115-PR
Part Number295-493
UPC848791005008
Unit of MeasureEach
Weight0.35

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.21

Thiele-Small Parameters

Resonant Frequency (Fs)29.3Hz
Mechanical Q (Qms)3.66
Compliance Equivalent Volume (Vas)0.33ft³
Mechanical Compliance of Suspension (Cms)2.27mm/N
Diaphragm Mass Inc. Airload (Mms)13g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)54.1cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialSteel

Mounting Information

Overall Outside Diameter4.55"
Baffle Cutout Diameter3.69"
Depth1.17"
# Mounting Holes4
