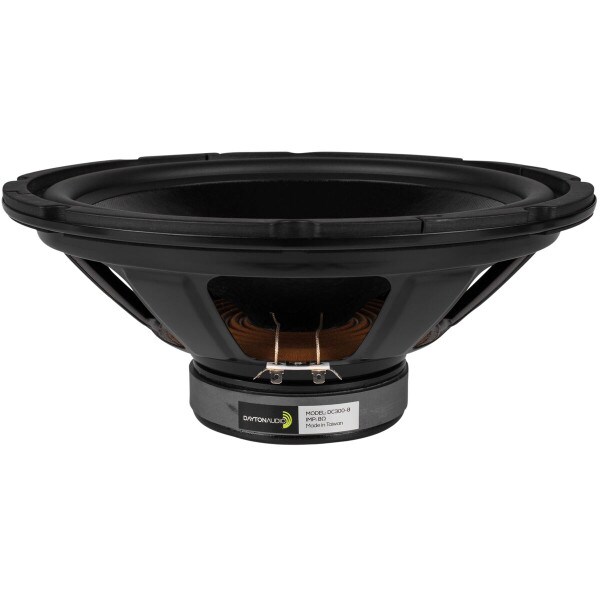

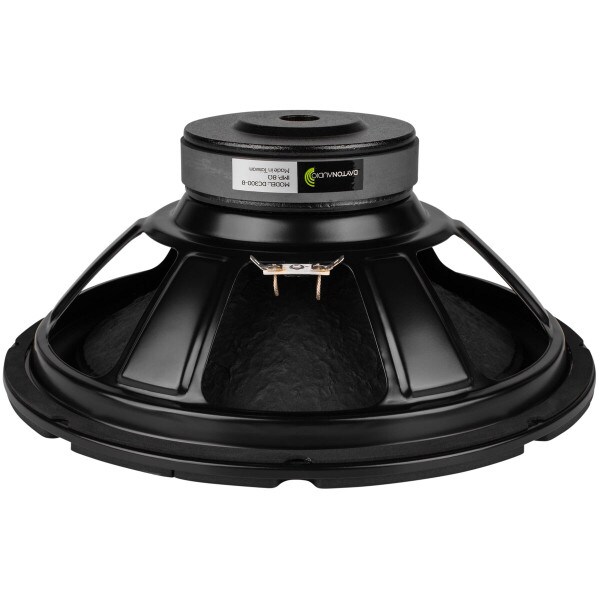

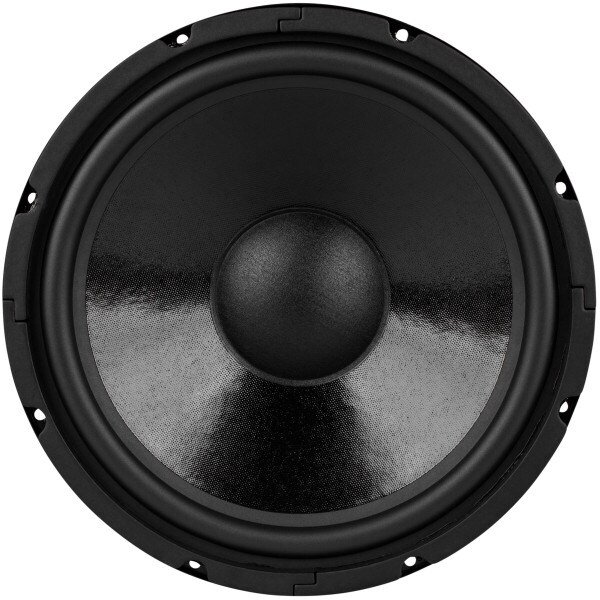

Dayton Audio DC300-8 12" Classic Woofer

Name: Dayton Audio DC300-8 12" Classic Woofer
Brand: Dayton Audio
SKU: 295-320
Price: 59.98 USD
Availability: OutOfStock
Rating: 4.6 (168 reviews)

Read 168 Reviews | 462 Questions, 1035 Answers or

Dayton Audio

Part #295-320

Dayton Audio DC300-8 12" Classic Woofer

Dayton Audio

Part #295-320

Model: DC300-8

Read 168 Reviews | 462 Questions, 1035 Answers or

5-1/4 in. 8 Ohm 5-1/4 in. 8 Ohm 5-1/4 in. 4 Ohm 6-1/2 in. 4 Ohm 6-1/2 in. 8 Ohm 8 in.10 in.12 in.15 in.

Choose the Dayton Audio DC300-8 Classic Series 12" woofer for use as a great replacement speaker for large format 2-way and 3-way, ported or sealed loudspeakers.

Key Features

Works great as a general replacement woofer
Excellent price/performance ratio
Bring those old vintage speakers back to life
Long lasting rubber surround increases the life of the driver

Frequently Bought Together

This Product: Dayton Audio DC300-8 12" Classic Woofer	$59.98
12" Bar Grille Chrome	$14.98
0.205" (16-14) Female Disconnect Crimp Terminal Blue 50 Pcs.	$6.39
Acousta-Stuf Polyfill 1 lb. Bag Speaker Cabinet Sound Damping Material	$15.98

Total Price: $97.33

This Product:Dayton Audio DC300-8 12" Classic Woofer$59.98

12" Bar Grille Chrome$14.98

0.205" (16-14) Female Disconnect Crimp Terminal Blue 50 Pcs.$6.39

Acousta-Stuf Polyfill 1 lb. Bag Speaker Cabinet Sound Damping Material$15.98

4 ItemsTotal Price: $97.33

Overview

Dayton Audio DC300-8 12" Classic Woofer

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC300-8 12" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.33 allows the DC300-8 produce incredible low frequency extension in vented enclosures or tight response with a powerful kick in sealed enclosures.

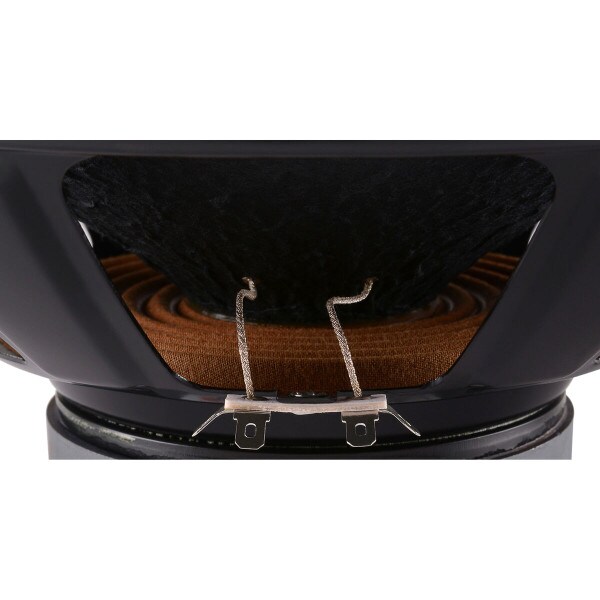

A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Product Details
Brand	Dayton Audio
Model	DC300-8
Part Number	295-320
UPC	844632000270
Unit of Measure	Each
Weight	7.8

Product Specifications
Nominal Diameter	12"
Bolt Circle Diameter	11.5
Power Handling (RMS)	80 Watts
Power Handling (MAX)	160 Watts
Impedance	8Ω
Frequency Response	25 to 2,500Hz
Sensitivity	90.3dB 2.83V/1m
Voice Coil Diameter	2"

Thiele-Small Parameters
Resonant Frequency (Fs)	22.9Hz
DC Resistance (Re)	6.8Ω
Voice Coil Inductance (Le)	2.93mH
Mechanical Q (Qms)	3.21
Electromagnetic Q (Qes)	0.37
Total Q (Qts)	0.33
Compliance Equivalent Volume (Vas)	6.41ft³
Mechanical Compliance of Suspension (Cms)	0.48mm/N
BL Product (BL)	16.3T·m
Diaphragm Mass Inc. Airload (Mms)	100.7g
Maximum Linear Excursion (Xmax)	4.3mm
Surface Area of Cone (Sd)	498.8cm²

Materials of Construction
Cone Material	Treated Paper
Surround Material	Rubber
Voice Coil Wire Material	Copper
Voice Coil Former	Aluminum
Basket / Frame Material	Steel
Magnet Material	Ferrite

Mounting Information
Overall Outside Diameter	12.07"
Baffle Cutout Diameter	11"
Depth	5.18"
# Mounting Holes	8

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	1.5ft³
Sealed F3	54Hz
Vented Volume	3ft³
Vented F3	31Hz
