BUYOUT Dayton Audio Dual Steel Spring Balanced Audio Exciter With Attached Cable Assembly 6' 8" 32mm 20W 4 Ohm DAEX32Q-4

Read 1 Review or
Dayton Audio
Part #900-DAEX32Q-4ASSY

BUYOUT Dayton Audio Dual Steel Spring Balanced Audio Exciter With Attached Cable Assembly 6' 8" 32mm 20W 4 Ohm DAEX32Q-4

Dayton Audio
Part #900-DAEX32Q-4ASSY
Model: DAEX32Q-4-ASSY
Read 1 Review or

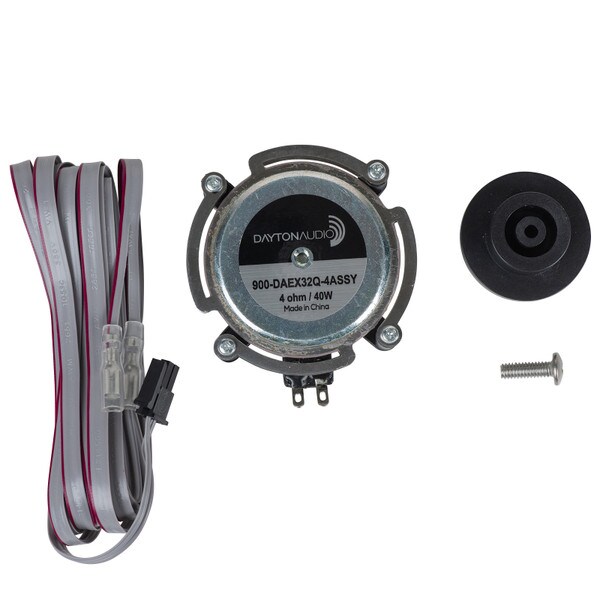

When applied to rigid, lightweight substrates the Dayton Audio 900-DAEX32Q-4ASSY dual spring balanced exciter has more linear movement to deliver accurate response and minimal distortion. The detachable mounting plate can be secured to the substrate with a single screw, and makes it easy to remove or replace the exciter. Also includes a terminated 6 foot cable with a 2 pin Molex connector on the end.
Key Features
  • Dual steel spider design to better support the large neodymium motor
  • 32 mm two layer voice coil for high, 20 watts RMS, power handling

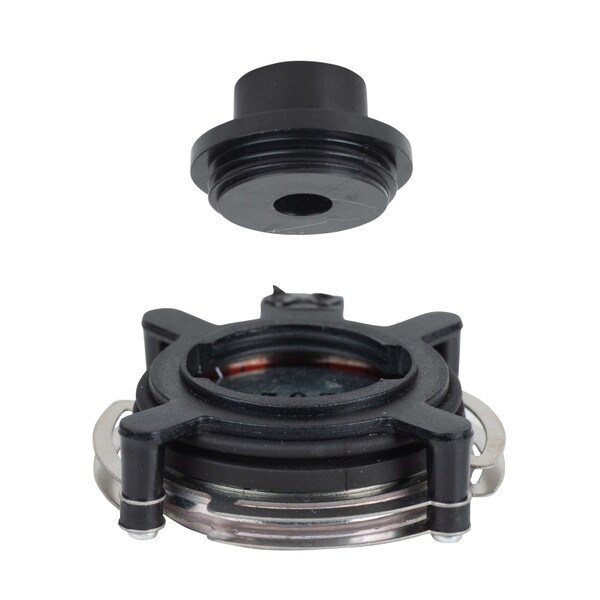

  • Removable mounting plate can be installed with a single screw
  • 4 ohm impedance to make the most out of small class D amplifiers
BUYOUT $11.98
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Dual Steel Spring Balanced Audio Exciter With Attached Cable Assembly 6' 8" 32mm 20W 4 Ohm DAEX32Q-4

The 900-DAEX32Q-4ASSY from Dayton Audio can turn most rigid, flat surfaces into a speaker. Designed specifically for mounting to vertical surfaces, this exciter uses a dual spring spider to better support the large neodymium motor providing improved linearity. With a 2-layer 32 mm voice coil, this exciter can handle up to 40 watts peak for high output even when attached to thicker surfaces. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, this exciter uses a unique removable mounting plate that can be installed with a single screw. This mounting plate makes it easy to replace or reposition the exciter without damaging the mounting surface. In addition a pre-terminated 6' wire is included, making wiring as easy as can be. The 900-DAEX32Q-4ASSY is perfect for turning whatever you can imagine into a speaker, such as cabinet doors, monitors, windows, garage doors, ect…

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

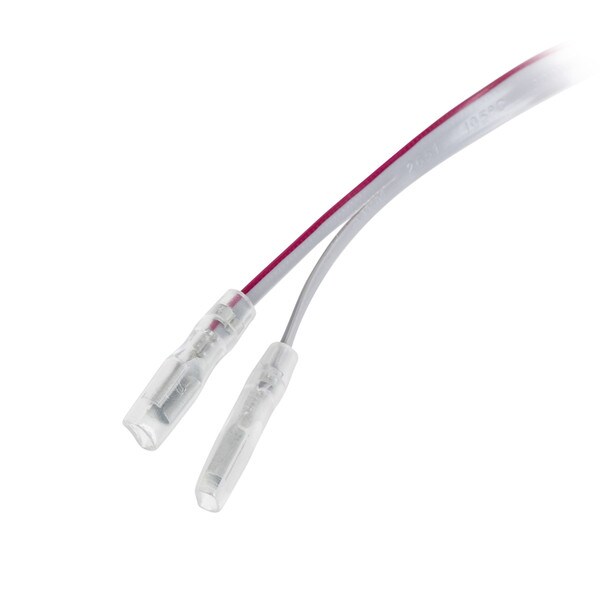

Specifications: • Power handling: 20 watts RMS, 40 watts peak • VCdia: 32 mm • Nominal impedance: 4 ohms • Re: 3.2 ohms • Le: 0.11 mH • Fs: 220 Hz • Dimensions: 2.38" (60.5 mm) dia. x 1.25" (32 mm) H • Wire length: 6’ 8” • Wire terminations: 2 x 0.11” female disconnect and 1 x Molex 43025 • Weight: 130 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelDAEX32Q-4-ASSY
Part Number900-DAEX32Q-4ASSY
UPC848791007620
Unit of MeasureEach
Weight0.505
