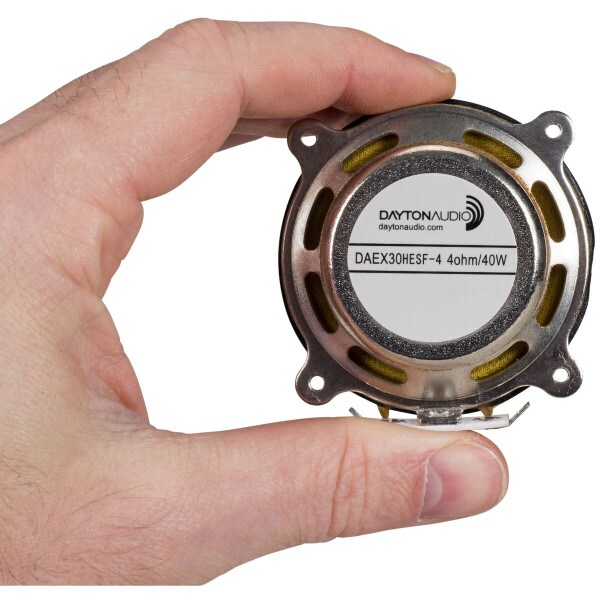

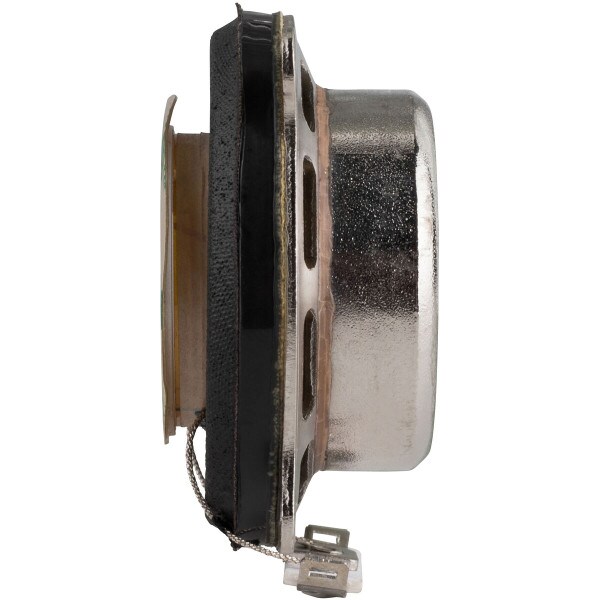

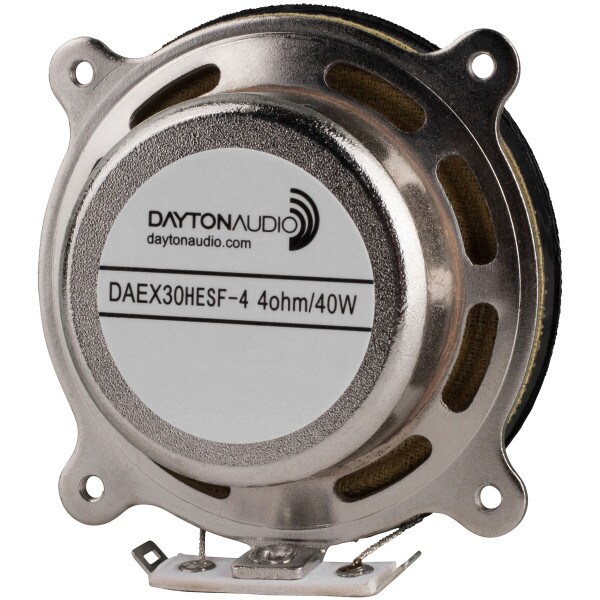

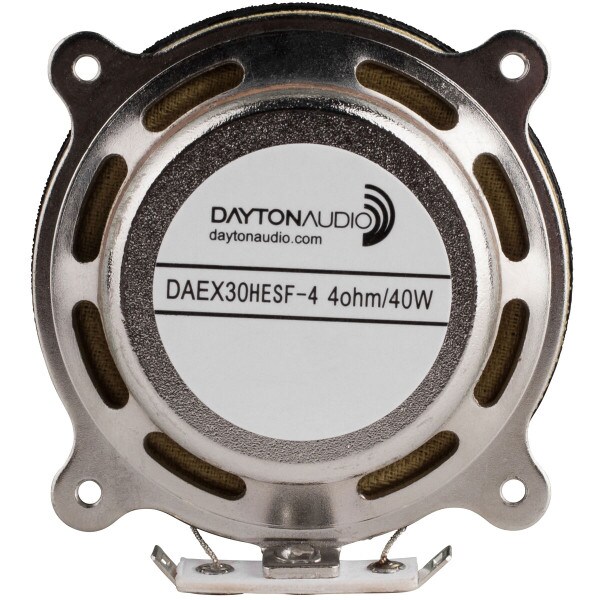

Dayton Audio High Efficiency Steered Flux Audio Exciter with Shielding 30mm 40W 4 Ohm DAEX30HESF-4Dayton Audio's DAEX30HESF-4 steered high flux exciter is one of our most powerful. It has a specially designed neodymium motor system that imparts strong forces on even the most rigid surface for maximum output.
For use with medium sized amplifiers, this steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH.

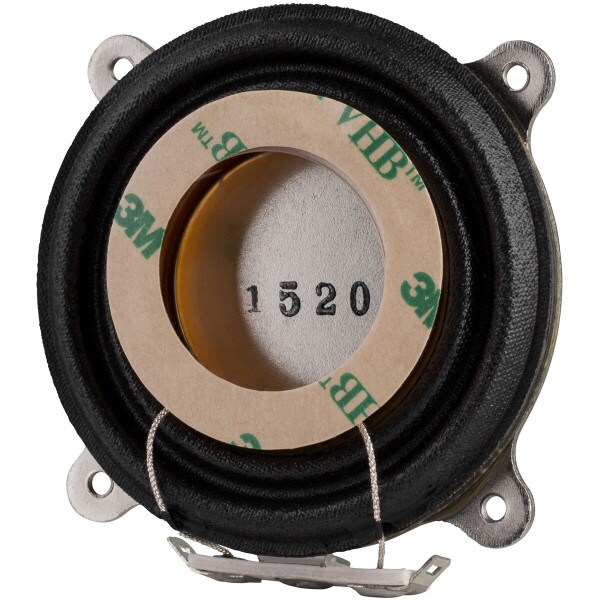

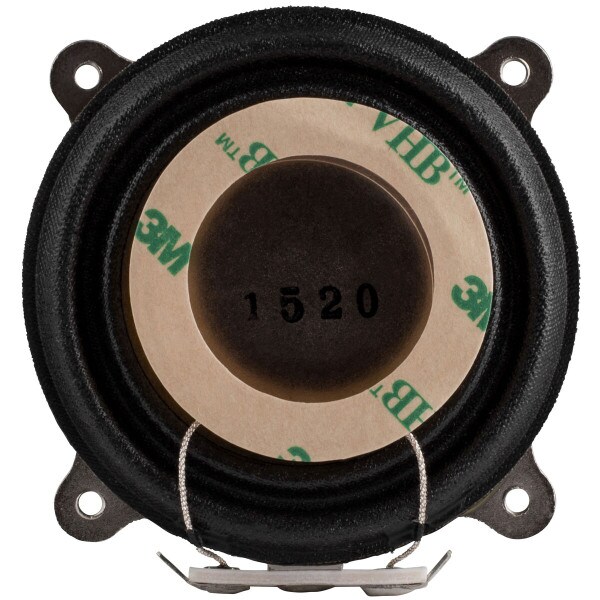

Four threaded screw holes are integrated into the exciter's shell and combine with a 3M VHB (Very High Bond) adhesive, permitting this exciter to be securely coupled to a wide range of materials, even upside-down mounting and attaching to moving objects. Two solder tabs offer quick, permanent wire attachment.
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.
Specifications: • Power handling: 40 watts RMS • VCdia: 30 mm • Nominal impedance: 4 ohms • Re: 3.8 ohms • Le: 0.31 mH • Fs: 300 Hz • Dimensions: 2.25" dia.(2.75" across mounting tabs) x 1.125" H • Adhesive dimensions: 1.25" outside diameter • Weight: 158 grams.
To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

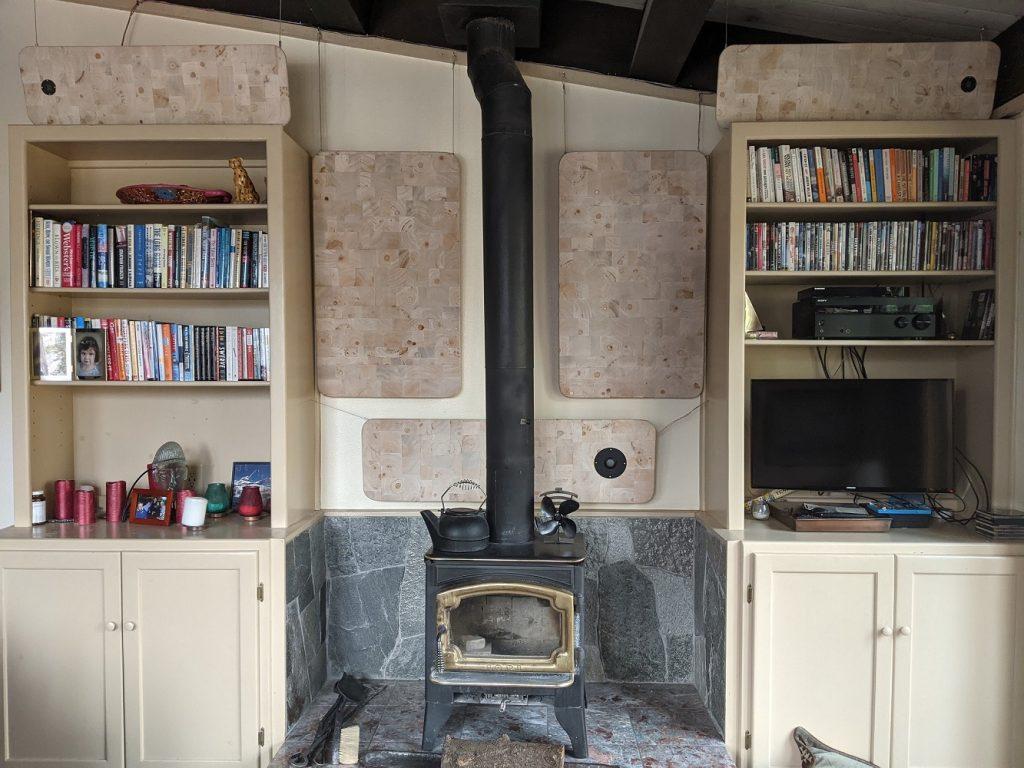

Check out the Alpine DML project in our Project Gallery to see how Bobby Kinstle used the DAEX30HSEF-4 exciter to add high quality audio that blends into the décor in his vacation getaway. (click on image below)
Price:$27.98 Part #295-241
