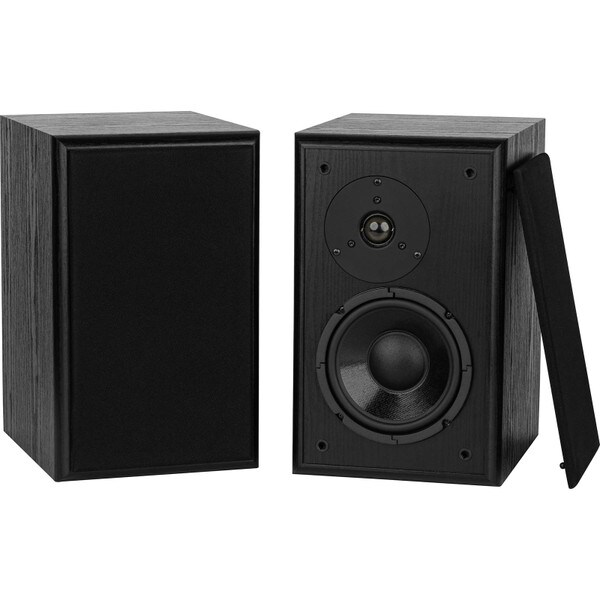

Dayton Audio BR-1 6-1/2" 2-Way Bookshelf Monitor Speaker Kit Pair
The Dayton Audio BR-1 2-way speaker kit gives you the ability to build your own high end speakers using Dayton Audio’s popular DC28F-8 1-1/8" silk dome tweeter and DC160-8 6-1/2" woofer. This kit delivers high-fidelity audio that is perfect for both casual and critical listening environments.
Features:
- Low cost, easy-to-build 2-way system for the speaker building beginner
- Includes everything you need to build one pair
- Perfect introduction to speaker design theory, construction, and soldering
- Fully finished enclosure allows this kit to be completed in a couple hours
Customer Comments:
"Excellent sound quality, for a reasonable price." -Terry B ⋆⋆⋆⋆⋆
" built this kit with my 15 year old grandson. We were both extremely pleased with the results" -Robert Jones G. ⋆⋆⋆⋆⋆
"Good bass for a compact speaker and overall sound is defined and clear. My neighbor came over and was looking for a set of larger speakers." -Mark J. ⋆⋆⋆⋆⋆
Customer Projects:

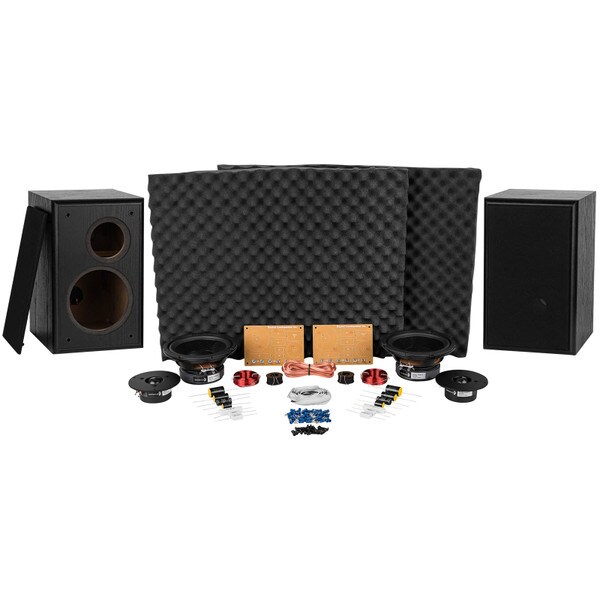

Kit Components:
| Part # | QTY. | Description |

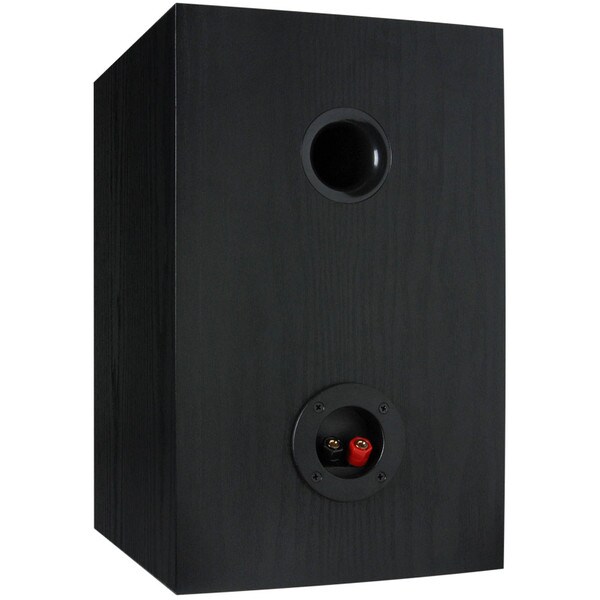

| 300-645 | 1 | Dayton Audio BR-1 Cabinet Pair |

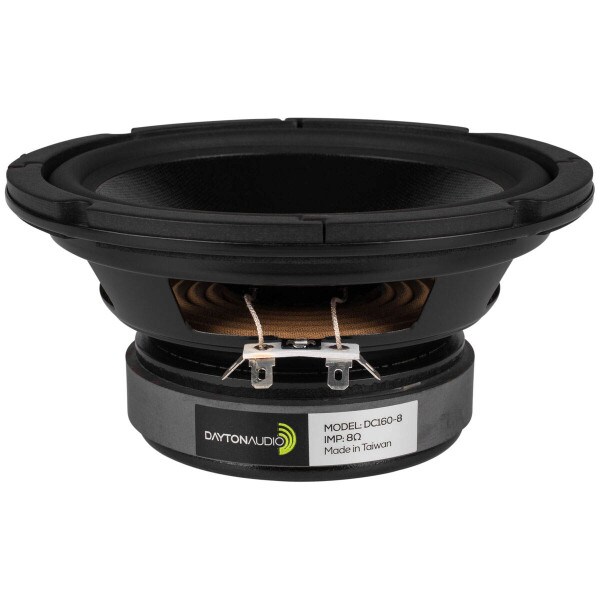

| 295-305 | 2 | Dayton Audio DC160-8 6-1/2” Classic Woofer |

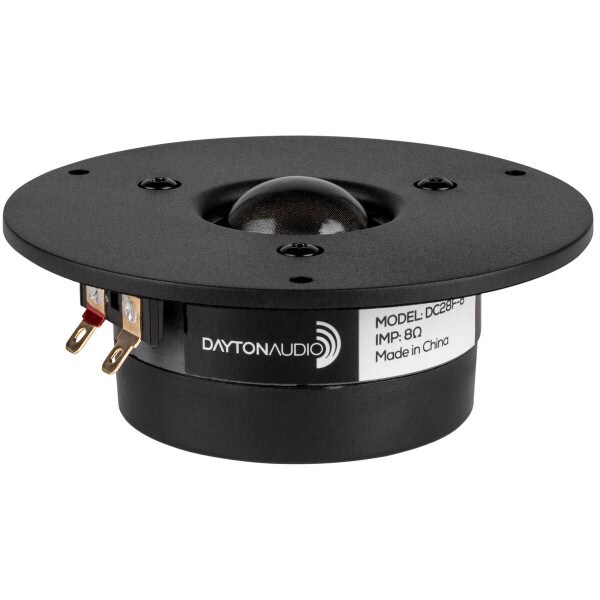

| 275-070 | 2 | Dayton Audio DC28F-8 1-1/8” Silk Dome Tweeter |
| BR-1XO | 2 | Dayton Audio DMPC-1.5 1.5uF 250V Polypropylene Capacitor |
| 7uF-100V | 2 | 47uF-100V Non-polarized Capacitors (C3) |
| DFFC-0.10 | 2 | Dayton Audio DFFC-0.10 0.10uF 400V By-Pass Capacitor |
| DNR-8.0 | 2 | Dayton Audio DNR-8.0 8 Ohm 10W Precision Audio Grade Resistor |
| DMPC-3.0 | 2 | Dayton Audio DMPC-3.0 3.0uF 250V Polypropylene Capacitor |
| 1.5mH IND | 2 | Dayton Audio 1.5mH 18 AWG Perfect Layer Inductor Crossover Coil |
| DMPC-6.2 | 2 | Dayton Audio DMPC-6.2 6.2uF 250V Polypropylene Capacitor |
| 4 Ohm 5W | 2 | 4 Ohm 5W Resistors |
| 6.2 Ohm 5W | 2 | 6.2 Ohm 5W Resistors |
| .4mH ACI | 2 | .4mH 20ga. Air Core Inductors |
| TCUP BR-1 | 2 | Terminal Cups |
| 6 Ga 6Ft | 1 | 6' long 16 Ga. Sound King Wire |
| .205" 16-14 | 24 | .205” (16-14) F-Disconnect 50 PCS |
| Foam | 2 | Acoustic Foam 1-1/2" 24"x18" |
| 8X34 | 8 | #8 x 3/4" Phillips Pan Head (for woofer) |
| 6X34 | 14 | #6 x 3/4" Phillips Pan Head (for tweeter & cup) |
| MANUAL | 1 | BR-1 Instruction Manual |
Assembly Instructions:
his system is offered in kit form and can be assembled in about two hours. The crossover requires assembly, so beginner soldering skills are necessary. We've included a tutorial that thoroughly explains the theory and design process, making this kit perfect for educational programs. Each kit includes everything needed to build one pair of speakers. Note: The BR-1 kit includes everything need to build a pair of bookshelf speakers, including: Drivers, crossover components and circuit boards, finished enclosures, damping materials, wire, screws, and solderless terminals.
Specifications:
- Power Handling: 100 watts max
- Frequency response: 43-18,000 Hz
- Impedance: 8 Ohm
- Cabinet Dimensions: 14-1/4" H x 8-5/8" W x 11" D
