Dayton Audio Extended Range High Output Transducer 44 x 32mm 15W 4 Ohm BCT-3

Dayton AudioPart # 295-269
Model: BCT-3

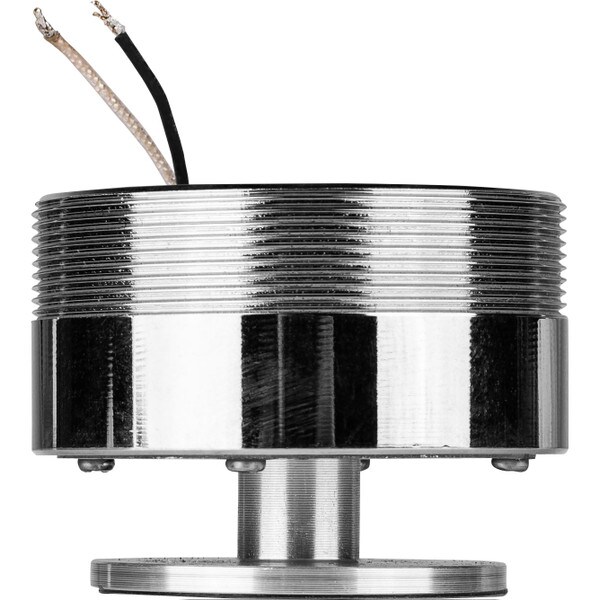

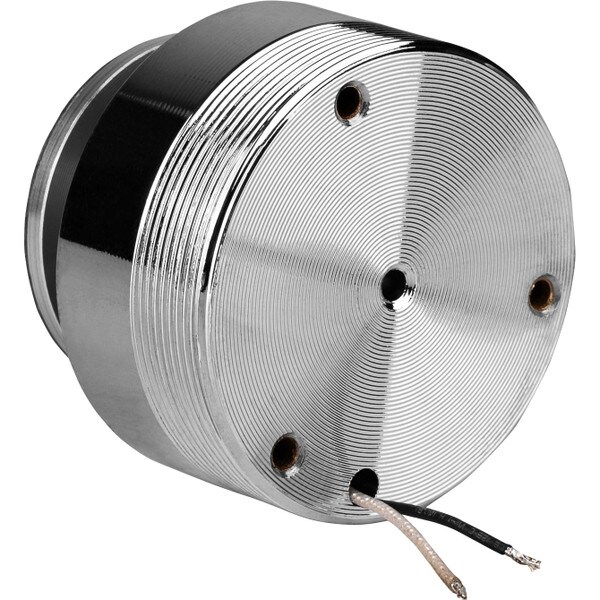

The BCT-3 bone conduction transducer from Dayton Audio can produce sound through direct vibration of the bones in the head. Also, this powerful exciter is capable of converting surfaces into speakers via vibration when placed on materials such as desks, walls, doors, and many other solid materials.

Key Features

  • Creates sound through vibration transmission
  • Turns nearly any surface into a speaker
  • Wide 300 to 20,000 Hz frequency response
  • Allows you to hear without disturbing others around you
Your Price: $24.98
MSRP: $35.99
Save $11.01 (31%)
Bulk Pricing
Quantity:Qty: 1-3 $24.98/ea
Quantity:Qty: 4+ $24.19/ea
431 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio Extended Range High Output Transducer 44 x 32mm 15W 4 Ohm BCT-3 is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Extended Range High Output Transducer 44 x 32mm 15W 4 Ohm BCT-3

Unlike conventional transducers that use moving air to produce sound around you, Dayton Audio BCT-3 bone conducting transducer converts the electrical signal into mechanical vibrations so clean, that the brain interprets the vibrating stimulus as excellent sound. Install this exciter to a solid surface, such as a molded headrest, and high-fidelity sound will appear from seemingly nowhere when your head touches it. Your ears are left free to remain aware of their surroundings, greatly increasing personal safety.

When used against materials such as cardboard, wood, steel, and plastics, the BCT-3 operates much like a surface exciter and is capable of moving mass to produce robust sound output; much like an invisible speaker! The BCT-3 is excellent for unique OEM sound applications and for the experimenter, where conventional speakers and exciters cannot be used due to size constraints.

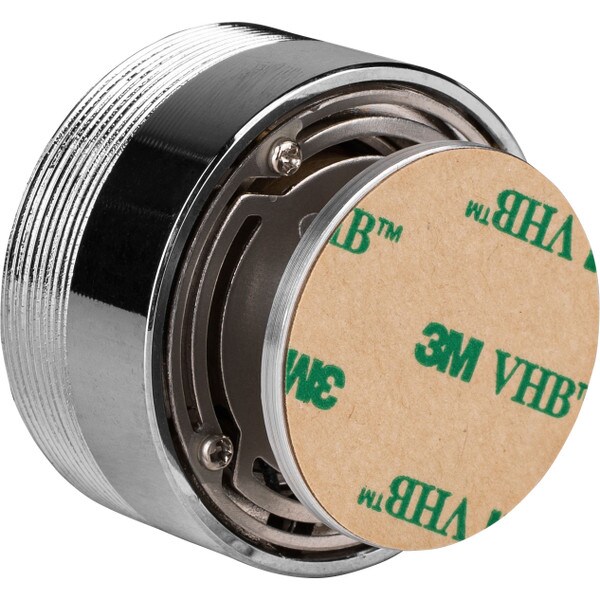

An adhesive backed removable mounting pad is included with the BCT-3 to make it easy to remove the motor assembly if needed.

Note: The frequency response is given when used as a bone conducting transducer. This will change when attached to a substrate, and different substrate materials will have different frequency responses.

Specifications: • Power handling: 15 watts RMS/30 watts max • Le: 0.34 mH • Impedance: 4 ohms • Re: 3.9 ohm • Frequency response: 300-20,000 Hz • Fs: 236 Hz • Dimensions (Dia. x H): 44 x 32 mm.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters White Paper.

Product Details

BrandDayton Audio
ModelBCT-3
Part Number295-269
UPC848791006371
Unit of MeasureEach
Weight0.5

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)15 Watts
Impedance4Ω

Specifications
