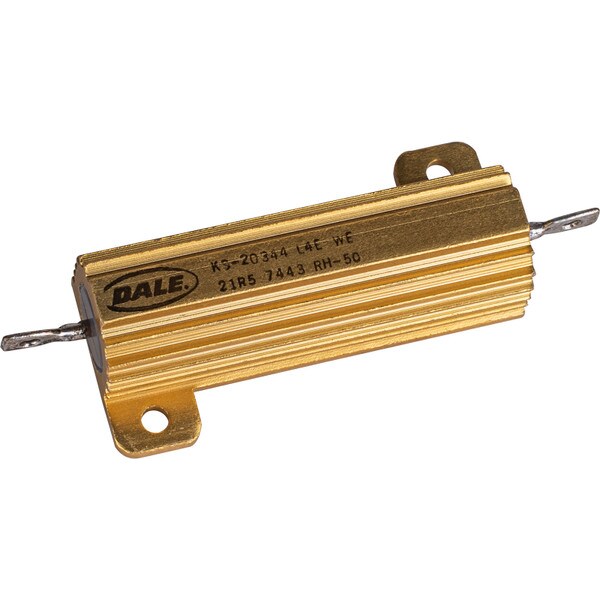

CLEARANCE Dale 22 Ohm 50W Wirewound Chassis Mount Resistor

AC Infinity
Part #029-2052

CLEARANCE Dale 22 Ohm 50W Wirewound Chassis Mount Resistor

AC Infinity
Part #029-2052
Dale 20 ohm 50W wirewound chassis mount resistor. The resistor is surrounded by thick metal for durability and heat displacement.
Key Features
  • Surrounded by thick metal for durability and heat displacement
  • Heavy duty metal 0.16" W x 0.25" L x 0.04" flat soldering terminals
  • Two screw holes for secure mounting

Overview

Dale 22 Ohm 50W Wirewound Chassis Mount Resistor

Dale 20 ohm 50W wirewound chassis mount resistor. The resistor is surrounded by thick metal for durability and heat displacement. Two 0.12" screw holes 1.75"apart for secure mounting. Screws sold separately. Two heavy duty metal 0.16" W x 0.25" L x 0.04" flat soldering terminals with 0.08" holes make it easy to install. The length without the solder terminals is 1.96" and it's 0.64" thick without the screw terminals.

Product Details

Part Number029-2052
UPC848864066035
Unit of MeasureEach
Weight0.05

Product Specifications

CompositionWirewound
Power Rating25W
Resistance22Ω
Tolerance1%
