DS18 EXL-X8.2D 8" Cast Frame DVC Subwoofer 2 Ohm

1 Question, 1 Answer or
DS18
Part #294-8082

DS18 EXL-X8.2D 8" Cast Frame DVC Subwoofer 2 Ohm

DS18
Part #294-8082
Model: EXL-X8.2D
1 Question, 1 Answer or

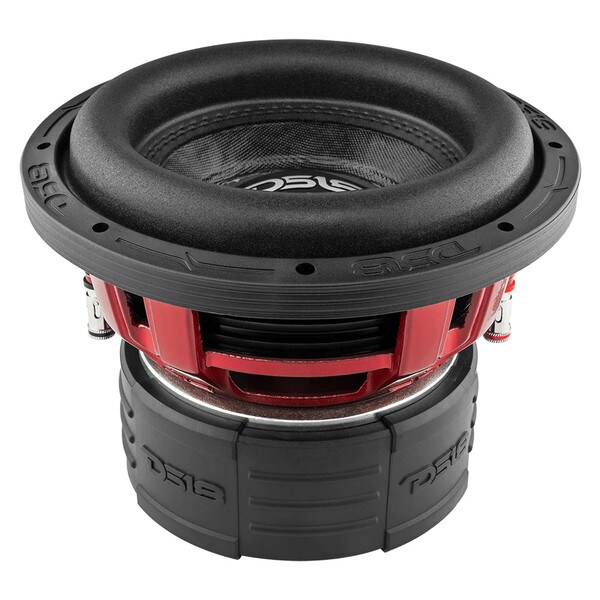

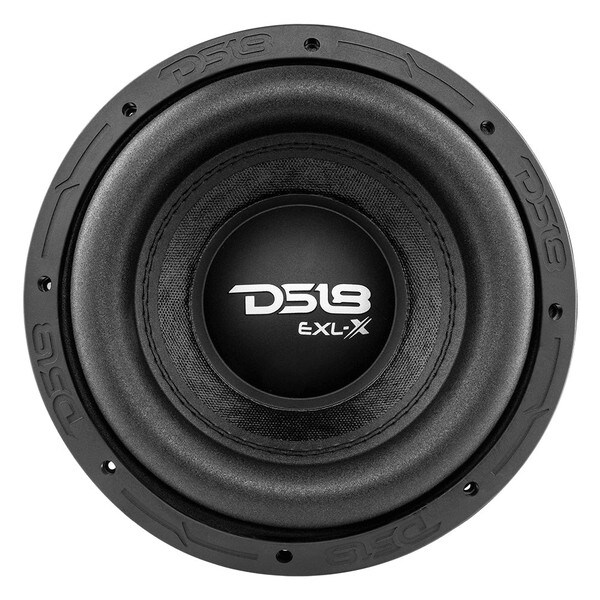

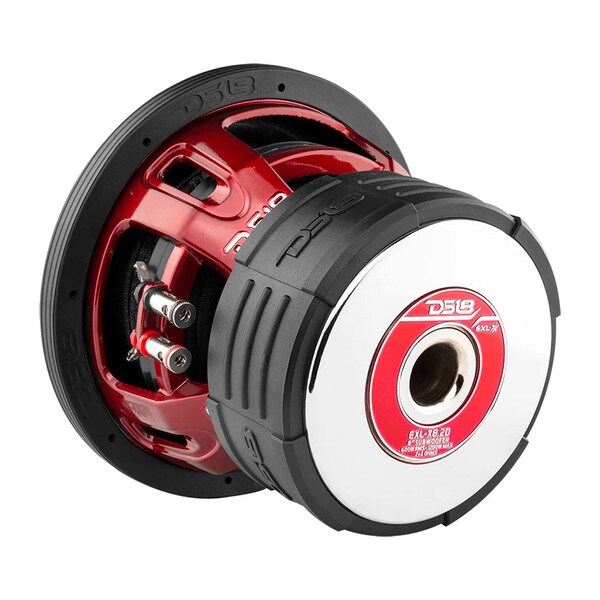

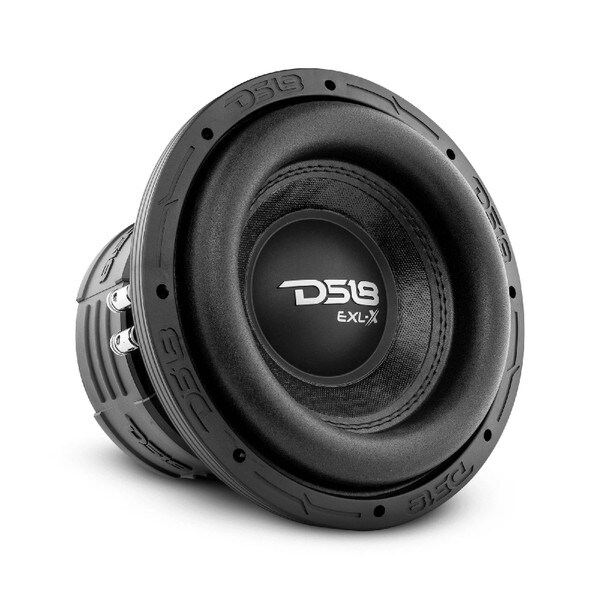

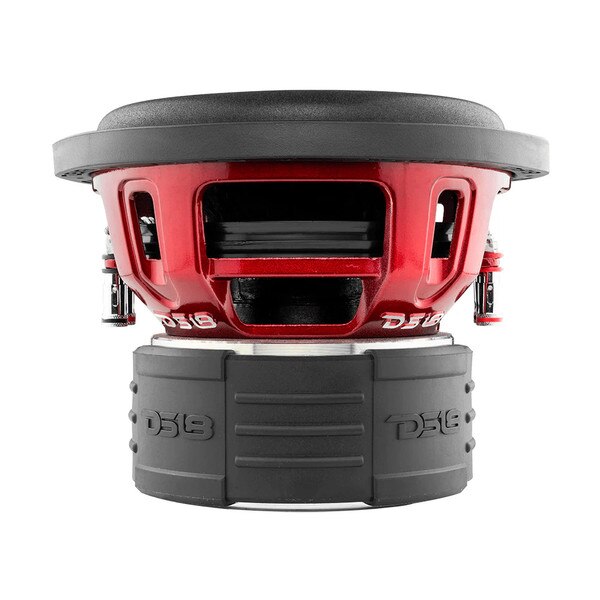

DS18 built the EXL-X8.2D 8" cast frame DVC subwoofer to produce maximum bass modest sizes systems. This small high excursion driver is capable of impressive displacement to produce more powerful low frequency output than you would expect from a driver this small. Featuring a reinforced paper cone, stitched foam surround, extensive venting, cast aluminum frame, and massive motor assembly, the EXL-X8.2D is a small subwoofer with big output capabilities.
Key Features
  • Small size and huge displacement to produce powerful bass from modest sized systems
  • Dual 2 ohm voice coils allow a variety of wiring options for use with various amplifiers
  • High power handling and impressive displacement for powerful low frequency output
  • Reinforced paper cone and stitched surround ensures reliability under high stress
  • Extensive venting enables the 2-1/2" 4-layer voice coils to handle up to 600 watts RMS
  • Spring loaded connectors for simple and reliable direct wire connection
Your Price: $189.96
+ FREE SHIPPING
Bulk Pricing

Out of Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

DS18 EXL-X8.2D 8" Cast Frame DVC Subwoofer 2 Ohm

When you need high output but want to save space, then the EXL-X8.2D 8" cast frame subwoofer from DS18 is the perfect solution. This compact subwoofer combines high power handling and excellent excursion capabilities to deliver remarkable output for its size. To improve reliability, the treated foam surround is stitched to the rigid reinforced paper cone eliminating a common failure point for many high excursion drivers. For high power handling, the 4-layer 2-1/2" voice coils are wound on an aluminum former and vented extensively to dissipate heat while lowering power compression. The strong motor assembly consists of dual stacked magnets allowing ample voice coil clearance for high excursion without bottoming out. Holding everything together is a solid cast aluminum frame built to handle the stress of the difficult car audio environment. This rugged construction makes the EXL-X8.2D a powerful compact subwoofer that will take serious use and abuse while continuing to provide incredible performance.

The design of the EXL-X8.2D makes it suitable for a variety of designs. A sealed enclosure or infinite baffle installation will produce accurate and controlled low end for systems designed for sound quality. Vented enclosures will result in more output for higher SPL. Dual 2 ohm voice coils allow for a variety of wiring configurations to achieve maximum power from your amplifier.

Note: Specifications shown are with the voice coils wired in series for a 4 ohm load.

Product Details

BrandDS18
ModelEXL-X8.2D
Part Number294-8082
UPC810005180962
Unit of MeasureEach
Weight16.5

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.87
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance
Frequency Response38 to 1,000Hz
Sensitivity89.11dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)70Hz
DC Resistance (Re)
Voice Coil Inductance (Le)11.21mH
Mechanical Q (Qms)6.852
Electromagnetic Q (Qes)0.99
Total Q (Qts)0.865
Compliance Equivalent Volume (Vas)0.88ft³
Mechanical Compliance of Suspension (Cms)0.032mm/N
BL Product (BL)17.02T·m
Diaphragm Mass Inc. Airload (Mms)163.24g
Maximum Linear Excursion (Xmax)12mm
Surface Area of Cone (Sd)235.6cm²

Materials of Construction

Cone MaterialPaper / Glass Fiber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.58"
Baffle Cutout Diameter7.36"
Depth5.51"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.63ft³
Sealed F381.8Hz
Vented Volume1ft³
Vented F359.7Hz
