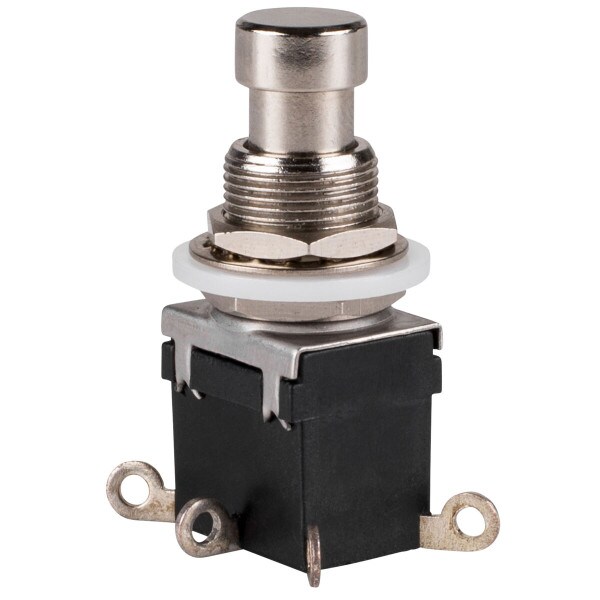

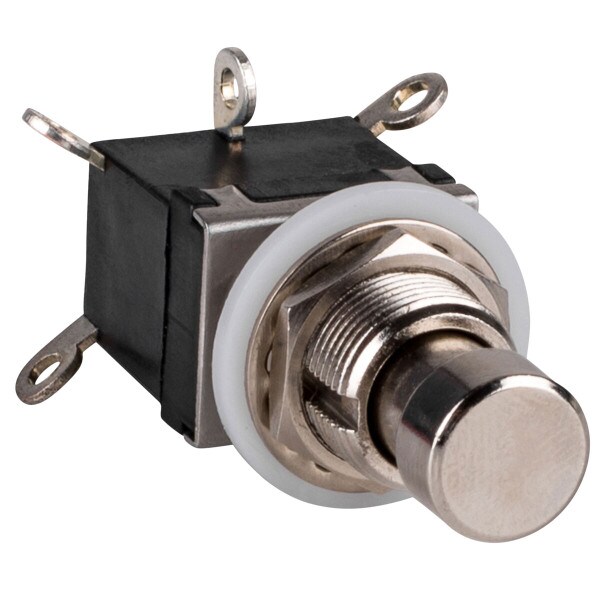

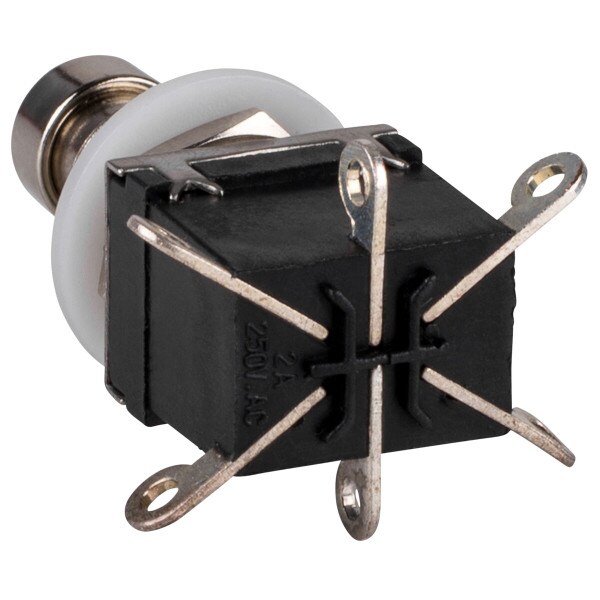

Parts Express DPDT Stomp Box Foot Switch 6 Pins Latching 2A 250V

Parts ExpressPart # 060-076
This heavy duty stomp box DPDT pushbutton switch has six side mount terminals. It mounts in skinnier boxes and can trigger multiple devices

Key Features

  • DPDT switching to control multiple actions
  • Six side mount terminals for flat mounting
  • Durable metal pushbutton
Your Price: $4.09
MSRP: $5.99
Save $1.90 (32%)
Bulk Pricing
Quantity:Qty: 1-9 $4.09/ea
Quantity:Qty: 10+ $3.74/ea
10 In Stock
Get Notified When Available

We'll send you an email when Parts Express DPDT Stomp Box Foot Switch 6 Pins Latching 2A 250V is back in stock or available for preorder.

Order in the next 1 hr 40 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Parts Express DPDT Stomp Box Foot Switch 6 Pins Latching 2A 250V

This DPDT switch's latching action can be used for on/off or on/on triggering for multiple devices through six horizontal mounted soldering terminals. Two side mounted isolated power input terminals switch on-and-off between their own 2 output terminals. The side mount soldering terminals keep the wires from getting pinched when stepping on the push button. Side mount terminals also save space so that you can mount the switch in a skinner box. The heavy duty metal push button holds up to continuous stomping action without snapping off.

Specifications: Current rating: 2A 250 VAC • Switch body without terminals: 0.7" W x 0.5" D x 0.7" H • Terminal length from body: 0.25" L x 0.2" H x 0.04" D • Shaft size without button: 0.5" L x 0.5" W.

Product Details

BrandParts Express
Part Number060-076
UPC848864026107
Unit of MeasureEach
Weight0.05

Product Specifications

CircuitDPDT
IlluminationNon-Illuminated
