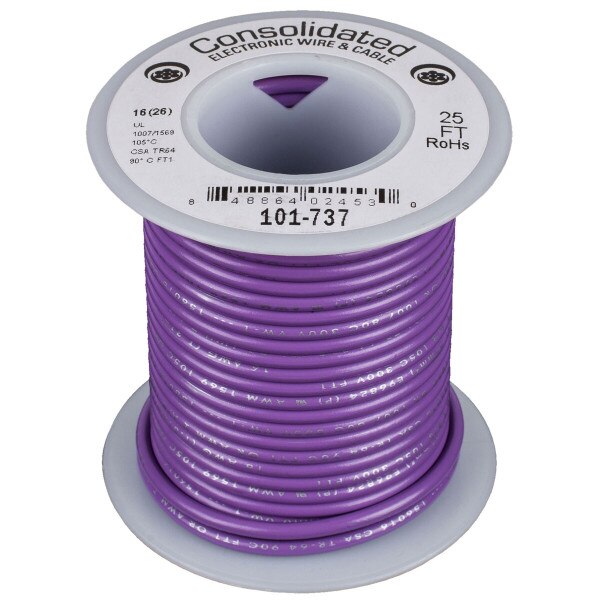

Consolidated Stranded 16 AWG Hook-Up Wire 25 ft. Violet UL Rated
$9.98
Out of Stock
Ships next business day. Details
Free Shipping available on orders over in the US. Details
60 Day No Hassle Return PolicyOverview
Consolidated stranded 16 AWG violet hook-up wire for point-to-point wiring is perfect for internal, 300V, point-to-point wiring of electrical and electronic equipment, meters, computers, business machines, appliances and control panels.
Specifications: • Length: 25 ft. spool • Conductor gauge: 16 AWG • Conductor: Stranded tinned copper • Strand count: 26 x 30 gauge • Insulation: Color-coded 0.016" PVC • UL style: 1007/1569 • CSA: TR-64 90° C • Passes UL VW-1.S vertical flame test • Operating temp: -40° ~ +105° C • OSHA acceptable.
