Ciare HWG130 5" Woofer 8 Ohm

CiarePart # 293-135
Model: HWG130
3 Questions, 13 Answers or
The Ciare HWG130 5" Woofer delivers exceptional mid-bass performance with low distortion, making it ideal for high-quality speaker systems. Its compact size and efficient design allow for integration into various audio setups, providing tight, impactful bass response.

Key Features

  • 5" woofer delivers rich, detailed mid-bass frequencies for a balanced sound
  • Lightweight yet durable design ensures long-lasting performance and easy installation
  • High-quality materials minimize distortion, ensuring clean, accurate sound
  • Ideal for home or car audio applications requiring precise bass control
  • Smooth frequency response ensures balanced audio across a wide range of music genres
Your Price: $154.82
+ FREE SHIPPING
MSRP: $206.42
Save $51.60 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Ciare HWG130 5" Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare HWG130 5" Woofer 8 Ohm

The Ciare HWG130 5" Woofer is designed to provide outstanding low-frequency performance in a compact form factor. Whether you’re building a speaker system for home audio or your car stereo, this 5" woofer delivers the deep, resonant bass that brings music and movies to life. With its smooth frequency response, the HWG130 offers balanced audio reproduction, making it versatile enough for a wide range of applications and genres.

Despite its small size, the HWG130 is built to handle demanding audio conditions. Its high-quality materials and advanced engineering minimize distortion, ensuring that even at higher volumes, the sound remains clean and accurate. This makes it ideal for applications where clarity and precision are as important as powerful output. The woofer's lightweight construction also allows for quicker sound reproduction, enhancing the responsiveness of the overall audio system.

In addition to its performance, the HWG130 is easy to integrate into compact speaker designs. Its small footprint makes it a great choice for systems where space is at a premium, yet it still manages to deliver the deep, powerful sound that larger woofers are known for. Whether you are enhancing a home theater system or developing car audio solutions, the Ciare HWG130 offers the performance and reliability needed for high-quality audio.

Specifications

  • Nominal Diameter: 130 mm (5 in)
  • Nominal Power Handling: 130 W
  • Sensitivity: 88 dB
  • Voice Coil Diameter: 38 mm (1.5 in)
  • Winding Depth: 17 mm (0.67 in)
  • Nominal Impedance: 8 Ohms
  • Continuous Power Handling: 260 W
  • Frequency Range: 45 Hz - 7000 Hz
  • Former Material: Kapton
  • Magnetic Gap Depth: 8 mm (0.31 in)

Parameters

  • Fs: 40 Hz
  • Qes: 0.3
  • Qts: 0.28
  • Sd: 87 cm² (13.49 sq²)
  • Xmax: 6.5 mm (0.26 in)
  • Bl: 7.8 Tm
  • d: 105 mm (4.13 in)
  • Re: 5.4 Ω
  • Qms: 4.8
  • Vas: 12.5 dm³ (0.44 ft³)
  • η0: 0.3 %
  • Mms: 13.1 g
  • Le: 0.7 mH
  • EBP: 133 Hz

Design

  • Surround Shape: Rubber
  • Recommended Enclosure: 7 dm³ (0.247 ft³)
  • Suspension: Cotton fabric
  • Cone Shape: Exponential
  • Recommended Loading: Vented Box
  • Cone Material: Doped cellulose fiber

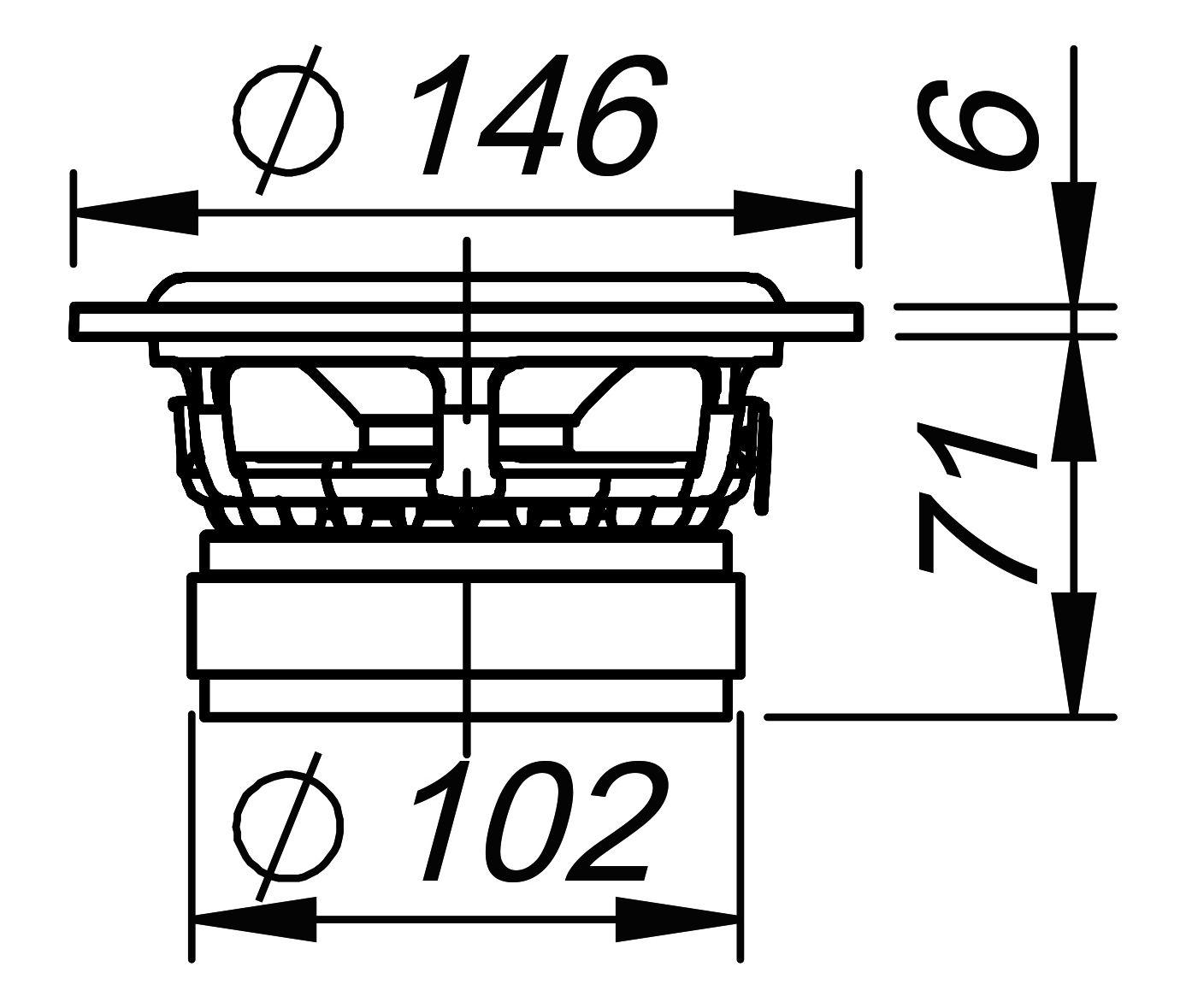

Mounting and Shipping Info

  • Overall Diameter: 146 mm (5.75 in)
  • Baffle Cutout Diameter: 117 mm (4.61 in)
  • Flange and Gasket Thickness: 6 mm (0.24 in)
  • Bolt Quantity: 6 pcs
  • Bolt Circle Diameter: 135.5 mm (5.33 in)
  • Depth: 77 mm (3.03 in)
  • Net Weight: 1.7 kg (3.74 lbs.)
  • Basket Material: Aluminum
  • Bolt Diameter: 4.5 mm (0.18 in)

Product Details

BrandCiare
ModelHWG130
Part Number293-135
Unit of MeasureEach
Weight4

Product Specifications

Nominal Diameter5"
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance8Ω
Frequency Response45 to 7,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)40Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.7mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.28
Compliance Equivalent Volume (Vas)0.44ft³
BL Product (BL)7.8T·m
Diaphragm Mass Inc. Airload (Mms)13.1g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)87cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.75"
Baffle Cutout Diameter4.61"
Depth3.03"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0501ft³
Sealed F3120.5Hz
Vented Volume0.115ft³
Vented F373.8Hz
