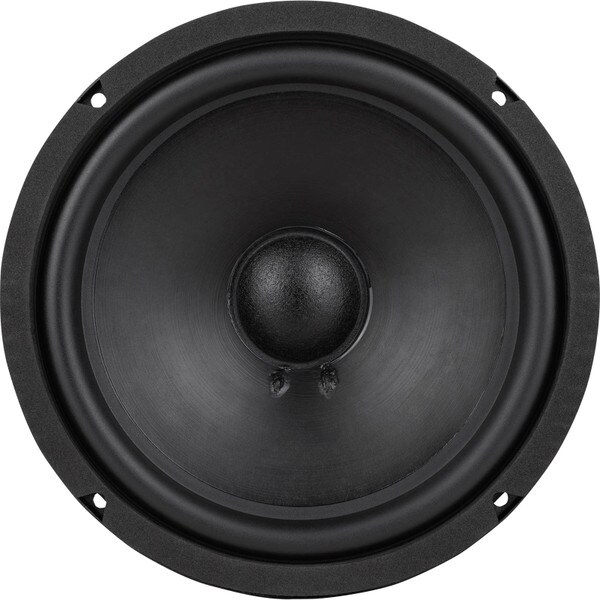

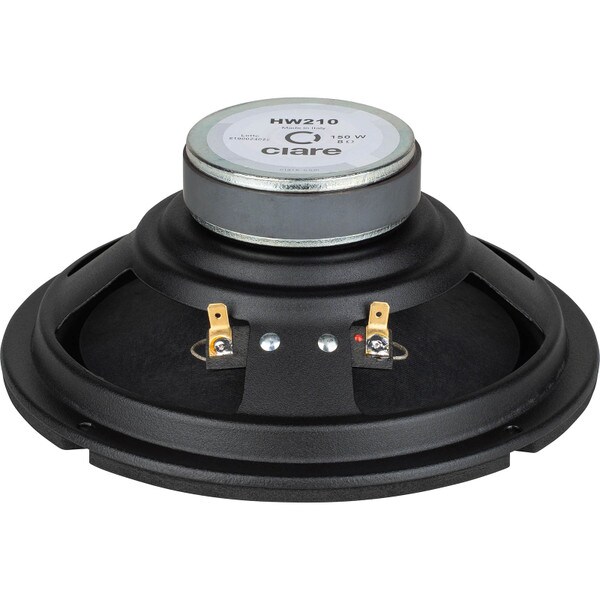

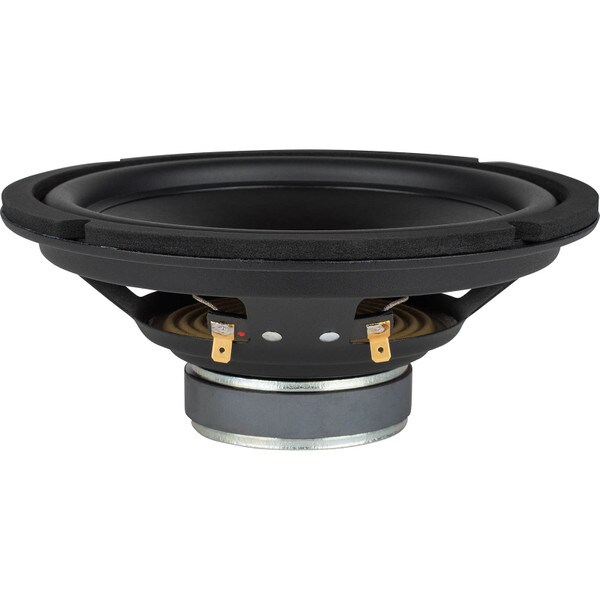

Ciare HW210 8" Woofer 8 Ohm

CiarePart # 293-138
Model: HW210
8 Questions, 18 Answers or

The sleek and modern design of the Ciare HW210 makes it a perfect complement to any home or professional sound system. Its understated appearance and classic styling make it a versatile choice for any audio project, whether you're a DIY enthusiast or a professional sound engineer.

Key Features

  • Treated paper cone for naturally damped smooth response
  • Rubber surround for clean extended excursion capabilities
  • 90 dB sensitivity requiring minimal power
Your Price: $60.27
MSRP: $80.36
Save $20.09 (25%)
Bulk Pricing
4 In Stock
Get Notified When Available

We'll send you an email when Ciare HW210 8" Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare HW210 8" Woofer 8 Ohm

The Ciare HW210 8" Woofer is a high-performance driver designed to deliver excellent sound quality and reliability. This woofer features a large 8" cone made from a durable paper material that provides a smooth and natural sound with great clarity and detail.

With its high power handling capabilities and efficient design, the HW210 is perfect for use in a wide range of audio systems, including home theater setups, hi-fi speakers, and professional sound systems. Its versatile performance makes it suitable for use in small to medium-sized rooms, as well as in larger venues.

The HW210's robust construction and advanced design ensure that it can handle even the most demanding audio applications, delivering consistent and reliable performance over time. Its lightweight and compact size also make it easy to install and integrate into any audio system.

If you're looking for a high-quality and reliable woofer that will take your audio experience to the next level, the Ciare HW210 8" Woofer is the perfect choice. With its exceptional sound quality, power handling capabilities, and versatile performance, it's the ideal solution for any audio project that demands the very best.

Product Details

BrandCiare
ModelHW210
Part Number293-138
UPC848864073170
Unit of MeasureEach
Weight2.45

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.64
Power Handling (RMS)60 Watts
Power Handling (MAX)150 Watts
Impedance8Ω
Frequency Response30 to 6,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)41Hz
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)0.55mH
Mechanical Q (Qms)4.4
Electromagnetic Q (Qes)1.04
Total Q (Qts)0.84
Compliance Equivalent Volume (Vas)2.03ft³
BL Product (BL)5.18T·m
Diaphragm Mass Inc. Airload (Mms)18.09g
Maximum Linear Excursion (Xmax)5.3mm
Surface Area of Cone (Sd)222cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.09"
Baffle Cutout Diameter7.2"
Depth3.17"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.75ft³
Sealed F356.7Hz
